Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TIMING

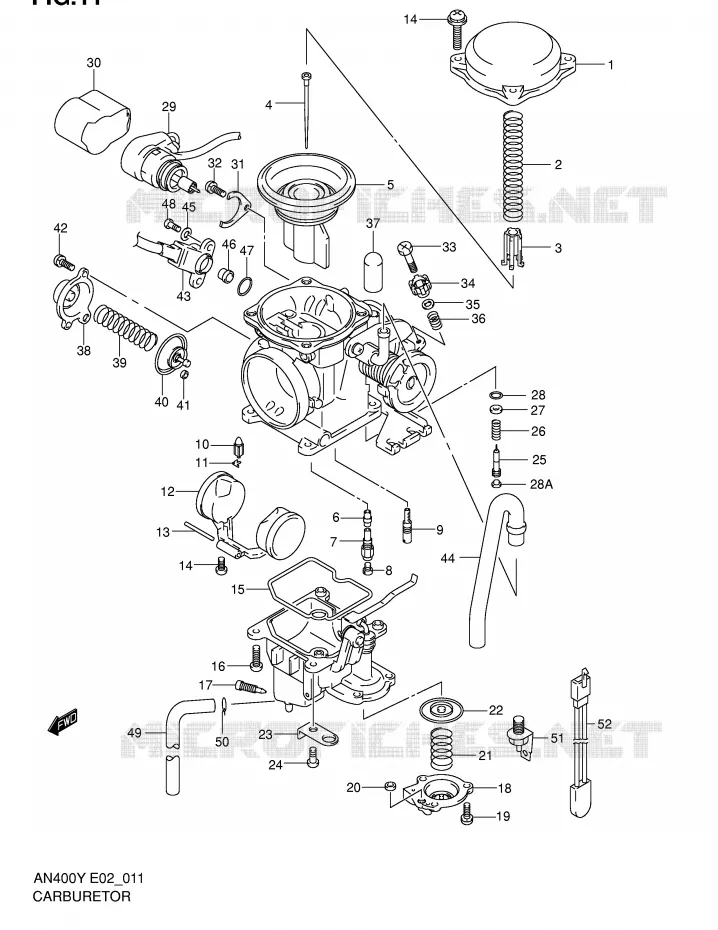

CARBURETOR (MODEL X / Y) FOR SUZUKI BURGMAN 400 2000

CARBURETOR (MODEL K1 / K2)

TOP

13502-15F00-000 1350215F00000

Not available

SPRING

13503-15F00-000 1350315F00000

Not available

SEAT

13504-15F00-000 1350415F00000

$9,97

Unit Price

NEEDLE, JET (N8CA)

13383-15F00-000 1338315F00000

Not available

NEEDLE, JET (N8CC)

13383-15F50-000 1338315F50000

Not available

PISTON, VACUUM

13501-15F00-000 1350115F00000

$210,97

Unit Price

JET, NEEDLE

13341-15F00-000 1334115F00000

Not available

HOLDER

13342-15F00-000 1334215F00000

Not available

JET, MAIN (108)

09491-21032-000 0949121032000

Not available

JET, PILOT(38)
JET, SLOW (38)

09492-38005-000 0949238005000

$33,97

Unit Price

VALVE ASSY, NEEDLE

13370-26E00-000 1337026E00000

$25,97

Unit Price

CLIP

13375-26E00-000 1337526E00000

$8,97

Unit Price

FLOAT ASSY
FLOAT

13250-26E00-000 1325026E00000

$91,97

Unit Price

PIN, FLOAT

13254-26E00-000 1325426E00000

$5,97

Unit Price

SCREW

02112-04163-000

02112-0416A-000

$2,97

Unit Price

PACKING

13251-15F00-000 1325115F00000

Not available

SCREW

13602-26E10-000 1360226E10000

$10,97

Unit Price

PLUG, DRAIN
DRAIN, PLUG

13247-26E00-000 1324726E00000

$26,97

Unit Price

COVER

13488-15F00-000 1348815F00000

Not available

SCREW

13601-15F20-000 1360115F20000

$4,97

Unit Price

U RING

13497-14F00-000

13497-14F01-000

$5,97

Unit Price

SPRING

13494-15F00-000 1349415F00000

$5,97

Unit Price

DIAPHRAGM

13491-15F00-000 1349115F00000

Not available

BINDER

13693-15F00-000 1369315F00000

Not available

SCREW

13601-15F00-000 1360115F00000

$6,97

Unit Price

SCREW, ADJUST (1, 3/4)

13269-15F00-000 1326915F00000

Not available

SCREW, ADJUST (2, 1/2)

13269-15F30-000 1326915F30000

Not available

SPRING

13268-26E00-000 1326826E00000

$9,97

Unit Price

WASHER

13291-26E00-000 1329126E00000

$4,97

Unit Price

O RING

13295-26E00-000 1329526E00000

$6,97

Unit Price

28A

CAP

13281-26E00-000 1328126E00000

$10,97

Unit Price

ELEMENT ASSY, THERMO

13400-15F00-000 1340015F00000

Not available

DISCONTINUE
COVER

13431-15F00-000 1343115F00000

Not available

PLATE

13428-06F30-000 1342806F30000

$5,97

Unit Price

SCREW

02112-14087-000 0211214087000

$2,97

Unit Price

SCREW, STOP

13267-14F00-000 1326714F00000

Not available

HOLDER, ADJUST

13264-14F00-000 1326414F00000

Not available

WASHER

13572-14F00-000 1357214F00000

$3,97

Unit Price

SPRING

13271-26E10-000 1327126E10000

$8,97

Unit Price

DISCONTINUE
CAP

13508-26E00-000

Not available

COVER

13484-15F00-000 1348415F00000

$36,97

Unit Price

SPRING

13481-15F00-000 1348115F00000

$7,97

Unit Price

DIAPHRAGM

13480-15F00-000 1348015F00000

Not available

U RING

13486-15F00-000

13486-15F01-000

$4,97

Unit Price

SCREW

13601-15F10-000 1360115F10000

$6,97

Unit Price

SENSOR ASSY, THROTTLE

13580-15F00-000 1358015F00000

Not available

HOSE, AIR VENT

13686-15F00-000 1368615F00000

Not available

WASHER, THROTTLE SENSOR SCREW

13615-15F00-000 1361515F00000

Not available

DISCONTINUE
COLLAR

13574-03F00-000 1357403F00000

Not available

O RING

13575-03F00-000 1357503F00000

$6,97

Unit Price

SCREW, THROTTLE SENSOR

13605-15F00-000 1360515F00000

Not available

PIPE, RUBBER

13684-15F00-000 1368415F00000

Not available

CLIP

09401-07101-000 0940107101000

Not available

HEATER ASSY, CARBURETOR (25W)

13650-20E00-000

13650-34F00-000

THERMO SWITCH, CARB HEATER
THERMO SWITCH, CARBURETOR HEATER

13655-16F00-000 1365516F00000

$67,97

Unit Price

THERMO SWITCH, CARB HEATER
THERMO SWITCH, CARBURETOR HEATER

13655-25E00-000 1365525E00000

$75,97

Unit Price

99x

CARBURETOR ASSY

13200-15F10-000 1320015F10000

Not available

99x

CARBURETOR ASSY

13200-15F20-000 1320015F20000

Not available

99x

CARBURETOR ASSY

13200-15F30-000 1320015F30000

Not available

99x

CARBURETOR ASSY

13200-15F40-000 1320015F40000

Not available

99x

CARBURETOR ASSY

13200-15F50-000 1320015F50000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR (MODEL X/Y) of your Suzuki BURGMAN 400 of BURGMAN. Let us know if you have any questions.
