CRANKSHAFT

CARBURETOR FOR SUZUKI PV 50 1987

CARBURETOR (E16)

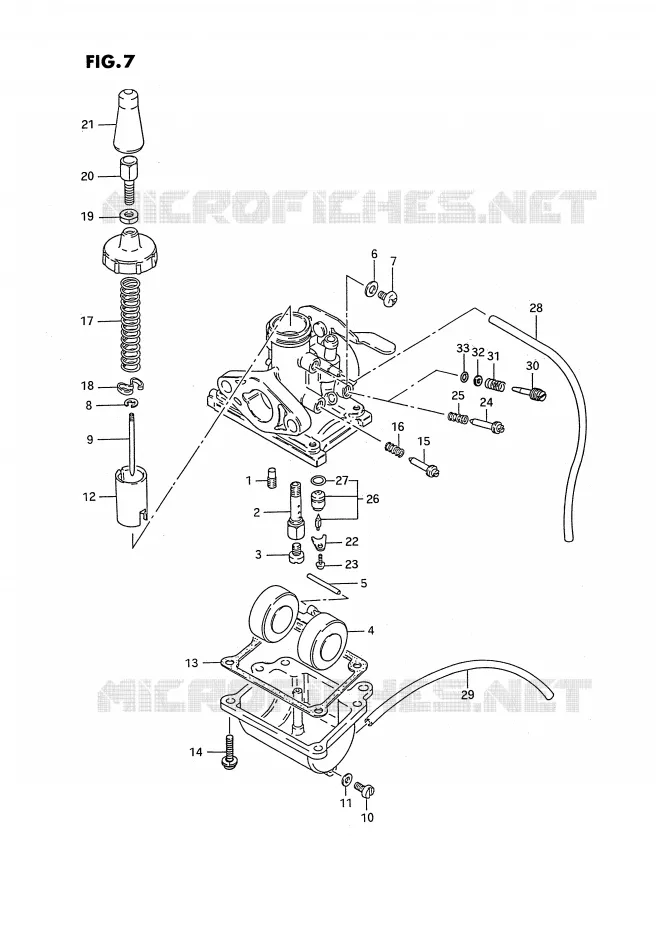

CARBURETOR Suzuki MOTO 50 PV 1987 PV50H(E15)
1
JET, PILOT (15)

09492-15002-000  

09492-15015-000
 0949215002000

Unit Price

1
JET, PILOT (20)

09492-20006-000   0949220006000

0949220006000
Not available
2
JET, NEEDLE (E-0)

09494-00238-000   0949400238000

0949400238000
Not available
2
JET, NEEDLE (E-7)

09494-00258-000   0949400258000

0949400258000
Not available
2
JET, NEEDLE (E-2)

09494-00728-000   0949400728000

0949400728000
Not available
3
JET, MAIN (57.5)

09491-57002-000   0949157002000

0949157002000
Not available
3
JET, MAIN (57.5)

09491-57006-000   0949157006000

0949157006000
Not available
3
JET, MAIN (72.5)
JET, MAIN (72.5)

09491-72010-000   0949172010000

0949172010000
Not available
3
JET, MAIN (77.5)

09491-77004-000   0949177004000

0949177004000
Not available
4
FLOAT

13250-02500-000   1325002500000

1325002500000

Unit Price

4
DISCONTINUE
FLOAT

13252-46110-000   1325246110000

1325246110000
Not available
5
PIN, FLOAT
PIN

13254-20010-000   1325420010000

1325420010000

Unit Price

6
GASKET, DRAIN PLUG
GASKET

13523-46110-000   1352346110000

1352346110000

Unit Price

7
SCREW

02112-05066-000  

02112-0506B-000
 0211205066000

Unit Price

8
CLIP, NEEDLE

13394-12110-000  

13394-40D00-000
 1339412110000

Unit Price

9
DISCONTINUE<br />NEEDLE, JET (3E2-3)
DISCONTINUE
NEEDLE, JET (3E2-3)

13383-04110-000   1338304110000

1338304110000
Not available
9
NEEDLE, JET (3I14-2)

13383-17230-000   1338317230000

1338317230000
Not available
9
NEEDLE, JET (3D16-2)

13383-46790-000   1338346790000

1338346790000
Not available
10
PLUG<br />PLUG, DRAIN
PLUG
PLUG, DRAIN

13247-05010-000   1324705010000

1324705010000

Unit Price

11
GASKET,DRAIN,PLUG<br />GASKET
GASKET, DRAIN, PLUG
GASKET

13249-05010-000   1324905010000

1324905010000

Unit Price

12
VALVE, THROTTLE (CA:2.0)

13551-17200-000   1355117200000

1355117200000
Not available
12
VALVE, THROTTLE (CA:2.0)

13551-46180-000   1355146180000

1355146180000
Not available
13
GASKET

13251-02410-000   1325102410000

1325102410000

Unit Price

13
GASKET, FLOAT CAHMBER
GASKET

13251-46110-000   1325146110000

1325146110000

Unit Price

14
SCREW
SCREW

13601-04148-000   1360104148000

1360104148000

Unit Price

15
SCREW, THROTTLE STOP

13267-01010-000   1326701010000

1326701010000

Unit Price

16
SPRING
SPRING

13268-01010-000   1326801010000

1326801010000

Unit Price

17
SPRING

13573-46710-000   1357346710000

1357346710000
Not available
18
DISCONTINUE<br />SEAT
DISCONTINUE
SEAT

13581-07910-000   1358107910000

1358107910000
Not available
19
NUT
NUT

13661-16600-000   1366116600000

1366116600000

Unit Price

20
ADJUSTER, CABLE
ADJUSTER

13577-22600-000   1357722600000

1357722600000

Unit Price

20
ADJUSTER,CABLE<br />ADJUSTER
ADJUSTER, CABLE
ADJUSTER

13577-48110-000   1357748110000

1357748110000

Unit Price

21
CAP

13681-16600-000  

13681-16601-000
 1368116600000

Unit Price

21
CAP,CABLE ADJUSTER<br />BOOT
CAP, CABLE ADJUSTER
BOOT

13681-33010-000   1368133010000

1368133010000

Unit Price

22
PLATE, NEEDLE VALVE FITTING
PLATE

13373-46710-000   1337346710000

1337346710000

Unit Price

23
SCREW

02112-03083-000  

02112-0308A-000
 0211203083000

Unit Price

24
SCREW, AIR
SCREW, AIR (2.0)

13269-04010-000   1326904010000

1326904010000

Unit Price

25
SPRING
SPRING

13268-01010-000   1326801010000

1326801010000

Unit Price

26
DISCONTINUE
VALVE ASSY, NEEDLE

13370-46710-000   1337046710000

1337046710000
Not available
27
O RING
O RING

13374-46710-000   1337446710000

1337446710000

Unit Price

28
HOSE

13683-36A00-000  

09352-30504-600
 1368336A00000

Unit Price

28
HOSE, AIR VENT (3.5X6.5X350)

13683-05400-000   1368305400000

1368305400000
Not available
29
HOSE(3X5X650)<br />HOSE, OVER FLOW (3X5X160)
HOSE(3X5X650)
HOSE, OVER FLOW (3X5X160)

13684-40A00-000   1368440A00000

1368440A00000

Unit Price

30
SCREW, AIR (1 3/4)

13269-17220-000   1326917220000

1326917220000
Not available
31
SPRING

13494-09410-000   1349409410000

1349409410000

Unit Price

32
WASHER
WASHER

13606-47A00-000   1360647A00000

1360647A00000

Unit Price

33
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

99x
CARBURETOR ASSY

13200-17200-000   1320017200000

1320017200000
Not available
99x
CARBURETOR ASSY

13200-17210-000   1320017210000

1320017210000
Not available
99x
CARBURETOR ASSY

13200-17220-000   1320017220000

1320017220000
Not available
99x
CARBURETOR ASSY

13200-17230-000   1320017230000

1320017230000
Not available
99x
CARBURETOR ASSY

13200-17250-000   1320017250000

1320017250000
Not available
99x
CARBURETOR ASSY

13200-17260-000   1320017260000

1320017260000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki of PV. Let us know if you have any questions.

Genuine parts for Suzuki 50 PV 1987
