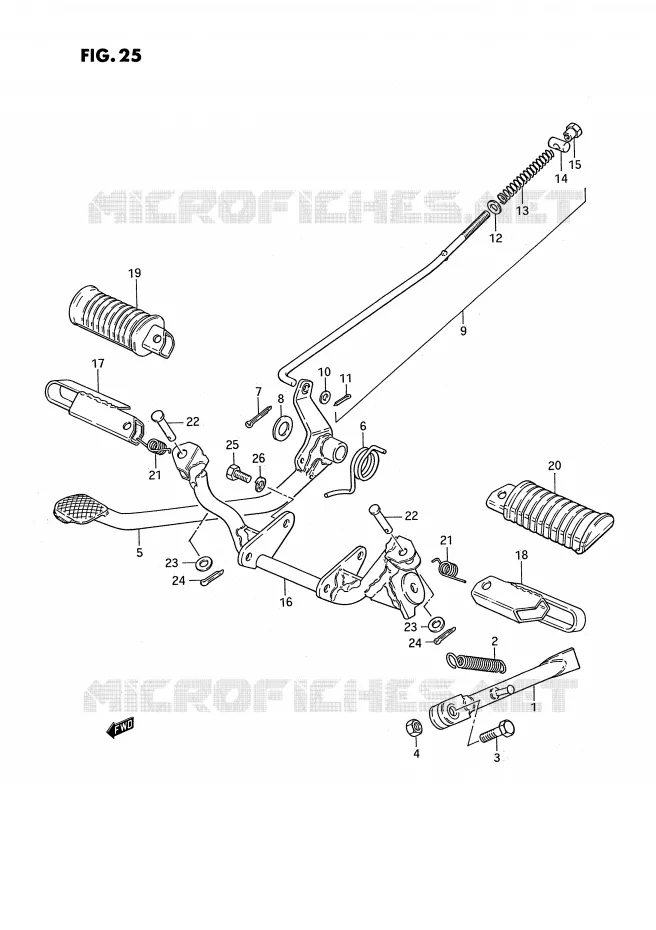

STAND - REAR BRAKE FOR SUZUKI PV 50 1987

FRONT FORK

STAND, PROP

42310-17200-000 4231017200000

Not available

STAND, PROP

42310-17210-000 4231017210000

Not available

STAND, PROP

42310-17220-000 4231017220000

Not available

STAND, PROP

42310-43001-000 4231043001000

Not available

SPRING

09443-14015-000 0944314015000

$4,97

Unit Price

SPRING

09443-14017-000 0944314017000

$10,97

Unit Price

BOLT

09100-10007-000

09100-10287-000

$5,97

Unit Price

NUT

08310-00103-000

08310-0010B-000

$3,97

Unit Price

NUT

08310-12108-000

08310-00107-000

$3,97

Unit Price

PEDAL, BRAKE

43110-17200-000 4311017200000

Not available

PEDAL, BRAKE

43110-17201-000 4311017201000

Not available

SPRING

09448-31013-000 0944831013000

Not available

04111-30308-000

04111-3030A-000

$2,97

Unit Price

PEDAL LOCK WASHER
WASHER

09160-15002-000 0916015002000

$2,97

Unit Price

ROD ASSY, REAR BRAKE

43300-17200-000 4330017200000

Not available

WASHER

08322-01053-000

08322-0105B-000

$3,97

Unit Price

WASHER

08322-21057-000

08322-01057-000

$2,97

Unit Price

04111-20208-000

04111-2020A-000

$1,97

Unit Price

WASHER

08322-01063-000

08322-0106A-000

$2,97

Unit Price

BRK ROD ADJ SPRING
SPRING

09440-09004-000 0944009004000

$3,97

Unit Price

BRAKE CAM LEVER PIN
PIN

09209-11002-000 0920911002000

$3,97

Unit Price

09150-06010
.NUT, ADJUSTER

09150-06009-000

Not available

BAR, FRONT FOOTREST

43510-17200-000 4351017200000

Not available

BAR, FRONT FOOTREST

43510-17210-000 4351017210000

Not available

BAR, FRONT FOOTREST

43510-17220-000 4351017220000

Not available

FOOTREST, FR, R
FOOTREST, RH

43550-46000-019 4355046000019

$21,97

Unit Price

FOOTREST, FR, L
FOOTREST, LH

43560-46000-019 4356046000019

$21,97

Unit Price

RUBBER, PILLION FOOTREST, RH

43550-49002-000

43550-37310-000

$53,97

Unit Price

RUBBER, PILLION FOOTREST, LH

43560-49002-000

43560-37310-000

$51,97

Unit Price

FR FOOTREST SPRING
SPRING

09448-14012-000 0944814012000

$5,97

Unit Price

FITTING PIN
PIN

09200-08002-000 0920008002000

$2,97

Unit Price

WASHER

08322-11088-000

08322-01087-000

$2,97

Unit Price

08322-0108A
WASHER

08322-01083-000

Not available

04111-20208-000

04111-2020A-000

$1,97

Unit Price

BOLT

01107-08167-000

01500-0816B-000

$4,97

Unit Price

BOLT

01570-08163-000

01570-0816A-000

$4,97

Unit Price

8 MM LOCK WASHER

08321-21088-000

08321-01087-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STAND - REAR BRAKE of your Suzuki of PV. Let us know if you have any questions.
