CYLINDER

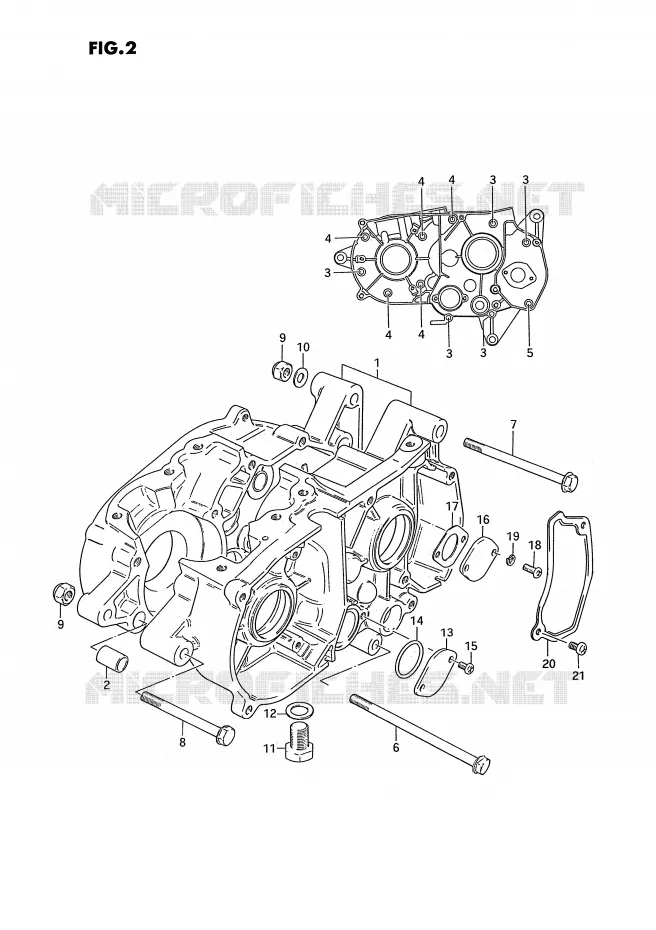

CRANKCASE FOR SUZUKI PV 50 1987

CRANKCASE COVER (MODEL X) REFER TO FIG.4 (B-6) FOR MODEL D/H/L/M/R

CRANKCASE SET

11300-46827-000 1130046827000

Not available

CRANKCASE SET

11301-46840-000 1130146840000

Not available

DOWEL PIN
PIN

04211-11189-000 0421111189000

$3,97

Unit Price

SCREW

02112-06453-000

02112-0645B-000

$3,97

Unit Price

SCREW, 6X45
SCREW

02112-06457-000 0211206457000

$3,97

Unit Price

SCREW

02112-06357-000 0211206357000

$3,97

Unit Price

02112-0635B
SCREW

02112-06353-000

Not available

SCREW

02112-06253-000

02112-0625A-000

$2,97

Unit Price

BOLT, 8X110
BOLT, ENGINE MOUNT (8X110)

09103-08122-000 0910308122000

$6,97

Unit Price

BOLT
BOLT, ENGINE MOUNT (8X110)

09103-08134-000 0910308134000

$3,97

Unit Price

BOLT
BOLT, ENGINE MOUNT (8X100)

09103-08070-000 0910308070000

$9,97

Unit Price

BOLT(8X100)
BOLT, ENGINE MOUNT (8X100)

09103-08230-000 0910308230000

$5,97

Unit Price

BOLT

01550-08757-000

01550-0875B-000

$5,97

Unit Price

NUT

09159-08020-000 0915908020000

Not available

WASHER

08322-01087-000 0832201087000

$3,97

Unit Price

BOLT

01107-10208-000

01500-1020B-000

$4,97

Unit Price

CRNK DRAIN PLUG GASK
GASKET

09168-10002-000 0916810002000

$2,97

Unit Price

CAP, GEAR SHIFT CAM PIVOT
CAP, CAM PIVOT

11451-46000-000 1145146000000

$4,97

Unit Price

O RING

09280-26003-000

Not available

SCREW

02112-05083-000

02112-0508A-000

$3,97

Unit Price

CAP, OIL PUMP DRIVE SHAFT

16745-16701-000 1674516701000

Not available

GASKET, OIL PUMP
GASKET

16731-03101-000 1673103101000

$4,97

Unit Price

SCREW

02112-05128-000

02112-05127-000

$3,97

Unit Price

WASHER, LOCK

08321-21057-000

08321-0105A-000

$2,97

Unit Price

CAP, OIL PUMP INSPECTION

11302-46811-000 1130246811000

$20,97

Unit Price

SCREW

02112-06103-000

02112-0610B-000

$2,97

Unit Price

SCREW FIG.28 (E-5) : GSX1100ESD

02112-06108-000 0211206108000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of PV. Let us know if you have any questions.
