CRANKCASE

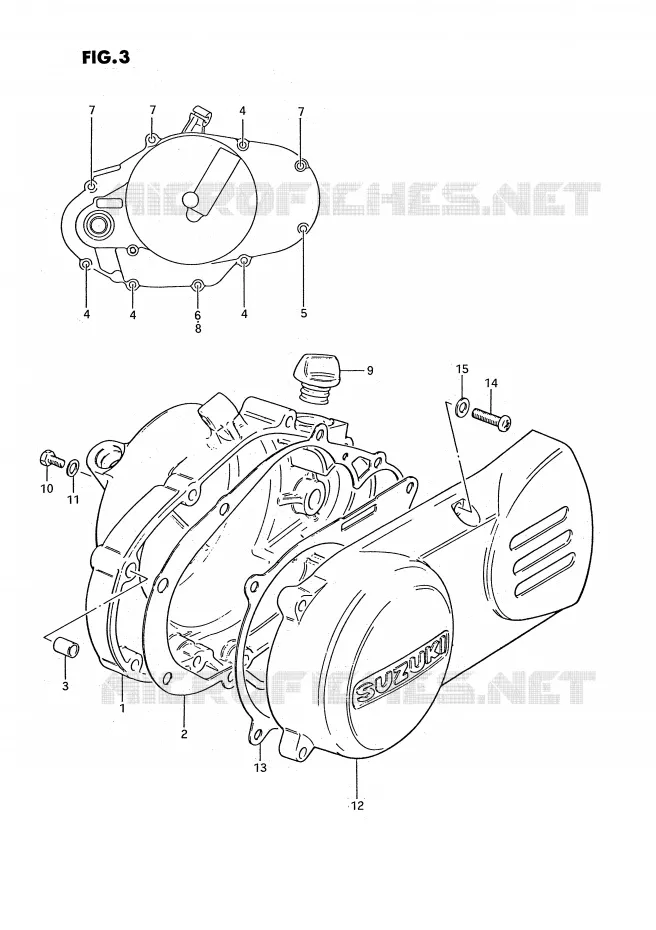

CRANKCASE COVER (MODEL X) FOR SUZUKI PV 50 1987

CRANKCASE COVER (MODEL D / H / L / M / R) REFER TO FIG.5 (B-7) FOR E43

Item numbers
CRANKCASE COVER (MODEL X) Suzuki MOTO 50 PV 1987 PV50H(E15)
2
1
COVER, CLUTCH

11341-46001-000   1134146001000

1134146001000

Unit Price

1
COVER, CLUTCH

11341-46201-000   1134146201000

1134146201000
Not available
2
DISCONTINUED

11482-46001-000   1148246001000

1148246001000
Not available
3
9 X 12 DOWEL PIN<br />PIN
9 X 12 DOWEL PIN
PIN

04211-09129-000   0421109129000

0421109129000

Unit Price

4
SCREW

02112-06258-000  

02112-0625A-000
 0211206258000

Unit Price

5
SCREW

02112-06308-000  

02112-06307-000
 0211206308000

Unit Price

6
SCREW
SCREW

02112-06357-000   0211206357000

0211206357000

Unit Price

7
SCREW 6X40<br />SCREW
SCREW 6X40
SCREW

02112-06407-000   0211206407000

0211206407000

Unit Price

8
TACH GEAR WASHER<br />WASHER
TACH GEAR WASHER
WASHER

09168-06004-000   0916806004000

0916806004000

Unit Price

9
OIL FILLER PLUG
OIL FILLER PLUG

09259-19001-000  

09259-19005-000
 0925919001000

Unit Price

10
SCREWM6X1X10

09128-06004-000  

09128-06044-000
 0912806004000

Unit Price

11
OIL LEVEL SCR GASKET<br />GASKET
OIL LEVEL SCR GASKET
GASKET

09168-06001-000   0916806001000

0916806001000

Unit Price

12
DISCONTINUE
COVER, MAGNETO

11351-46000-000   1135146000000

1135146000000
Not available
12
COVER, MAGNETO

11351-46201-000   1135146201000

1135146201000
Not available
13
GASKET, MAGNETO COVER
GASKET

11483-46100-000   1148346100000

1148346100000

Unit Price

14
SCREW

02112-06258-000  

02112-0625A-000
 0211206258000

Unit Price

15
WASHER

08322-21067-000  

08322-0106A-000
 0832221067000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE COVER (MODEL X) of your Suzuki of PV. Let us know if you have any questions.

Genuine parts for Suzuki 50 PV 1987

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 PV 1987

Select your Suzuki 1987 model

50 PV 1987 PV50H(E15)

Suzuki PV

Displacement: 50 cc
Year: 1987
Model code PV50H(E15)
