STAND - REAR BRAKE

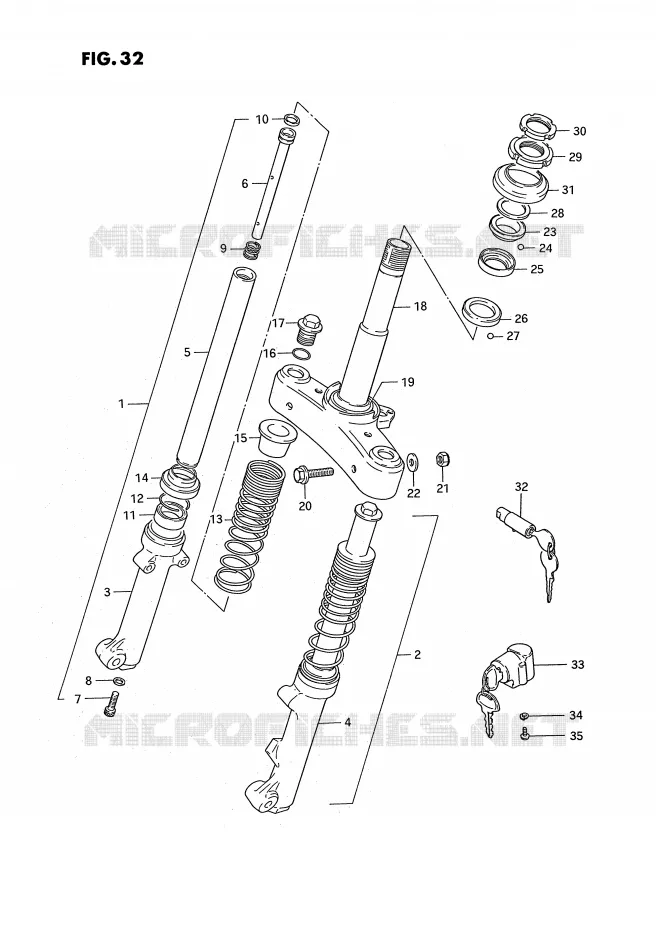

FRONT FORK FOR SUZUKI PV 50 1987

FRONT WHEEL

DAMPER ASSY, RH

51103-17200-000 5110317200000

Not available

DAMPER ASSY, RH

51103-17201-000 5110317201000

Not available

DAMPER ASSY, LH

51104-17200-000 5110417200000

Not available

DAMPER ASSY, LH

51104-17201-000 5110417201000

Not available

OUTER TUBE, RH

51131-17200-000 5113117200000

Not available

OUTER TUBE, RH

51131-17201-000 5113117201000

Not available

OUTER TUBE, LH

51141-17200-000 5114117200000

Not available

OUTER TUBE, LH

51141-17201-000 5114117201000

Not available

INNER TUBE

51110-17200-000 5111017200000

Not available

PIPE, SEAT

51146-17200-000 5114617200000

Not available

BOLT(8X27)
BOLT

51147-48130-000 5114748130000

$6,97

Unit Price

GASKET

51148-36011-000 5114836011000

$5,97

Unit Price

SPRING, REBOUND
SPRING

51177-46100-000 5117746100000

$8,97

Unit Price

RING, PISTON

51196-46100-000 5119646100000

$14,97

Unit Price

SEAL, OIL
OIL SEAL

51153-03400-000 5115303400000

$22,97

Unit Price

RING, OIL SEAL STOPPER

51156-46100-000

51156-48130-000

$9,97

Unit Price

SPRING

51171-17200-000 5117117200000

Not available

DUST SEAL

51571-17200-000 5157117200000

Not available

GUIDE, SPRING

51173-17200-000 5117317200000

Not available

SEAL NUT O RING

51181-46190-000

09280-18004-000

$8,97

Unit Price

CAP
BOLT

51351-46190-000 5135146190000

$29,97

Unit Price

STEERING STEM

51400-17810-000 5140017810000

Not available

STEERING STEM

51400-17820-000 5140017820000

Not available

STEERING STEM

51400-17821-000 5140017821000

Not available

OUTER RACE, LOWER

51622-04000-000 5162204000000

Not available

BOLT

09103-10026-000 0910310026000

Not available

NUT

08319-31105-000

08319-3110A-000

$3,97

Unit Price

SUZUKI PART

08322-21105-000 0832221105000

Not available

RACE, STEERING OUTER UPR
OUTER RACE, UPPER

51621-28000-000 5162128000000

$10,97

Unit Price

BALL
BALL, UPPER

06111-06003-000 0611106003000

$2,97

Unit Price

RACE, STEERING INNER UPR
INNER RACE, UPPER

51611-20002-000 5161120002000

$10,97

Unit Price

INNER RACE, LOWER

51612-04000-000 5161204000000

Not available

BALL
BALL, LOWER

06111-06003-000 0611106003000

$2,97

Unit Price

WASHER

09166-26001-000 0916626001000

$2,97

Unit Price

NUT, STEERING STEM(25X44X10)
NUT

51631-28000-000 5163128000000

$20,97

Unit Price

NUT, STEERING STEM LOCK
NUT

51632-02400-000 5163202400000

$20,97

Unit Price

DUST SEAL, STEERING UPR
DUST SEAL

51643-25001-000 5164325001000

$10,97

Unit Price

LOCK SET, STEERING

51900-22662-000

51900-309V0-000

$229,97

Unit Price

DISCONTINUE
LOCK SET, STEERING

51900-30831-000 5190030831000

Not available

WASHER, LOCK

08321-21057-000

08321-0105A-000

$2,97

Unit Price

SCREW

02112-05168-000

02112-05167-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki of PV. Let us know if you have any questions.
