FRONT FAIRING (MODEL K2)

FRONT FAIRING (MODEL K3) FOR SUZUKI KATANA 50 2002

FRONT FAIRING (MODEL K4)

Item numbers

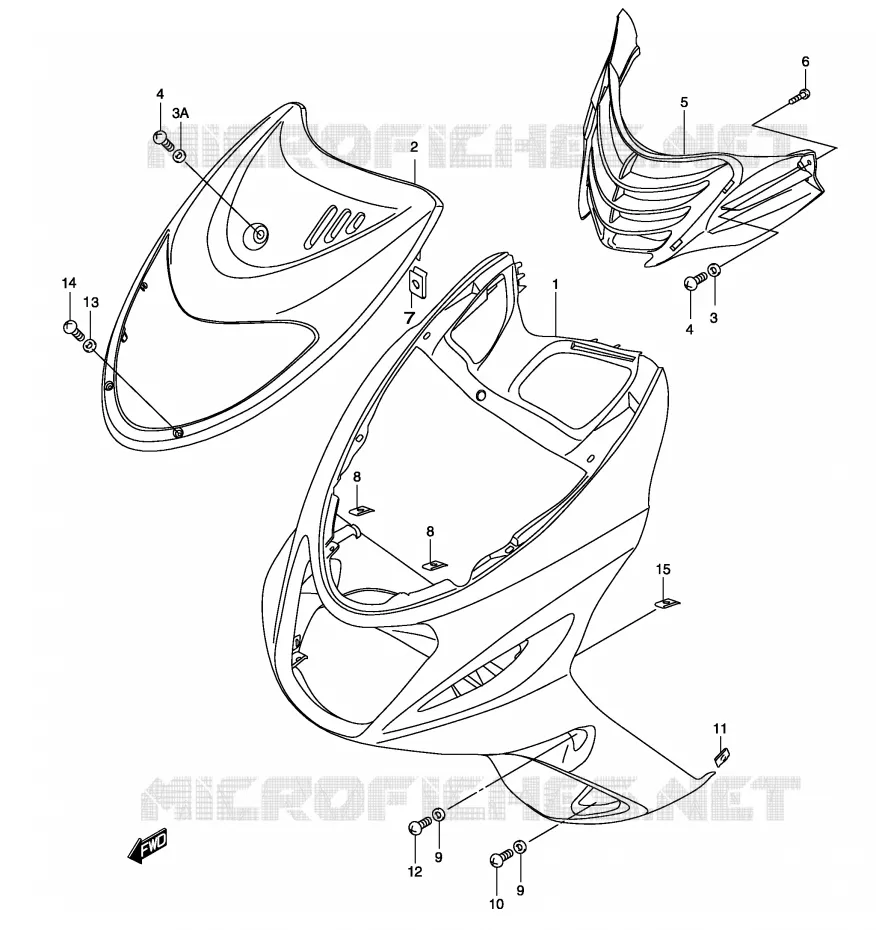

FRONT FAIRING (MODEL K3) Suzuki SCOOTER 50 KATANA 2002 AY50K2(P19)
1
1
1
1
2
2
2
2
3
3A
4
4
5
5
5
6
7
8
8
9
9
10
11
12
13
14
15
1
SHIELD, LEG FRONT LOWER (WHITE

48137-35E50-0JW   4813735E500JW

4813735E500JW
Not available
1
SHIELD, LEG FRONT LOWER (YELLO

48137-35E50-Y9H   4813735E50Y9H

4813735E50Y9H
Not available
1
SHIELD, LEG FRONT LOWER (BLUE)

48137-35E50-YC2   4813735E50YC2

4813735E50YC2
Not available
1
SHIELD, LEG FRONT LOWER (SILVE

48137-35E50-YD8   4813735E50YD8

4813735E50YD8
Not available
2
SHIELD, LEG FRONT (BLUE)

48111-35E50-1LF   4811135E501LF

4811135E501LF
Not available
2
SHIELD, LEG FRONT (YELLOW)

48111-35E50-Y9H   4811135E50Y9H

4811135E50Y9H
Not available
2
SHIELD, LEG FRONT (BLUE)

48111-35E50-YC2   4811135E50YC2

4811135E50YC2
Not available
2
SHIELD, LEG FRONT (SILVER)

48111-35E50-YD8   4811135E50YD8

4811135E50YD8
Not available
3A
WASHER

D8322-01065-000  

08322-0106A-000
 D832201065000

Unit Price

3
WASHER

09689-06158-E0N   0968906158E0N

0968906158E0N
Not available
4
SCREW

D2116-06165-000  

02112-0616A-000
 D211606165000

Unit Price

5
GRILL, LEG FRONT (BLACK)

48112-35E50-NE2   4811235E50NE2

4811235E50NE2
Not available
5
GRILL, LEG FRONT (WHITE/RED)

48112-35E60-E05   4811235E60E05

4811235E60E05
Not available
5
GRILL, LEG FRONT (YELLOW/RED)

48112-35E60-NA4   4811235E60NA4

4811235E60NA4
Not available
6
SCREW
SCREW

D3111-05165-000   D311105165000

D311105165000
Not available
7
NUT

D913E-04160-000   D913E04160000

D913E04160000
Not available
8
NUT

D91EE-04166-000   D91EE04166000

D91EE04166000
Not available
9
WASHER

D8322-01055-000  

08322-0105B-000
 D832201055000

Unit Price

10
SCREW, UNDER

D3111-05195-000   D311105195000

D311105195000
Not available
11
NUT

D91FK-48212-000   D91FK48212000

D91FK48212000
Not available
12
SCREW
SCREW

D3111-05165-000   D311105165000

D311105165000
Not available
13
WASHER

D8322-01055-000  

08322-0105B-000
 D832201055000

Unit Price

14
SCREW, UNDER

D3111-05195-000   D311105195000

D311105195000
Not available
15
NUT

D91EE-04166-000   D91EE04166000

D91EE04166000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FAIRING (MODEL K3) of your Suzuki of KATANA. Let us know if you have any questions.

Genuine parts for Suzuki 50 KATANA 2002
