COOLING FAN (MODEL AY50) FOR SUZUKI KATANA 50 2002

STARTER MOTOR

Item numbers

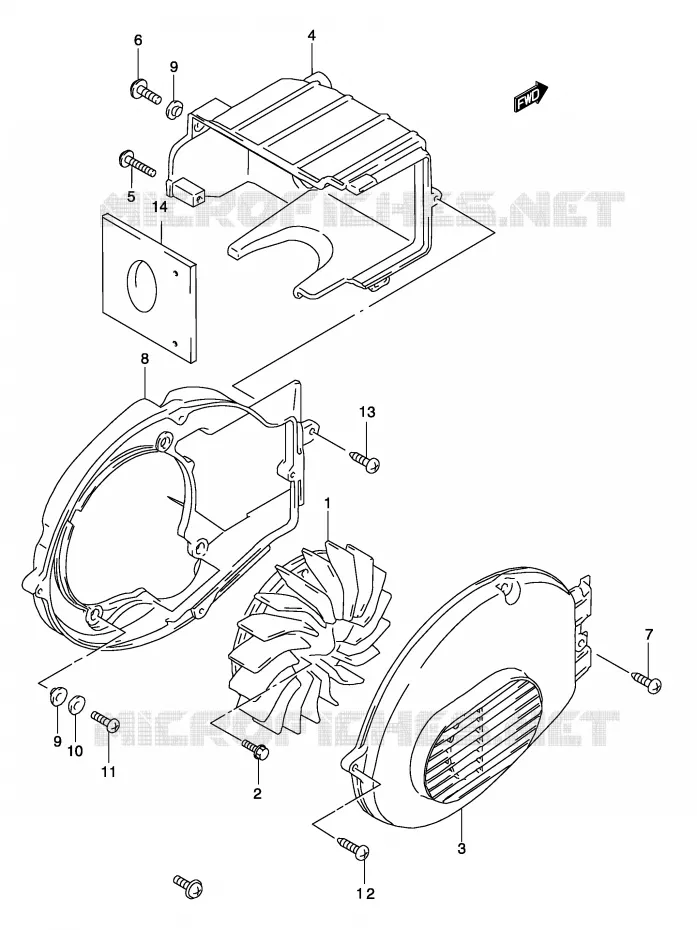

COOLING FAN (MODEL AY50) Suzuki SCOOTER 50 KATANA 2002 AY50K2(P19)
1
2
3
3
3
4
5
6
7
8
9
9
10
11
12
13
14
1
FAN, COOLING

17110-02E00-000   1711002E00000

1711002E00000
Not available
2
BOLT

D1557-06125-000  

01517-06123-000
 D155706125000

Unit Price

3
COWLING, FAN

17131-25E00-000   1713125E00000

1713125E00000
Not available
3
COWLING, FAN

17131-40D00-000  

1713140D00000
Not available
4
COWLING, CYLINDER

17120-10E00-000   1712010E00000

1712010E00000
Not available
5
SCREW

D2116-06355-000   D211606355000

D211606355000
Not available
6
SCREW

D2116-06255-000   D211606255000

D211606255000
Not available
7
SCREW

D3111-0F195-000   D31110F195000

D31110F195000
Not available
8
CASE, FAN

17145-10E00-000   1714510E00000

1714510E00000
Not available
9
SPACER

13838-06400-000   1383806400000

1383806400000
Not available
10
WASHER

D8322-01065-000  

08322-0106A-000
 D832201065000

Unit Price

11
SCREW

D2116-06165-000  

02112-0616A-000
 D211606165000

Unit Price

12
SCREW

D3111-05195-000   D311105195000

D311105195000
Not available
13
SCREW

D3111-06195-000   D311106195000

D311106195000
Not available
14
CUSHION

17122-37B00-000   1712237B00000

1712237B00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the COOLING FAN (MODEL AY50) of your Suzuki of KATANA. Let us know if you have any questions.

Genuine parts for Suzuki 50 KATANA 2002
