MUFFLER (MODEL K3 / K4)

OIL PUMP (MODEL K1) FOR SUZUKI KATANA 50 2002

OIL PUMP (SEE NOTE)

Item numbers

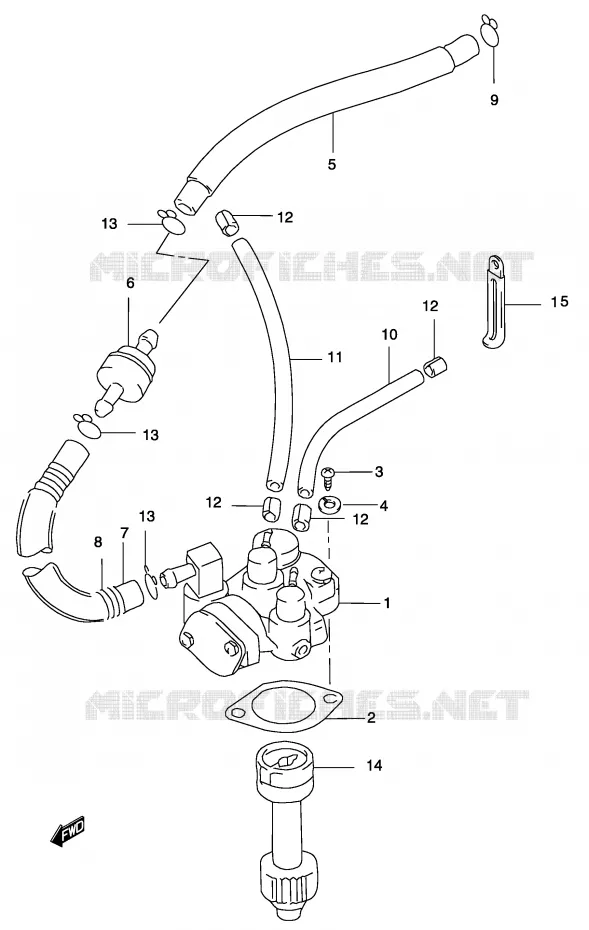

OIL PUMP (MODEL K1) Suzuki SCOOTER 50 KATANA 2002 AY50K2(P19)
1
1
2
3
4
5
6
7
8
9
10
11
12
12
12
12
13
13
13
14
15
1
PUMP ASSY, OIL

16100-29C00-000   1610029C00000

1610029C00000
Not available
1
PUMP ASSY, OIL

16100-35E00-000   1610035E00000

1610035E00000
Not available
2
GASKET, OIL PUMP

16731-02300-000   1673102300000

1673102300000

Unit Price

3
SCREW (5X16)

D7107-05165-000   D710705165000

D710705165000
Not available
4
WASHER

D8321-01055-000   D832101055000

D832101055000
Not available
5
HOSE, OIL NO.1

09689-06107-105   0968906107105

0968906107105
Not available
6
FILTER, OIL PUMP

16850-02200-X00   1685002200X00

1685002200X00
Not available
7
HOSE, OIL NO.1 INLET

09689-05107-275   0968905107275

0968905107275
Not available
8
PROTECTOR

09689-02E06-000   0968902E06000

0968902E06000
Not available
9
CLIP

D9510-0104P-000   D95100104P000

D95100104P000
Not available
10
HOSE, OIL NO. 2 R. OUT 1

09352-20503-070   0935220503070

0935220503070
Not available
11
HOSE, OIL NO. 2 R. OUT 2

09352-20503-130   0935220503130

0935220503130
Not available
12
OIL HOSECLAMP<br />CLIP
OIL HOSECLAMP
CLIP

09401-04401-000   0940104401000

0940104401000

Unit Price

13
CLIP

D9500-0110P-000   D95000110P000

D95000110P000
Not available
14
GEAR, OIL PUMP DRIVEN (NT: 30

16331-29C00-000   1633129C00000

1633129C00000
Not available
15
CLAMP

09404-06429-EE3   0940406429EE3

0940406429EE3
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP (MODEL K1) of your Suzuki of KATANA. Let us know if you have any questions.

Genuine parts for Suzuki 50 KATANA 2002
