HEADLIGHT

TURNSIGNAL FOR SUZUKI KATANA 50 2002

TAIL LIGHT

Item numbers

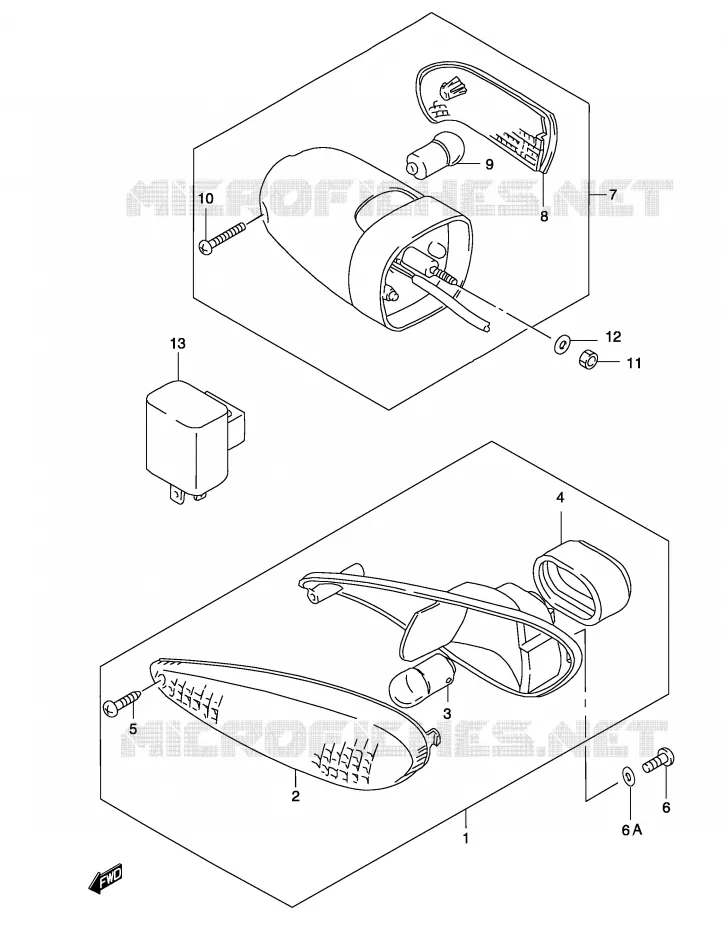

TURNSIGNAL Suzuki SCOOTER 50 KATANA 2002 AY50K2(P19)
1
1
1
1
2
2
2
2
3
4
5
6
6A
7
7
7
7
8
8
9
10
11
12
13
1
LAMP ASSY, FRONT TURN RH

35601-02E00-000   3560102E00000

3560102E00000
Not available
1
LAMP ASSY, FRONT TURN LH

35602-02E00-000   3560202E00000

3560202E00000
Not available
1
LAMP ASSY, FRONT TURN RH

35601-02E10-000   3560102E10000

3560102E10000
Not available
1
LAMP ASSY, FRONT TURN LH

35602-02E10-000   3560202E10000

3560202E10000
Not available
2
LENS, TURN SIGNAL LAMP LH

35612-02E00-000   3561202E00000

3561202E00000
Not available
2
LENS, TURN SIGNAL LAMP RH

35613-02E00-000   3561302E00000

3561302E00000
Not available
2
LENS, TURN SIGNAL LAMP LH

35612-02E10-000   3561202E10000

3561202E10000
Not available
2
LENS, TURN SIGNAL LAMP RH

35613-02E10-000   3561302E10000

3561302E10000
Not available
3
BULB(12V10W)
BULB (BA 15S 12V, 10W)

09471-12177-000  

0947112177000
Not available
4
BOOT, FRONT TURN

35617-02E00-000   3561702E00000

3561702E00000
Not available
5
SCREW

D3111-04125-000   D311104125000

D311104125000
Not available
6
SCREW

D3111-0E165-000   D31110E165000

D31110E165000
Not available
6A
DISCONTINUE
WASHER

D8322-01045-000   D832201045000

D832201045000
Not available
7
LAMP ASSY, REAR TURN RH

35603-02E10-000   3560302E10000

3560302E10000
Not available
7
LAMP ASSY, REAR TURN RH

35603-35E01-000   3560335E01000

3560335E01000
7
LAMP ASSY, REAR TURN LH

35604-02E10-000   3560402E10000

3560402E10000
Not available
7
LAMP ASSY, REAR TURN LH

35604-35E01-000   3560435E01000

3560435E01000
Not available
8
LENS, REAR TURN RH/LH

35652-02E00-000   3565202E00000

3565202E00000
Not available
8
LENS, REAR TURN RH/LH

35652-02E10-000   3565202E10000

3565202E10000
Not available
9
BULB(12V10W)
BULB (BA 15S 12V, 10W)

09471-12177-000  

0947112177000
Not available
10
TAPPING, SCREW

D3111-04323-000   D311104323000

D311104323000
Not available
11
08310-0005A

D8310-00055-000  

D831000055000
Not available
12
WASHER, REAR TURN

D8322-91055-000   D832291055000

D832291055000
Not available
13
RELAY ASSY, TURNSIGNAL

38610-02E00-000   3861002E00000

3861002E00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TURNSIGNAL of your Suzuki of KATANA. Let us know if you have any questions.

Genuine parts for Suzuki 50 KATANA 2002
