Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

KICK STARTER (MODEL K1 / K2)

KICK STARTER (MODEL K3 / K4) FOR SUZUKI KATANA 50 2002

OIL TANK

Item numbers

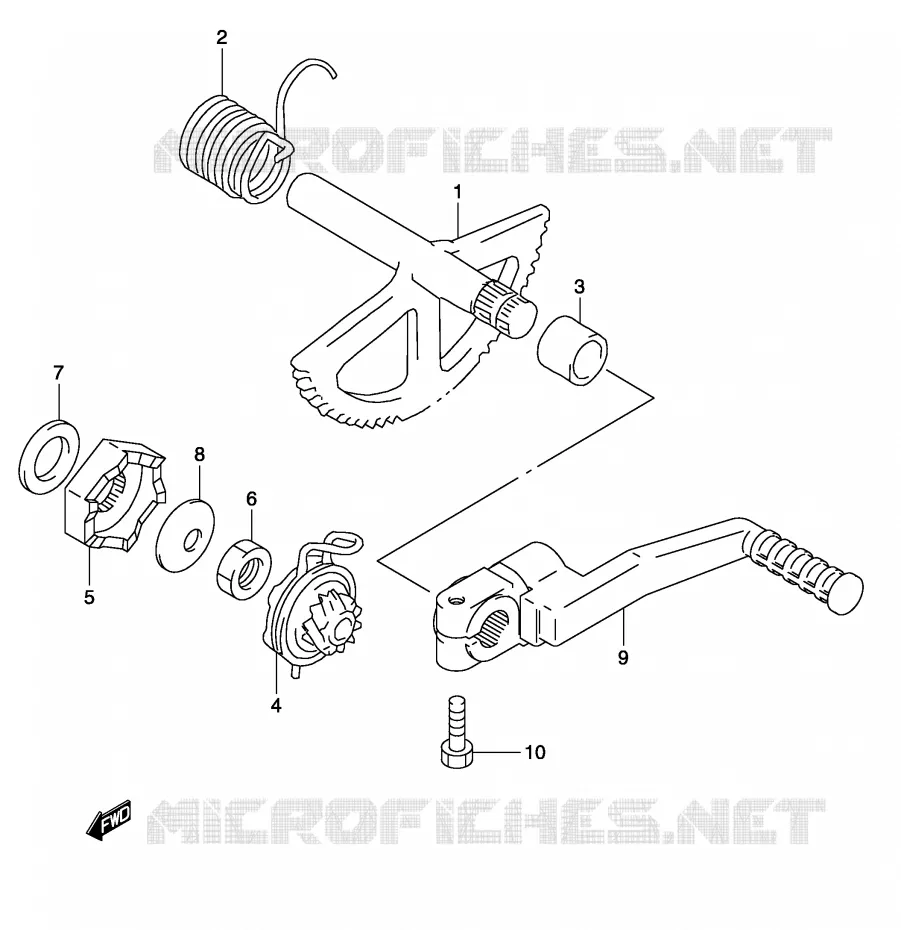

KICK STARTER (MODEL K3/K4) Suzuki SCOOTER 50 KATANA 2002 AY50K2(P19)
1
1
2
2
3
4
5
6
7
8
9
10
1
SHAFT, KICK STARTER

26210-43E20-000   2621043E20000

2621043E20000
Not available
1
SHAFT, KICK STARTER

26210-43E11-000   2621043E11000

2621043E11000
Not available
2
SPRING

09448-30016-000   0944830016000

0944830016000

Unit Price

3
BUSH (14X18X15)

09300-14011-R00   0930014011R00

0930014011R00
Not available
4
GEAR ASSY, KICK STARTER

26200-43E20-000   2620043E20000

2620043E20000
Not available
5
STARTER, KICK RH

26231-43E00-000   2623143E00000

2623143E00000
Not available
6
NUT
NUT

09140-12039-000   0914012039000

0914012039000

Unit Price

7
SPACER (14X23X3.6)

09689-14036-000   0968914036000

0968914036000
Not available
8
WASHER
WASHER (12.2X22X1.2)

09164-12020-000   0916412020000

0916412020000

Unit Price

9
LEVER ASSY, KICK STARTER

26300-43E11-000   2630043E11000

2630043E11000
Not available
10
BOLT

D1507-06255-000   D150706255000

D150706255000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
