FRAME FOR SUZUKI KATANA 50 2005

FUEL TANK

Item numbers

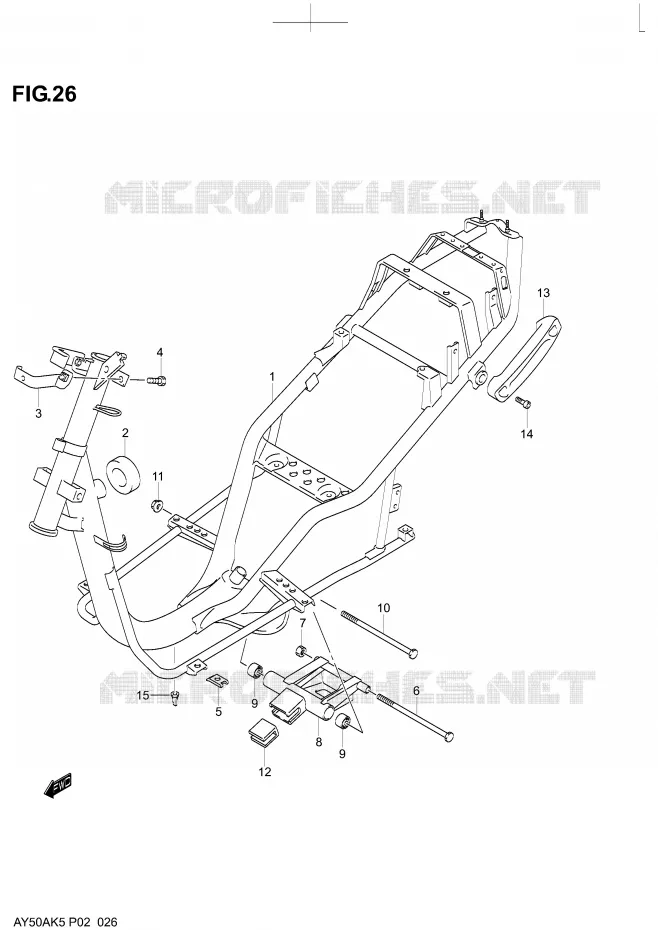

FRAME Suzuki SCOOTER 50 KATANA 2005 AY50AK5
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
1
FRAME

41100-02EB0-EE3   4110002EB0EE3

4110002EB0EE3
Not available
2
CUSHION

41477-35E00-000   4147735E00000

4147735E00000
Not available
3
PLATE, LEG SHIELD BRK, UPPER

41126-35EA0-EE3   4112635EA0EE3

4112635EA0EE3
Not available
4
BOLT

D1507-08165-000   D150708165000

D150708165000
Not available
5
NUT

D911P-06226-000   D911P06226000

D911P06226000
Not available
6
BOLT (M10X190)

D1507-100J8-000   D1507100J8000

D1507100J8000
Not available
7
NUT

D8310-00108-000   D831000108000

D831000108000
Not available
8
BRACKET, CRANKCASE

41180-02E11-EE3   4118002E11EE3

4118002E11EE3
Not available
9
BUSH

09319-C10-068J000   09319C10068J000

09319C10068J000
Not available
10
BOLT, ENGINE MOUNT (M10X180)

D1507-100G8-000   D1507100G8000

D1507100G8000
Not available
11
NUT

D8319-69103-000   D831969103000

D831969103000
Not available
12
CUSHION, SWING STOP

41185-C29-C01J000   41185C29C01J000

41185C29C01J000
Not available
13
GRIP, STAND

43980-02E00-000   4398002E00000

4398002E00000
Not available
14
BOLT

D7107-08255-000   D710708255000

D710708255000
Not available
15
TUBE DRAIN, SET

13092-09E00-000   1309209E00000

1309209E00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki of KATANA. Let us know if you have any questions.

Genuine parts for Suzuki 50 KATANA 2005

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 50 KATANA 2005

Select your Suzuki 2005 model

50 KATANA 2005 AY50AK5

Suzuki KATANA

Displacement: 50 cc
Year: 2005
Model code AY50AK5
