CRANKSHAFT

AIR COMPRESSOR (DITECH) FOR SUZUKI KATANA 50 2005

THROTTLE BODY (DITECH)

Item numbers

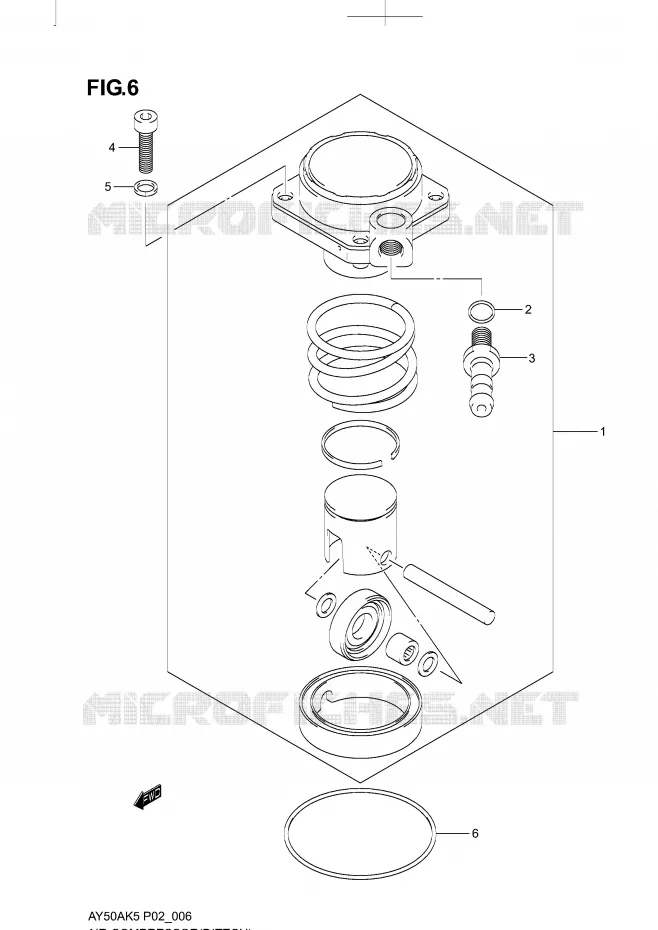

AIR COMPRESSOR (DITECH) Suzuki SCOOTER 50 KATANA 2005 AY50AK5

1

COMPRESSOR ASSY

15810-02EA0-000 1581002EA0000

Not available

2

O RING

15822-02EA0-000 1582202EA0000

Not available

3

COMPRESSOR CONNECTOR

15820-02EA0-000 1582002EA0000

Not available

4

BOLT

D7107-05208-000 D710705208000

Not available

5

WASHER

D8321-01058-000 D832101058000

Not available

6

O RING (44.2X1.8)

15813-02EA0-000 1581302EA0000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the AIR COMPRESSOR (DITECH) of your Suzuki of KATANA. Let us know if you have any questions.

Genuine parts for Suzuki 50 KATANA 2005
