Finish line

Parts catalogue

Parts diagram

AIR COMPRESSOR (DITECH)

THROTTLE BODY (DITECH) FOR SUZUKI KATANA 50 2005

AIR FILTER

Item numbers

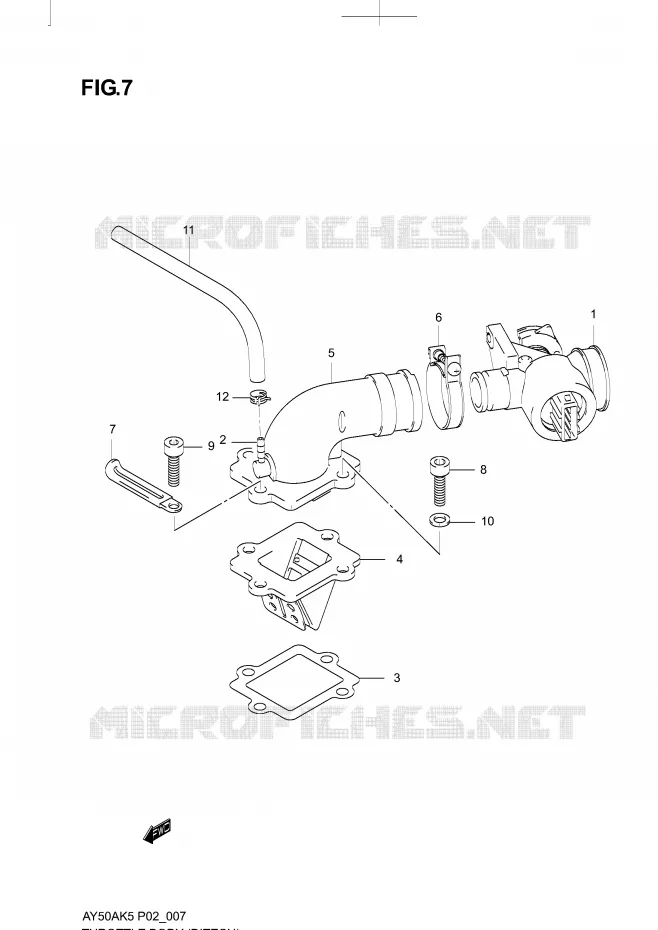

THROTTLE BODY (DITECH) Suzuki SCOOTER 50 KATANA 2005 AY50AK5
1
2
3
4
5
6
7
8
9
10
11
12
1
BODY, THROTTLE

13401-02EA1-000   1340102EA1000

1340102EA1000
Not available
2
NIPPLE COMP

16910-02EA0-000   1691002EA0000

1691002EA0000
Not available
3
GASKET

13156-02EA0-000   1315602EA0000

1315602EA0000
Not available
4
VALVE ASSY REED

13150-02EA0-000   1315002EA0000

1315002EA0000
Not available
5
PIPE INTAKE ASSY

13110-02EA0-000   1311002EA0000

1311002EA0000
Not available
6
CLAMP

D8391-122B4-000   D8391122B4000

D8391122B4000
Not available
7
CLAMP

09404-06429-EE3   0940406429EE3

0940406429EE3
Not available
8
BOLT

13141-09E21-000   1314109E21000

1314109E21000
Not available
9
BOLT

D7107-06258-000   D710706258000

D710706258000
Not available
10
WASHER

D8321-71068-000   D832171068000

D832171068000
Not available
11
HOSE, OIL

09352-20503-240   0935220503240

0935220503240
Not available
12
OIL HOSECLAMP<br />CLAMP
OIL HOSECLAMP
CLAMP

09401-04401-000   0940104401000

0940104401000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the THROTTLE BODY (DITECH) of your Suzuki of KATANA. Let us know if you have any questions.

Genuine parts for Suzuki 50 KATANA 2005
