TAIL LIGHT

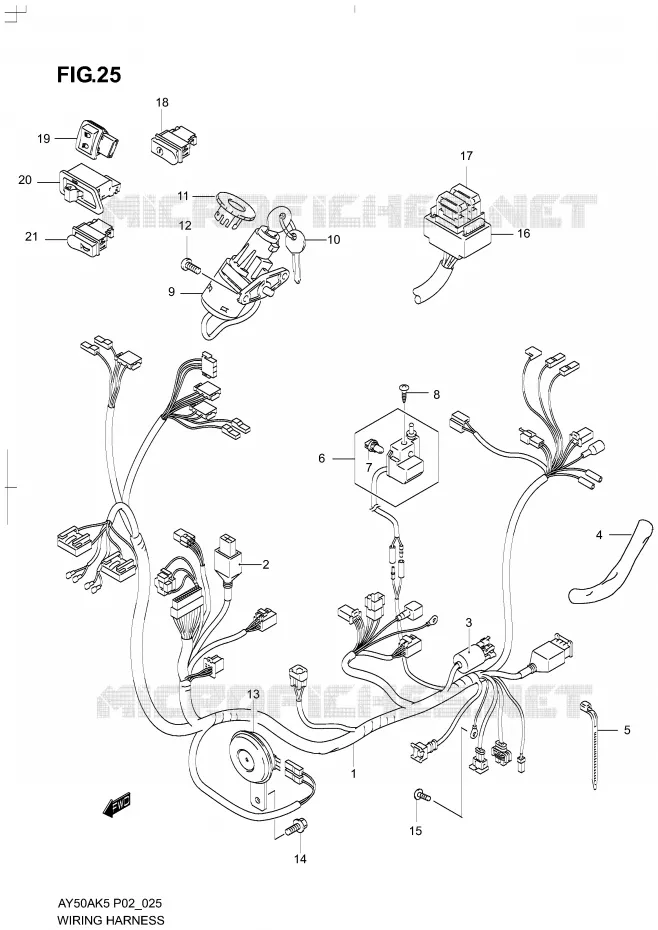

WIRINGHARNESS FOR SUZUKI KATANA 50 2006

* CATALOG PREFACE *

Item numbers

HARNESS WIRING

36610-02EM0-000 3661002EM0000

Not available

HARNESS WIRING

36610-02EN0-000 3661002EN0000

Not available

BOOT, UNIT & COIL

36618-35E10-000 3661835E10000

Not available

BOOT, RECTIFIER COUPLER

36618-35E01-000 3661835E01000

Not available

TUBE, WIRING

DTP00-30055-140 DTP0030055140

Not available

CLAMP

D9425-00975-000 D942500975000

Not available

CLAMP

D9448-01885-000 D944801885000

Not available

CLAMP

D9448-02875-000 D944802875000

Not available

LAMP ASSY, TRUNK BOX

36210-35EA0-000 3621035EA0000

Not available

BULB (13.5V, 2W)

09471-12118-X00 0947112118X00

Not available

SCREW

03541-04125-000

03541-0412B-000

$2,97

Unit Price

LOCK ASSY, STEERING

37100-09EF0-000 3710009EF0000

Not available

LOCK ASSY, STEERING

37100-09EG0-000 3710009EG0000

Not available

KEY, BLANK

37146-09EF0-000 3714609EF0000

Not available

CUP, IGNITION SWITCH

37155-09EF0-000 3715509EF0000

Not available

CUP, IGNITION SWITCH

37155-09EG0-000 3715509EG0000

Not available

BOLT, LOCK ASSY

09139-C06-064J000 09139C06064J000

Not available

HORN ASSY

38500-02E00-000 3850002E00000

Not available

BOLT, HORN

D1507-08165-000 D150708165000

Not available

BOLT

D2116-06108-000 D211606108000

Not available

BOX ASSY FUSE

36740-35EA0-000 3674035EA0000

Not available

FUSE 10A

09481-02E10-000 0948102E10000

Not available

FUSE 7.5A

09481-02E75-000 0948102E75000

Not available

SWITCH ASSY, STARTER

37310-10E00-000 3731010E00000

Not available

SWITCH ASSY, HIGH-LOW BEAM

37420-09E00-000 3742009E00000

Not available

SWITCH ASSY, TURN SIGNAL

37510-10E00-000 3751010E00000

Not available

SWITCH ASSY, HORN

37520-09E00-000 3752009E00000

Not available

36611-02E00
DIODE

36611-02E01-000 3661102E01000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRINGHARNESS of your Suzuki of KATANA. Let us know if you have any questions.
