Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FUEL PUMP

WATER PUMP FOR SUZUKI KATANA 50 2006

RADIATOR

Item numbers

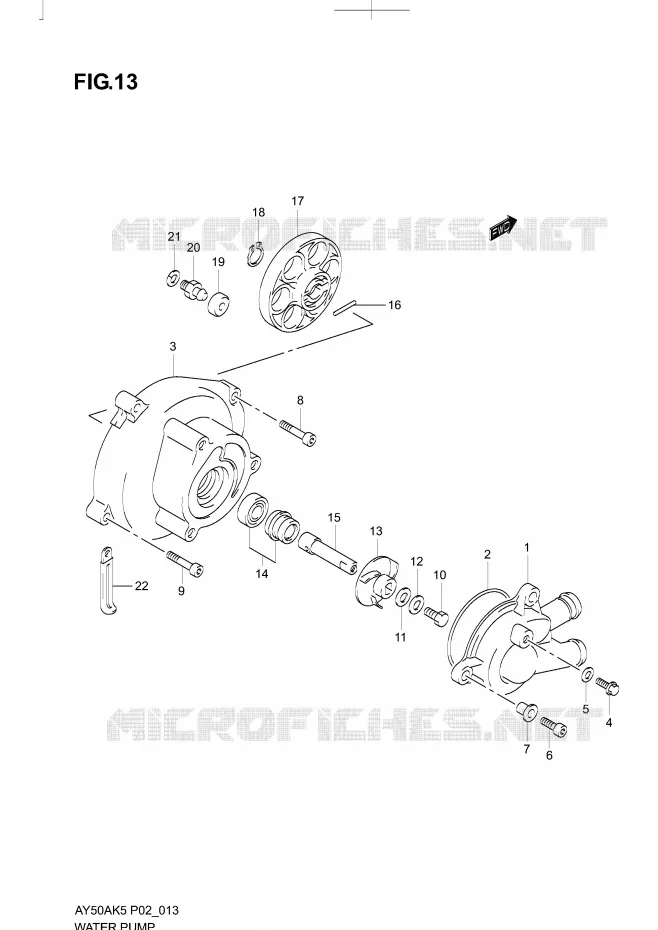

WATER PUMP Suzuki SCOOTER 50 KATANA 2006 AY50AK6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
CASE, WATER PUMP OUTER

17411-02EA0-000   1741102EA0000

1741102EA0000
Not available
2
O RING (65X2.1)

09280-02EA0-000   0928002EA0000

0928002EA0000
Not available
3
CASE, WATER PUMP INNER

17412-02EA0-000   1741202EA0000

1741202EA0000
Not available
4
BOLT (5.5X13)

09360-02EA0-000   0936002EA0000

0936002EA0000
Not available
5
GASKET

09168-02E30-000   0916802E30000

0916802E30000
Not available
6
BOLT

D7107-06208-000   D710706208000

D710706208000
Not available
7
T BUSH

09169-02E20-000   0916902E20000

0916902E20000
Not available
8
BOLT

D7107-06258-000   D710706258000

D710706258000
Not available
9
BOLT

D7107-06358-000   D710706358000

D710706358000
Not available
10
BOLT

D1507-06128-000   D150706128000

D150706128000
Not available
11
.GASKET (6X15X2.2)

09168-06016-000   0916806016000

0916806016000
Not available
12
WASHER, LOCK

D8321-81065-000   D832181065000

D832181065000
Not available
13
IMPELLER, WATER PUMP

17491-02EA0-000   1749102EA0000

1749102EA0000
Not available
14
BEARING & SEAL SET

08011-02EA0-000   0801102EA0000

0801102EA0000
Not available
15
SHAFT, WATER PUMP

17511-02EA0-000   1751102EA0000

1751102EA0000
Not available
16
CLUTCH SPRING PIN<br />PIN
CLUTCH SPRING PIN
PIN

09261-02001-000   0926102001000

0926102001000

Unit Price

17
JOINT, WATER PUMP

17521-02EA0-000   1752102EA0000

1752102EA0000
Not available
18
CIRCLIP

D8331-31129-000   D833131129000

D833131129000
Not available
19
CUSHION, WATER PUMP JOINT

17523-02EA0-000   1752302EA0000

1752302EA0000
Not available
20
BOLT, WATER PUMP JOINT CUSHION

17522-02EA0-000   1752202EA0000

1752202EA0000
Not available
21
WASHER

D8321-71065-000   D832171065000

D832171065000
Not available
22
CLAMP

09404-06429-EE3   0940406429EE3

0940406429EE3
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WATER PUMP of your Suzuki of KATANA. Let us know if you have any questions.

Genuine parts for Suzuki 50 KATANA 2006

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 50 KATANA 2006

Select your Suzuki 2006 model

50 KATANA 2006 AY50AK6

Suzuki KATANA

Displacement: 50 cc
Year: 2006
Model code AY50AK6
