FRONT MASTER CYLINDER

REAR WHEEL FOR SUZUKI KATANA 50 2006

REAR CALIPER

Item numbers

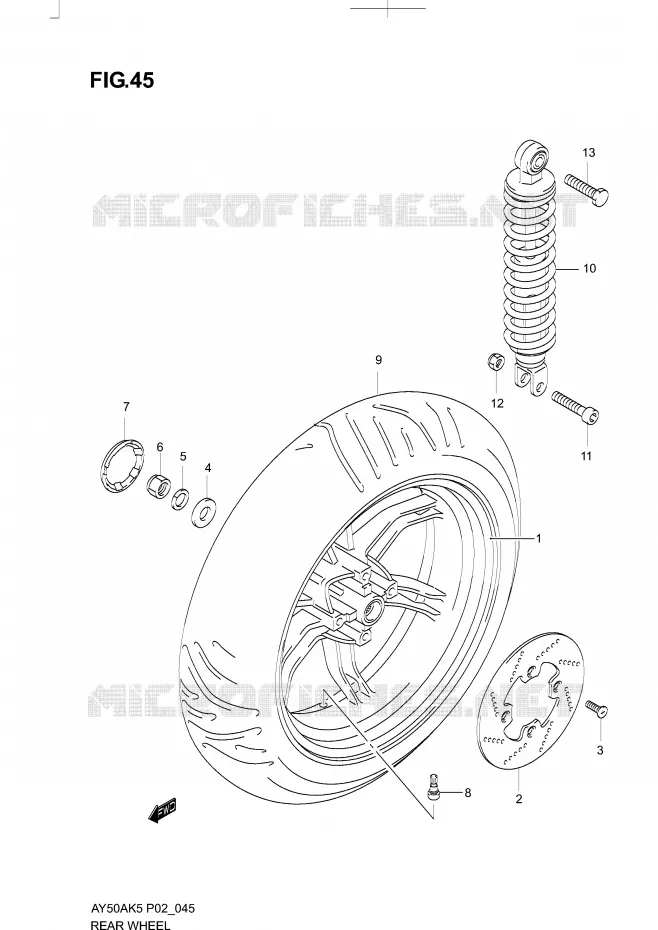

REAR WHEEL Suzuki SCOOTER 50 KATANA 2006 AY50AK6
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
1
WHEEL COMP, REAR (13M/CXMT3.50

64110-02EC0-EBA   6411002EC0EBA

6411002EC0EBA
Not available
1
WHEEL COMP, REAR (13M/CXMT3.50

64110-02EC0-EE3   6411002EC0EE3

6411002EC0EE3
Not available
2
DISC, REAR BRAKE

69211-35E00-000   6921135E00000

6921135E00000
Not available
3
BOLT, DISC

09689-E0017-000   09689E0017000

09689E0017000
Not available
4
WASHER (32X14.5X3)

09160-02E20-E0Z   0916002E20E0Z

0916002E20E0Z
Not available
5
WASHER SPRING

D8321-01145-000   D832101145000

D832101145000
Not available
6
NUT

D8311-60148-000   D831160148000

D831160148000
Not available
7
PLUG, REAR WHEEL (BLACK)

64312-02E00-NE2   6431202E00NE2

6431202E00NE2
Not available
8
DISCONTINUE
VALVE ASSY, WHEEL RIM

43130-07E00-000   4313007E00000

4313007E00000
Not available
9
TIRE, REAR WHEEL (120/70 - 12

65110-35E20-000   6511035E20000

6511035E20000
Not available
10
ABSORBER ASSY, REAR SHOCK

62100-02E00-163   6210002E00163

6210002E00163
Not available
11
BOLT, LOWER

D7107-10455-000   D710710455000

D710710455000
Not available
12
NUT

D8319-60108-000   D831960108000

D831960108000
Not available
13
BOLT, UPPER

D1007-10405-000   D100710405000

D100710405000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR WHEEL of your Suzuki of KATANA. Let us know if you have any questions.

Genuine parts for Suzuki 50 KATANA 2006

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 50 KATANA 2006

Select your Suzuki 2006 model

50 KATANA 2006 AY50AK6

Suzuki KATANA

Displacement: 50 cc
Year: 2006
Model code AY50AK6
