Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINCYLINDER HEAD

CRANKCASE FOR SUZUKI KATANA 50 2006

LEFT CRANKCASE COVER

Item numbers

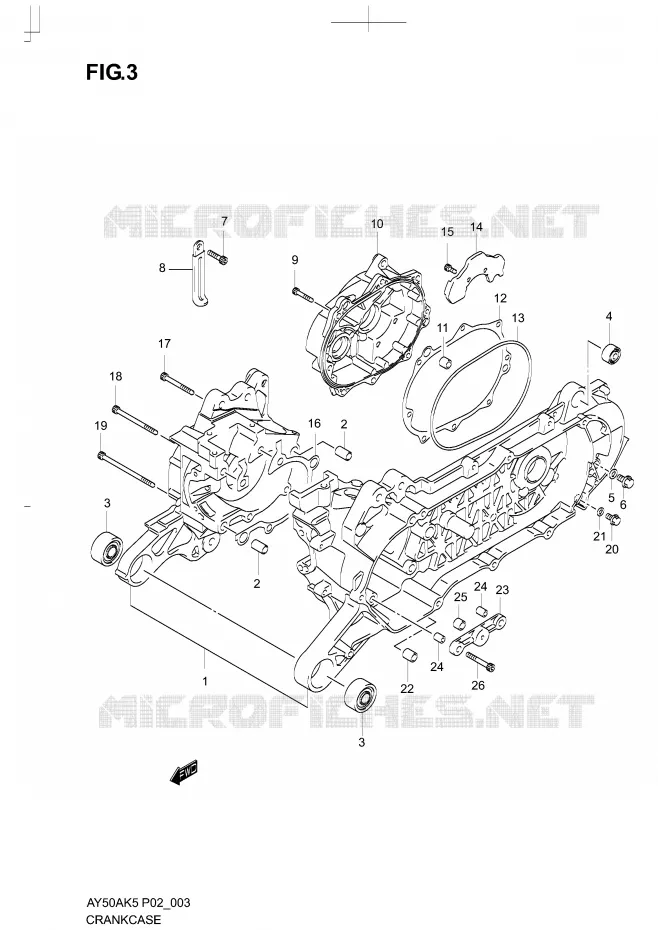

CRANKCASE Suzuki SCOOTER 50 KATANA 2006 AY50AK6
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
1
CRANKCASE ASSY, RH/LH

11300-02EA0-000   1130002EA0000

1130002EA0000
Not available
2
PIN

04211-02EA2-000   0421102EA2000

0421102EA2000
Not available
3
BUSH

09319-02E10-000   0931902E10000

0931902E10000
Not available
4
BUSH

09319-02EA0-000   0931902EA0000

0931902EA0000
Not available
5
GASKET

09168-02E20-000   0916802E20000

0916802E20000
Not available
6
BOLT, OIL LEVEL

D1557-08128-000   D155708128000

D155708128000
Not available
7
CLAMP

09404-06433-EE3   0940406433EE3

0940406433EE3
Not available
8
BOLT 6X12
BOLT

D7107-06125-000  

D710706125000
Not available
9
BOLT

D7107-06258-000   D710706258000

D710706258000
Not available
10
COVER, GEAR BOX

11431-02EA0-000   1143102EA0000

1143102EA0000
Not available
11
PIN

04211-02EA0-000   0421102EA0000

0421102EA0000
Not available
12
GASKET

11482-02EA0-000   1148202EA0000

1148202EA0000
Not available
13
O RING (D: 2.4, ID: 161)

09280-00029-C00   0928000029C00

0928000029C00
Not available
14
PLATE, GEAR BOX

11323-02EA0-000   1132302EA0000

1132302EA0000
Not available
15
SCREW

D2116-06128-000   D211606128000

D211606128000
Not available
16
GASKET, CRANKCASE

11481-02EA0-000   1148102EA0000

1148102EA0000
Not available
17
BOLT (6X55)

D7107-06558-000   D710706558000

D710706558000
Not available
18
BOLT (6X75)

D7107-06758-000   D710706758000

D710706758000
Not available
19
BOLT (6X100)

D7107-06008-000   D710706008000

D710706008000
Not available
20
BOLT, OIL DRAIN

D1557-06128-000   D155706128000

D155706128000
Not available
21
GASKET

09168-02E10-000   0916802E10000

0916802E10000
Not available
22
BUSH

09300-02EA0-000   0930002EA0000

0930002EA0000
Not available
23
CAP, STARTER IDLE GEAR

11382-02EA0-000   1138202EA0000

1138202EA0000
Not available
24
PIN

04211-02EA1-000   0421102EA1000

0421102EA1000
Not available
25
BUSH

09300-02EA0-000   0930002EA0000

0930002EA0000
Not available
26
BOLT

D7107-06308-000   D710706308000

D710706308000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of KATANA. Let us know if you have any questions.

Genuine parts for Suzuki 50 KATANA 2006

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 50 KATANA 2006

Select your Suzuki 2006 model

50 KATANA 2006 AY50AK6

Suzuki KATANA

Displacement: 50 cc
Year: 2006
Model code AY50AK6
