Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRAME FOR SUZUKI V-STROM 650 2019

BATTERY BOX - TOOLS

Item numbers

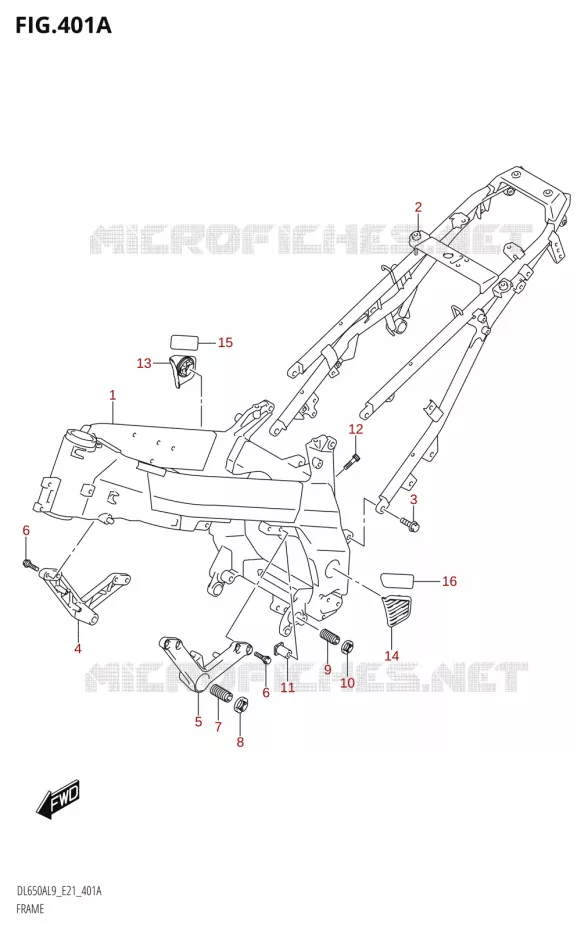

FRAME Suzuki MOTO 650 V-STROM 2019 DL650A L9 (E21)
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
1
FRAME COMP
FRAME (BLACK)

41100-27GB0-YAP   4110027GB0YAP

4110027GB0YAP

Unit Price

2
RAIL COMP, SEAT

41200-28K00-000  

41200-28K01-000
 4120028K00000

Unit Price

3
BOLT, CALIPER
BOLT (10X30)

09103-10379-000   0910310379000

0910310379000

Unit Price

4
BRACKET, ENGINE MOUNTING, R
BRACKET, ENG MTG RH (BLACK)

41911-06G90-YAP   4191106G90YAP

4191106G90YAP

Unit Price

5
BRACKET, ENGINE MOUNTING, L
BRACKET, ENG MTG LH (BLACK)

41912-06G90-YAP   4191206G90YAP

4191206G90YAP

Unit Price

6
BOLT, MUF SPRT
BOLT (8X30)

09106-08193-000   0910608193000

0910608193000

Unit Price

7
BOLT, CRANK CASE ADJUST CTR

41923-16G00-000   4192316G00000

4192316G00000

Unit Price

8
NUT,CRANK CASE ADJUST CTR
NUT, CRANK CASE ADJUST CTR

41922-19F20-000   4192219F20000

4192219F20000

Unit Price

9
BOLT, CRANK CASE ADJUST LWR

41921-16G00-000  

41921-16G01-000
 4192116G00000

Unit Price

10
NUT, CRANK CASE ADJUST LWR

41922-33E20-000   4192233E20000

4192233E20000

Unit Price

11
SPACER, MOUNTING RR UPR RH
SPACER, MOUNTING REAR UPPER RH

41941-19F01-000   4194119F01000

4194119F01000

Unit Price

12
BOLT (8X38)

09106-08168-000   0910608168000

0910608168000

Unit Price

13
COVER, PIVOT RH

43585-27G10-000   4358527G10000

4358527G10000

Unit Price

14
COVER, PIVOT LH

43595-27G00-000   4359527G00000

4359527G00000

Unit Price

15
TAPE, FRAME PIVOT RH

43585-28K00-000   4358528K00000

4358528K00000

Unit Price

16
TAPE, FRAME PIVOT LH

43595-28K00-000   4359528K00000

4359528K00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki V-STROM 650 ABS of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 650 V-STROM 2019

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 650 V-STROM 2019

Select your Suzuki 2019 model

Color : Glass Sparkle Black (YVB)
650 V-STROM 2019 DL650A L9 (E21)
Color : Glass Sparkle Black (YVB)
650 V-STROM 2019 DL650A L9 (E21)
Color : Pearl Glacier White (YWW)
650 V-STROM 2019 DL650A L9 (E21)
Color : Candy Daring Red (YYG)

V-STROM 650 ABS

Suzuki V-STROM

Displacement: 650 cc
Year: 2019
Model code DL650A L9 (E21)
Color: Glass Sparkle Black (YVB) / Pearl Glacier White (YWW) / Candy Daring Red (YYG)
