TRANSMISSION

GEAR SHIFTING ASSY FOR SUZUKI V-STROM 650 2019

FUEL EVAP SYSTEM

Item numbers

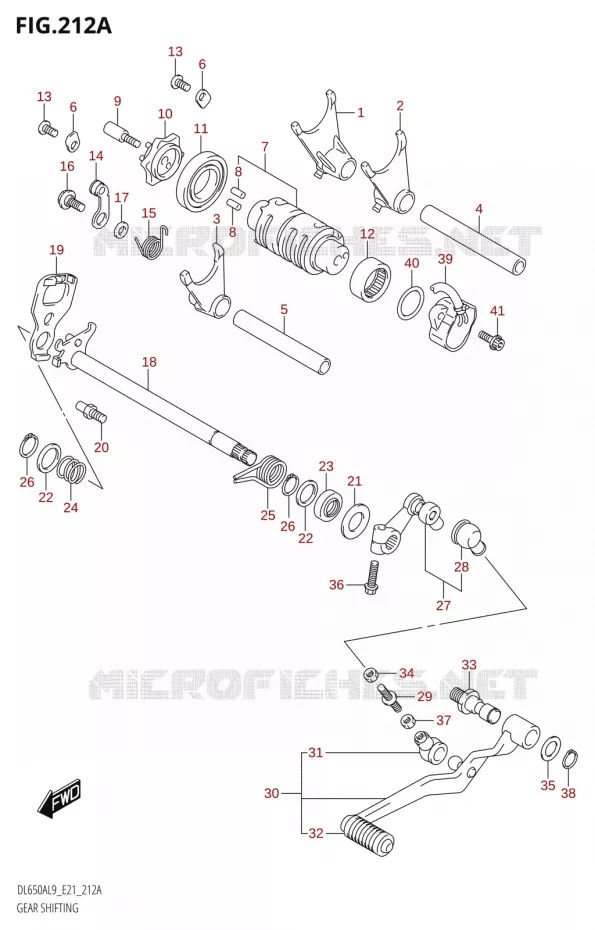

GEAR SHIFTING ASSY Suzuki MOTO 650 V-STROM 2019 DL650A L9 (E21)
1
2
3
4
5
6
6
7
8
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
1
FORK, GEAR SHIFT NO.1

25211-42E20-000   2521142E20000

2521142E20000

Unit Price

2
FORK, GEAR SHIFT NO.2

25221-42E20-000   2522142E20000

2522142E20000

Unit Price

3
FORK, GEAR SHIFT NO.3

25231-42E20-000   2523142E20000

2523142E20000

Unit Price

4
SHAFT,GEAR SHIFT FORK
SHAFT, GEAR SHIFT FORK

25411-26D01-000   2541126D01000

2541126D01000

Unit Price

5
SHAFT,GEAR SHIFT FORK,NO.1
SHAFT, GEAR SHIFT FORK, NO.1

25411-44B00-000   2541144B00000

2541144B00000

Unit Price

6
RETAINER
RETAINER

24741-21A00-000   2474121A00000

2474121A00000

Unit Price

7
CAM, GEAR SHIFT

25310-19F00-000   2531019F00000

2531019F00000

Unit Price

8
.PIN
.PIN

04221-04089-000   0422104089000

0422104089000

Unit Price

9
BOLT, GEAR SHIFT CAM PLATE

25312-42F01-000   2531242F01000

2531242F01000

Unit Price

10
PLATE, GEAR SHIFT CAM

25381-19F20-000   2538119F20000

2538119F20000

Unit Price

11
BEARING, ROLLER KOYO<br />BEARING (25X47X8)
BEARING, ROLLER KOYO
BEARING (25X47X8)

09262-25006-000   0926225006000

0926225006000

Unit Price

12
R BEARING 25X32X12<br />BEARING (25X32X12)
R BEARING 25X32X12
BEARING (25X32X12)

09263-25018-000   0926325018000

0926325018000

Unit Price

13
SCREW

02112-0612A-000  

02112-0612B-000
 021120612A000

Unit Price

14
STOPPER,SHIFT CAM
STOPPER, SHIFT CAM

25350-35F00-000  

25350-35F10-000
 2535035F00000

Unit Price

15
SPRING,SHIFT
SPRING, SHIFT

25355-35F01-000   2535535F01000

2535535F01000

Unit Price

16
BOLT<br />BOLT (6X14.3)
BOLT
BOLT (6X14.3)

09111-06041-000   0911106041000

0911106041000

Unit Price

17
THRUST WASHER<br />WASHER
THRUST WASHER
WASHER

08211-06141-000   0821106141000

0821106141000

Unit Price

18
SHAFT, GEAR SHIFT

25510-19F10-000   2551019F10000

2551019F10000

Unit Price

19
PLATE, GEAR SHIFT CAM DRIVE

25512-06G10-000  

25512-06G20-000
 2551206G10000

Unit Price

20
STOPPER,GEAR SHIFT ARM
STOPPER, GEAR SHIFT ARM

25671-01011-000   2567101011000

2567101011000

Unit Price

21
WASHER (14X29X0.8)
WASHER (14X29X0.8)

09160-14016-000   0916014016000

0916014016000

Unit Price

22
WASHER,GEAR SHIFT SH<br />SHIM (14X22X1.0)
WASHER, GEAR SHIFT SH
SHIM (14X22X1.0)

09181-14167-000   0918114167000

0918114167000

Unit Price

23
SEAL, OIL(14X22X7.3)
OIL SEAL (14X22X7.3)

09283-14005-000   0928314005000

0928314005000

Unit Price

24
SPRING
SPRING

09440-17009-000   0944017009000

0944017009000

Unit Price

25
SPRING
SPRING

09444-20001-000   0944420001000

0944420001000

Unit Price

26
CIRCLIP
CIRCLIP

08331-3114A-000   083313114A000

083313114A000

Unit Price

27
ARM, GEAR SHIFT LINK

25520-27G00-000  

25520-27G01-000
 2552027G00000

Unit Price

28
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

29
ROD, GEAR SHIFT LINK

25525-27G00-000   2552527G00000

2552527G00000

Unit Price

30
LEVER ASSY, GEAR SHIFT

25600-11J00-000  

25600-11J01-000
 2560011J00000

Unit Price

31
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

32
.RUBBER,GEAR SHIFT PEDAL
.RUBBER, GEAR SHIFT PEDAL

25652-20C00-000   2565220C00000

2565220C00000

Unit Price

33
SHAFT, GEAR SHIFT LEVER

25617-03F10-000   2561703F10000

2561703F10000

Unit Price

34
NUT
NUT

08310-00067-000   0831000067000

0831000067000

Unit Price

35
SEAL WASHER<br />WASHER (12.5X20X1.0)
SEAL WASHER
WASHER (12.5X20X1.0)

09160-12011-000  

0916012011000
Not available
36
BOLT

01547-0620A-000   015470620A000

015470620A000

Unit Price

37
NUT
NUT

09140-06025-000   0914006025000

0914006025000

Unit Price

38
CIRCLIP
CIRCLIP

08331-3112A-000   083313112A000

083313112A000

Unit Price

39
37730-44H11

37730-44H01-000  

3773044H01000
Not available
40
O RING<br />O RING (D:2.4,ID:26.2)
O RING
O RING (D:2.4, ID:26.2)

09280-26005-000   0928026005000

0928026005000
Not available
41
BOLT
BOLT (5X16)

09106-05023-000   0910605023000

0910605023000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki V-STROM 650 ABS of V-STROM. Let us know if you have any questions.
