RADIATOR

RADIATOR HOSE FOR SUZUKI V-STROM 650 2019

ANTI POLLUTION SYSTEM

Item numbers

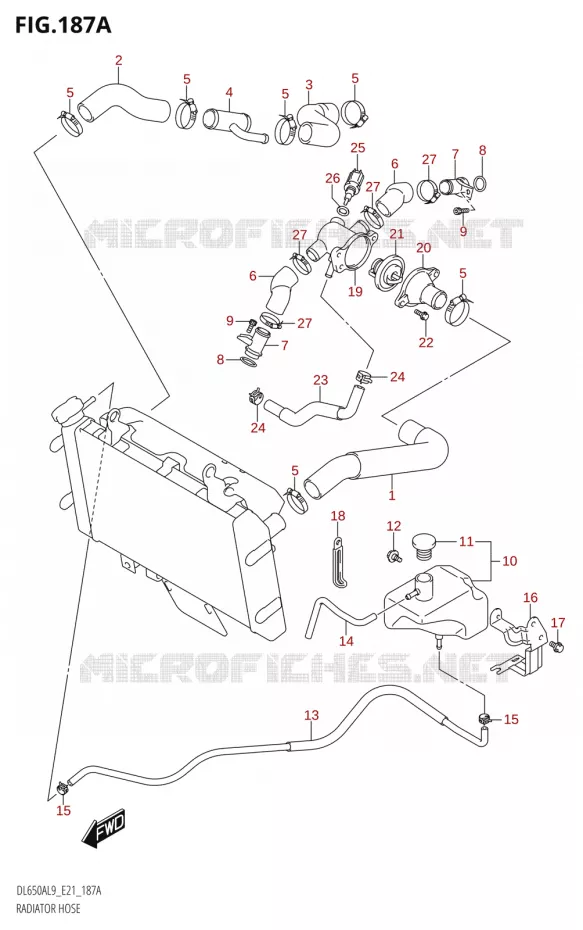

RADIATOR HOSE Suzuki MOTO 650 V-STROM 2019 DL650A L9 (E21)
1
2
3
4
5
5
5
5
5
5
6
6
7
7
8
8
9
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
24
25
26
27
27
27
27
1
HOSE, RADIATOR INLET

17851-11J00-000   1785111J00000

1785111J00000

Unit Price

2
HOSE, RADIATOR OUTLET NO.1

17852-44H20-000   1785244H20000

1785244H20000

Unit Price

3
HOSE, RADIATOR OUTLET NO.2

17854-44H00-000   1785444H00000

1785444H00000

Unit Price

4
UNION, WATER HOSE THREE WAY

17880-44H00-000   1788044H00000

1788044H00000

Unit Price

5
CLAMP, WATER HOSE
CLAMP

09402-35501-000   0940235501000

0940235501000

Unit Price

6
HOSE,CONNECTOR INLET
HOSE, CONNECTOR INLET

17853-19F00-000   1785319F00000

1785319F00000

Unit Price

7
UNION,CONNECTOR HOSE
UNION, CONNECTOR HOSE

17890-06G20-000   1789006G20000

1789006G20000

Unit Price

8
O RING

09280-18008-000  

09280-18009-000
 0928018008000

Unit Price

9
BOLT

07130-0612A-000   071300612A000

071300612A000

Unit Price

10
TANK ASSY, RESERVOIR

17910-27G10-000   1791027G10000

1791027G10000

Unit Price

11
.CAP,RESERVOIR TANK
.CAP, RESERVOIR TANK

17931-02FA0-000   1793102FA0000

1793102FA0000

Unit Price

12
BOLT
BOLT (6X12)

09111-06085-000   0911106085000

0911106085000

Unit Price

13
HOSE SET, RESERVOIR TANK INLET
HOSE SET, RSVR TANK INLET

17900-27810-000   1790027810000

1790027810000

Unit Price

14
HOSE, RESERVOIR TANK OVFL
HOSE, RESERVOIR TANK OVER FLOW

17982-15H00-000   1798215H00000

1798215H00000

Unit Price

15
CLIP
CLIP

09401-08411-000  

0940108411000
Not available
16
BRACKET, RESERVOIR TANK
BRACKET, RSVR TANK

17920-27G10-000   1792027G10000

1792027G10000

Unit Price

17
BOLT
BOLT

01550-0610A-000  

01550-0610B-000
 015500610A000

Unit Price

18
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

19
CONNECTOR,THERMOSTAT,INLET
CONNECTOR, THERMOSTAT, INLET

17662-02F11-000   1766202F11000

1766202F11000

Unit Price

20
CAP,THERMOSTAT CONNECTOR
CAP, THERMOSTAT CONNECTOR

17663-17G00-000   1766317G00000

1766317G00000

Unit Price

21
THERMOSTAT COMP, WATER

17670-06G60-000  

17670-06G61-000
 1767006G60000

Unit Price

22
BOLT

01547-0616A-000   015470616A000

015470616A000

Unit Price

23
HOSE, CONNECTOR TO WATER PUMP
HOSE, CONNECTOR TO WTR PMP

17856-44H00-000   1785644H00000

1785644H00000

Unit Price

24
CLIP
CLIP

09401-12414-000   0940112414000

0940112414000

Unit Price

25
SENSOR, TEMP

13650-49X00-000   1365049X00000

1365049X00000

Unit Price

26
WASHER<br />GASKET (12X17X1)
WASHER
GASKET (12X17X1)

09168-12017-000   0916812017000

0916812017000

Unit Price

27
CLAMP

09402-28513-000   0940228513000

0940228513000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR HOSE of your Suzuki V-STROM 650 ABS of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 650 V-STROM 2019

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 650 V-STROM 2019

Select your Suzuki 2019 model

Color : Glass Sparkle Black (YVB)
650 V-STROM 2019 DL650A L9 (E21)
Color : Glass Sparkle Black (YVB)
650 V-STROM 2019 DL650A L9 (E21)
Color : Pearl Glacier White (YWW)
650 V-STROM 2019 DL650A L9 (E21)
Color : Candy Daring Red (YYG)

V-STROM 650 ABS

Suzuki V-STROM

Displacement: 650 cc
Year: 2019
Model code DL650A L9 (E21)
Color: Glass Sparkle Black (YVB) / Pearl Glacier White (YWW) / Candy Daring Red (YYG)
