FUEL PUMP

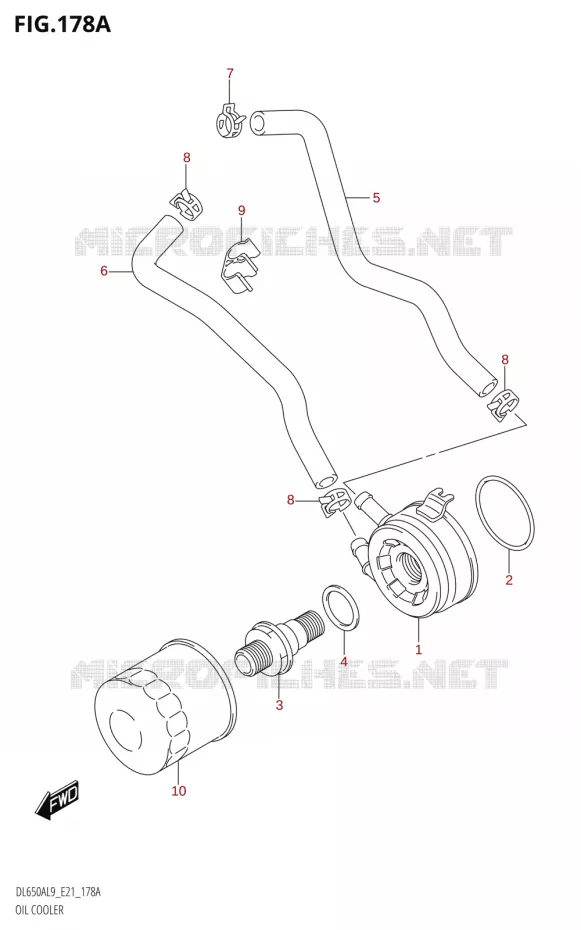

OIL COOLER FOR SUZUKI V-STROM 650 2019

WATER PUMP

Item numbers

COOLER ASSY, OIL

16600-44H00-000 1660044H00000

$525,97

Unit Price

O RING
O RING (D:3.1, ID:54.5)

09280-55002-000 0928055002000

$5,97

Unit Price

BOLT, OIL COOLER UNION

16591-02F00-000 1659102F00000

$48,97

Unit Price

SHIM(0.7)
SHIM (25X34X0.7)

09181-25160-000 0918125160000

$5,97

Unit Price

HOSE, OIL COOLER INLET
HOSE, OIL COOLER IN

16461-44H00-000 1646144H00000

$25,97

Unit Price

HOSE, OIL COOLER OUTLET
HOSE, OIL COOLER OUT

16471-44H00-000 1647144H00000

$27,97

Unit Price

CLIP, BREATHER HOSE
CLIP (ID:16.5)

09401-16407-000 0940116407000

$3,97

Unit Price

CLIP

09401-16409-000 0940116409000

$4,97

Unit Price

CLAMP

09408-00267-000 0940800267000

$4,97

Unit Price

FILTER ASSY, ENGINE OIL

16510-07J00-000

16510-07J10-000

$21,45

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL COOLER of your Suzuki V-STROM 650 ABS of V-STROM. Let us know if you have any questions.

Select your Suzuki 2019 model

V-STROM 650 ABS

Suzuki V-STROM

Displacement: 650 cc
Year: 2019
Model code DL650A L9 (E21)
Color: Glass Sparkle Black (YVB) / Pearl Glacier White (YWW) / Candy Daring Red (YYG)
