Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

GASKET SET

CYLINDER HEAD FOR SUZUKI V-STROM 650 2019

CYLINDER HEAD

Item numbers

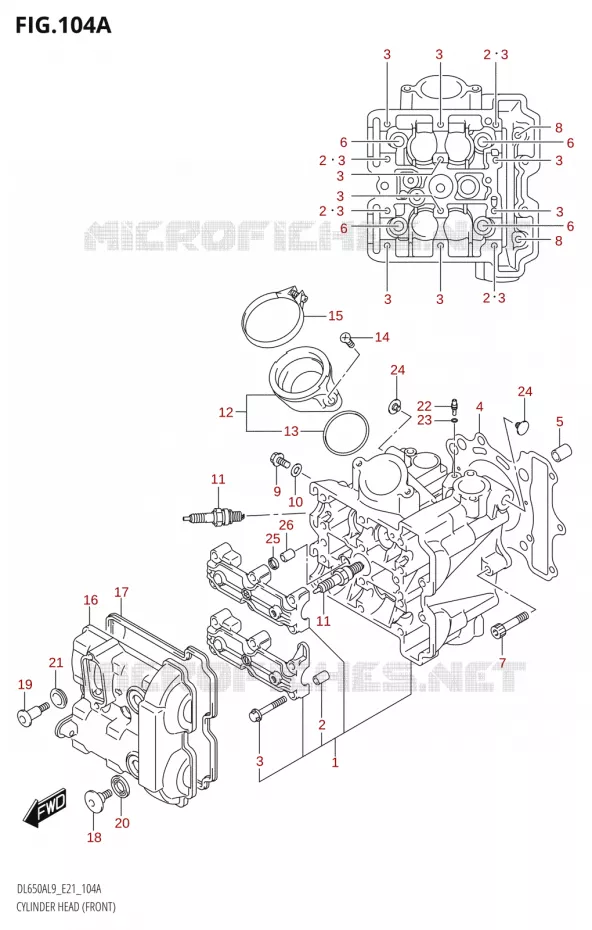

CYLINDER HEAD Suzuki MOTO 650 V-STROM 2019 DL650A L9 (E21)
1
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
4
5
6
6
6
6
7
8
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
1
HEAD ASSY, CYLINDER FRONT

11101-18K00-000   1110118K00000

1110118K00000
Not available
2
.PIN (8X11)
.PIN (8X11)

09206-08001-000   0920608001000

0920608001000

Unit Price

3
BOLT, CAMSHAFT HOUSIN
.BOLT (6X40)

09103-06266-000   0910306266000

0910306266000

Unit Price

4
GASKET,CYLINDER HEAD
GASKET, CYLINDER HEAD

11141-20F00-000   1114120F00000

1114120F00000

Unit Price

5
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

6
BOLT, CYLINDER HEAD(L:160)
BOLT, CYL HEAD (10X160)

11117-44H00-000   1111744H00000

1111744H00000

Unit Price

7
BOLT

07120-0640A-000  

07120-0640B-000
 071200640A000

Unit Price

8
BOLT (6X70)
BOLT (6X70)

09103-06103-000   0910306103000

0910306103000

Unit Price

9
BOLT

01550-0612A-000   015500612A000

015500612A000

Unit Price

10
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
11
PLUG, SPARK (MR8E-9)

09482-00646-000   0948200646000

0948200646000

Unit Price

12
PIPE ASSY, INTAKE FRONT

13101-17G10-000  

13101-17G11-000
 1310117G10000

Unit Price

13
O RING(D:2.4,ID:47X42)
O RING(D:2.4, ID:47X42)

09280-46006-000  

09280-46007-000
 0928046006000

Unit Price

14
SCREW
SCREW

02122-0616B-000   021220616B000

021220616B000

Unit Price

15
CLAMP, INTAKE PIPE

13827-40H01-000  

1382740H01000
Not available
16
COVER, CYLINDER HEAD FRONT

11171-18K00-000   1117118K00000

1117118K00000
Not available
17
GASKET,CYLINDER HEAD COVER
GASKET, CYLINDER HEAD COVER

11173-19F01-000   1117319F01000

1117319F01000

Unit Price

18
BOLT (7X17.5)
BOLT (7X17.5)

09106-07021-000   0910607021000

0910607021000

Unit Price

19
BOLT,L:19<br />BOLT (7X31)
BOLT, L:19
BOLT (7X31)

09106-07010-000   0910607010000

0910607010000

Unit Price

20
WASHER, CYL HEAD COVER
WASHER, CYL HEAD COVER (L:5.5)

11191-27E00-000   1119127E00000

1119127E00000

Unit Price

21
CUSHION,HEAD COVER BOLT
CUSHION, HEAD COVER BOLT

11192-13E00-000   1119213E00000

1119213E00000

Unit Price

22
JET, OIL GALLERY
JET (#80)

09493-80005-000   0949380005000

0949380005000

Unit Price

23
O RING<br />O RING (D:1.2,ID:4)
O RING
O RING (D:1.2, ID:4)

09280-04004-000   0928004004000

0928004004000

Unit Price

24
CAP, ENGINE MOUNTING RR RH

11151-27G00-000  

11151-27G01-000
 1115127G00000

Unit Price

25
GASKET, 2ND AIR PASSAGE

11182-35F10-000   1118235F10000

1118235F10000

Unit Price

26
PIN (8.2X10X13)

09206-10016-000   0920610016000

0920610016000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki V-STROM 650 ABS of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 650 V-STROM 2019

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 650 V-STROM 2019

Select your Suzuki 2019 model

Color : Glass Sparkle Black (YVB)
650 V-STROM 2019 DL650A L9 (E21)
Color : Glass Sparkle Black (YVB)
650 V-STROM 2019 DL650A L9 (E21)
Color : Pearl Glacier White (YWW)
650 V-STROM 2019 DL650A L9 (E21)
Color : Candy Daring Red (YYG)

V-STROM 650 ABS

Suzuki V-STROM

Displacement: 650 cc
Year: 2019
Model code DL650A L9 (E21)
Color: Glass Sparkle Black (YVB) / Pearl Glacier White (YWW) / Candy Daring Red (YYG)
