FUEL TANK COVER (DL650XA:M4:E33)

FAIRING FOR SUZUKI V-STROM 650 2024

FRONT FENDER

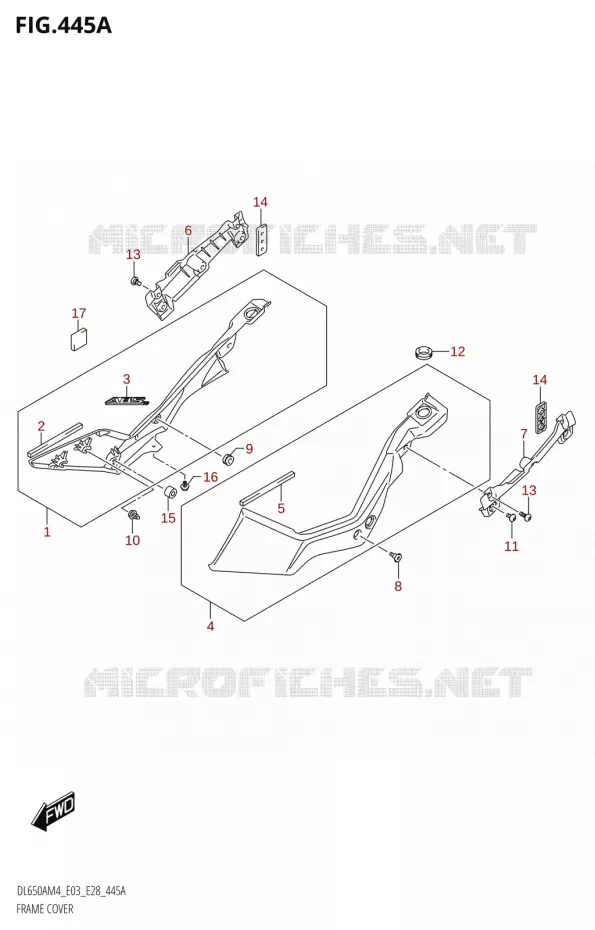

FAIRING Suzuki MOTO 650 V-STROM 2024 DL650AM4
1
COVER, FRAME, R
COVER, FRAME, R(GRAY, BLACK)

47110-28K01-GWM   4711028K01GWM

4711028K01GWM

Unit Price

2
.CUSHION, FRAME COVER FR FR

47121-28K00-000   4712128K00000

4712128K00000

Unit Price

3
EMBLEM, 'ABS'
.EMBLEM, ABS(GRAY, BLACK)

68131-28K00-GWM   6813128K00GWM

6813128K00GWM

Unit Price

4
COVER COMP, FRAME, L
COVER, FRAME, L

47210-28K00-000   4721028K00000

4721028K00000

Unit Price

5
.CUSHION, FRAME COVER FR FR

47121-28K00-000   4712128K00000

4712128K00000

Unit Price

6
COVER, FRAME REAR RH
COVER, FRAME REAR, R

47411-31J10-000   4741131J10000

4741131J10000

Unit Price

7
COVER, FRAME REAR LH
COVER, FRAME REAR, L

47511-31J10-000   4751131J10000

4751131J10000

Unit Price

8
SCREW, FRAME CO
SCREW(6X20)

09139-06211-000   0913906211000

0913906211000

Unit Price

9
CUSHION<br />CUSHION(9X18X9.5)
CUSHION
CUSHION(9X18X9.5)

09320-09016-000   0932009016000

0932009016000

Unit Price

10
CLIP

09409-10313-000   0940910313000

0940910313000

Unit Price

11
SCREW
SCREW(6X12)

47913-31J00-000   4791331J00000

4791331J00000

Unit Price

12
CUSHION
CUSHION(20X32X9)

09320-20011-000   0932020011000

0932020011000

Unit Price

13
SCREW(6X16)

09139-06120-000   0913906120000

0913906120000

Unit Price

14
SPACER COMP, FRAME COVER
SPACER, FRAME COVER

47510-28K00-000   4751028K00000

4751028K00000

Unit Price

15
CENTER STAND STOP<br />CUSHION
CENTER STAND STOP
CUSHION

09321-10001-000   0932110001000

0932110001000

Unit Price

16
CLIP

09409-06328-000   0940906328000

0940906328000

Unit Price

17
CUSHION, FRAME COVER

47123-28K00-000   4712328K00000

4712328K00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FAIRING of your Suzuki V-STROM 650 ABS of V-STROM. Let us know if you have any questions.
