REAR WHEEL (DL650XA:M4:E33)

REAR CALIPER FOR SUZUKI V-STROM 650 2024

REAR BRAKE MASTER CYLINDER

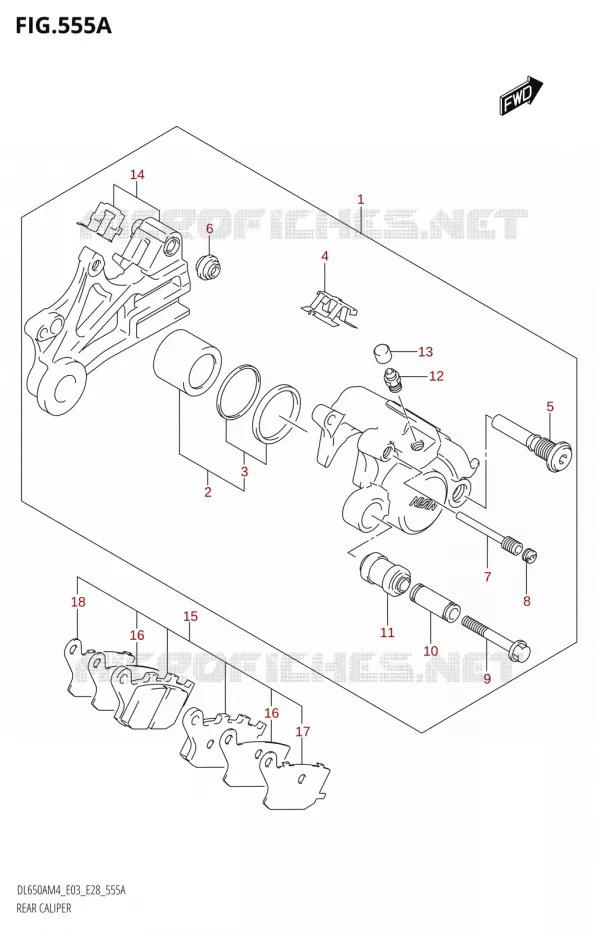

REAR CALIPER Suzuki MOTO 650 V-STROM 2024 DL650AM4
1
CALIPER ASSY, RR

69100-28K00-999   6910028K00999

6910028K00999

Unit Price

2
.PISTON SET

69100-04810-000   6910004810000

6910004810000

Unit Price

3
..SEAL SET, PISTON

69100-04820-000   6910004820000

6910004820000

Unit Price

4
.SPRING, PAD

69115-06G00-000   6911506G00000

6911506G00000

Unit Price

5
.PIN, BOLT

59305-36E00-000   5930536E00000

5930536E00000

Unit Price

6
.BOOT
.BOOT

59303-14500-000   5930314500000

5930314500000
Not available
7
.PIN,PAD
.PIN, PAD

69141-40F00-000   6914140F00000

6914140F00000

Unit Price

8
.PLUG,PIN
.PLUG, PIN

59146-21E10-000   5914621E10000

5914621E10000

Unit Price

9
.BOLT

69182-04F00-000   6918204F00000

6918204F00000

Unit Price

10
.SLEEVE

69185-04F00-000   6918504F00000

6918504F00000

Unit Price

11
.BOOT, SLEEVE

69186-04F00-000   6918604F00000

6918604F00000

Unit Price

12
.BLEEDER
.BLEEDER

59121-01A00-000   5912101A00000

5912101A00000

Unit Price

13
.CAP, BLEEDER

59122-46H00-000   5912246H00000

5912246H00000

Unit Price

14
.BRACKET

69150-28K00-000   6915028K00000

6915028K00000

Unit Price

15
PAD & RETAINER SET

69100-06830-000   6910006830000

6910006830000

Unit Price

16
.INSULATOR

69132-06G00-000   6913206G00000

6913206G00000

Unit Price

17
.RETAINER

69133-06G00-000   6913306G00000

6913306G00000

Unit Price

18
.RETAINER

69134-06G00-000   6913406G00000

6913406G00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR CALIPER of your Suzuki V-STROM 650 ABS of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 650 V-STROM 2024
