Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

OIL PUMP

FUEL PUMP FOR SUZUKI V-STROM 650 2024

OIL COOLER

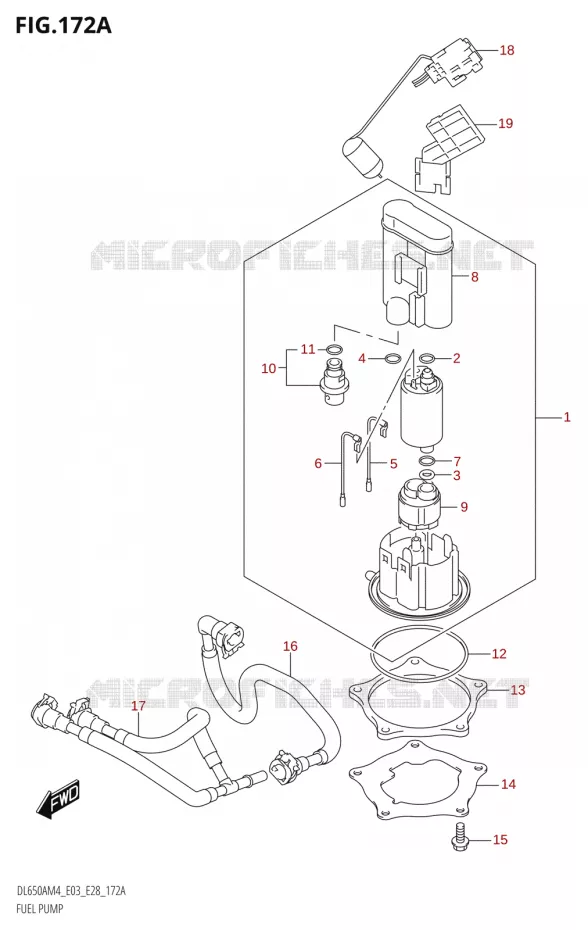

FUEL PUMP Suzuki MOTO 650 V-STROM 2024 DL650AM4
1
PUMP ASSY, FUEL

15100-28K00-000   1510028K00000

1510028K00000

Unit Price

2
.O-RING

15113-05H00-000   1511305H00000

1511305H00000

Unit Price

3
.O-RING

15113-17K00-000   1511317K00000

1511317K00000

Unit Price

4
.O-RING
.O-RING

15113-35F00-000   1511335F00000

1511335F00000

Unit Price

5
.WIRE, EARTH

15114-17K00-000   1511417K00000

1511417K00000

Unit Price

6
.WIRE, LEAD

15115-17K00-000   1511517K00000

1511517K00000

Unit Price

7
.COLLAR

15116-17K00-000   1511617K00000

1511617K00000

Unit Price

8
.FILTER

15310-17K00-000   1531017K00000

1531017K00000

Unit Price

9
.STRAINER

15420-17K00-000   1542017K00000

1542017K00000

Unit Price

10
.REGULATOR

15610-17K00-000   1561017K00000

1561017K00000

Unit Price

11
..O-RING

15113-48H00-000   1511348H00000

1511348H00000

Unit Price

12
O-RING, FUEL PUMP

15201-07L00-000   1520107L00000

1520107L00000

Unit Price

13
PLATE, FUEL PUMP INNER

15122-17K00-000   1512217K00000

1512217K00000

Unit Price

14
PLATE, FUEL PUMP OUTER

15121-28K00-000   1512128K00000

1512128K00000

Unit Price

15
BOLT

07120-0616A-000   071200616A000

071200616A000

Unit Price

16
HOSE COMP, FUEL NO.1
HOSE, FUEL NO.1

15810-28K00-000   1581028K00000

1581028K00000

Unit Price

17
HOSE COMP, FUEL NO.2
HOSE, FUEL NO.2

15820-28K00-000   1582028K00000

1582028K00000

Unit Price

18
GAUGE ASSY, FUEL LEVEL SENDER

34810-28K00-000   3481028K00000

3481028K00000

Unit Price

19
ATTACHMENT, FUEL LEVEL GAUGE

34815-28K00-000   3481528K00000

3481528K00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL PUMP of your Suzuki V-STROM 650 ABS of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 650 V-STROM 2024
