THROTTLE BODY (DL650A:M4:E33)

THROTTLE BODY (DL650XA:M4:E03) FOR SUZUKI V-STROM 650 2024

THROTTLE BODY (DL650XA:M4:E28)

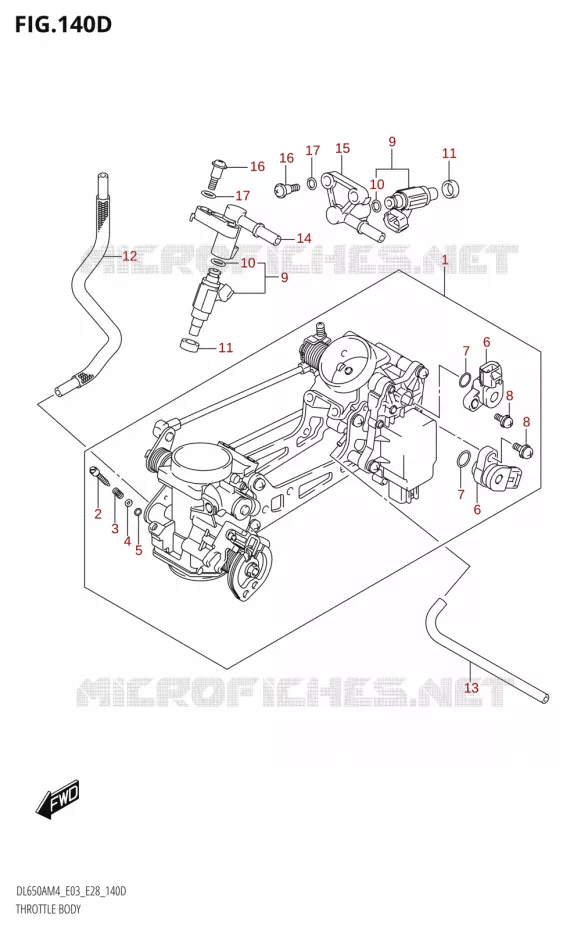

THROTTLE BODY (DL650XA:M4:E03) Suzuki MOTO 650 V-STROM 2024 DL650AM4
1
BODY ASSY, THROTTLE

13405-28K00-000   1340528K00000

1340528K00000

Unit Price

2
.SCREW
.SCREW

13269-33E00-000   1326933E00000

1326933E00000

Unit Price

3
.SPRING,THROTTLE SCREW
.SPRING, THROTTLE SCREW

13268-48700-000   1326848700000

1326848700000

Unit Price

4
.WASHER
.WASHER

13606-47A00-000   1360647A00000

1360647A00000

Unit Price

5
O RING, PILOT AIR SCREW
.O-RING

13295-29901-000   1329529901000

1329529901000

Unit Price

6
.SENSOR

13580-27G21-000   1358027G21000

1358027G21000

Unit Price

7
.O-RING

13575-29G01-000   1357529G01000

1357529G01000

Unit Price

8
.SCREW
.SCREW

13605-02F00-000   1360502F00000

1360502F00000

Unit Price

9
INJECTOR ASSY

15710-11J00-000   1571011J00000

1571011J00000

Unit Price

10
.O-RING

15717-58B00-000   1571758B00000

1571758B00000

Unit Price

11
SEAL

15722-29G00-000   1572229G00000

1572229G00000

Unit Price

12
HOSE

13683-28K01-000   1368328K01000

1368328K01000

Unit Price

13
HOSE

13683-44H11-000   1368344H11000

1368344H11000

Unit Price

14
DELIVERY PIPE

15731-11J00-000   1573111J00000

1573111J00000

Unit Price

15
DELIVERY PIPE

15732-11J00-000   1573211J00000

1573211J00000

Unit Price

16
SCREW

13601-11J00-000   1360111J00000

1360111J00000

Unit Price

17
PACKING

13602-29G01-000   1360229G01000

1360229G01000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the THROTTLE BODY (DL650XA:M4:E03) of your Suzuki V-STROM 650 ABS of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 650 V-STROM 2024
