FAIRING (DL650XA:M4:E33)

UNDER COWLING (DL650XA:M4:E03) FOR SUZUKI V-STROM 650 2024

UNDER COWLING (DL650XA:M4:E28)

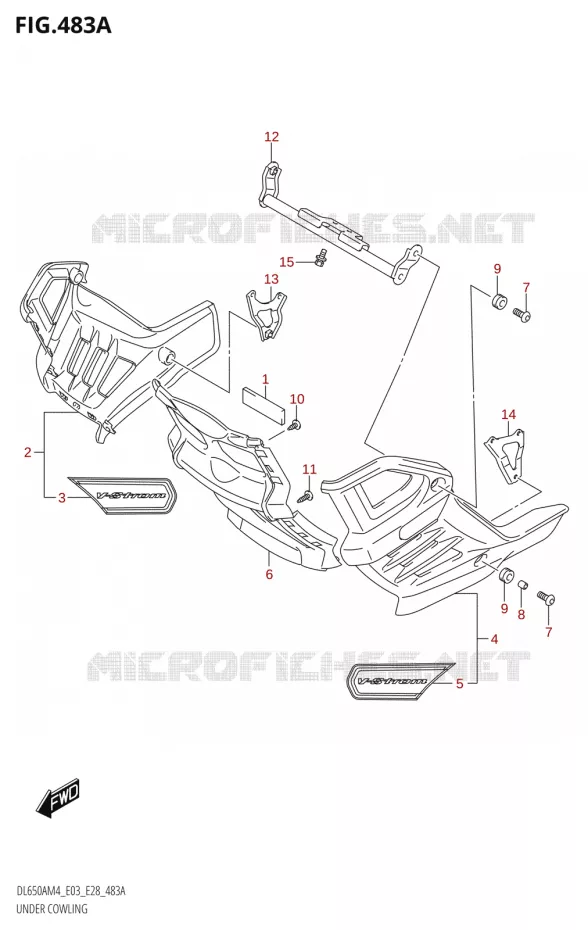

UNDER COWLING (DL650XA:M4:E03) Suzuki MOTO 650 V-STROM 2024 DL650AM4
1
CUSHION, FRAME COVER LWR NO.1

47612-44H00-000   4761244H00000

4761244H00000

Unit Price

2
COWLING, UNDER RH(BLACK)
UNDER COWL, R(BLACK)

94470-11J00-291   9447011J00291

9447011J00291

Unit Price

3
EMBLEM, UNDER COWLING RH
.EMBLEM, UNDER COWLING, R

68181-11J00-000   6818111J00000

6818111J00000

Unit Price

4
UNDER COWL LH(BLACK)
UNDER COWL, L(BLACK)

94480-11J00-291   9448011J00291

9448011J00291

Unit Price

5
EMBLEM, UNDER COWLING LH
.EMBLEM, UNDER COWLING, L

68191-11J00-000   6819111J00000

6819111J00000

Unit Price

6
COWLING, UNDER CTR(BLACK)

94491-11J00-291   9449111J00291

9449111J00291

Unit Price

7
BOLT
SCREW(6X16)

09139-06139-000   0913906139000

0913906139000

Unit Price

8
SPACER,6.5X10X7
SPACER, 6.5X10X7

09180-06263-000  

09180-06283-000
 0918006263000

Unit Price

9
CUSHION<br />CUSHION(9X18X9.5)
CUSHION
CUSHION(9X18X9.5)

09320-09016-000   0932009016000

0932009016000

Unit Price

10
SCREW

03541-0510B-000   035410510B000

035410510B000

Unit Price

11
SCREW
SCREW

03541-0516B-000   035410516B000

035410516B000

Unit Price

12
BRACKET, UNDER
BRACKET, UNDER COWLING FR

94520-11J00-000   9452011J00000

9452011J00000

Unit Price

13
BRACKET, UNDER
BRACKET, UNDER COWLING, R

94530-11J00-000   9453011J00000

9453011J00000

Unit Price

14
BRACKET, UNDER
BRACKET, UNDER COWLING, L

94540-11J00-000   9454011J00000

9454011J00000

Unit Price

15
BOLT 6X16 W/PL-WASHE
BOLT(6X16)

09116-06006-000   0911606006000

0911606006000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the UNDER COWLING (DL650XA:M4:E03) of your Suzuki V-STROM 650 ABS of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 650 V-STROM 2024
