Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

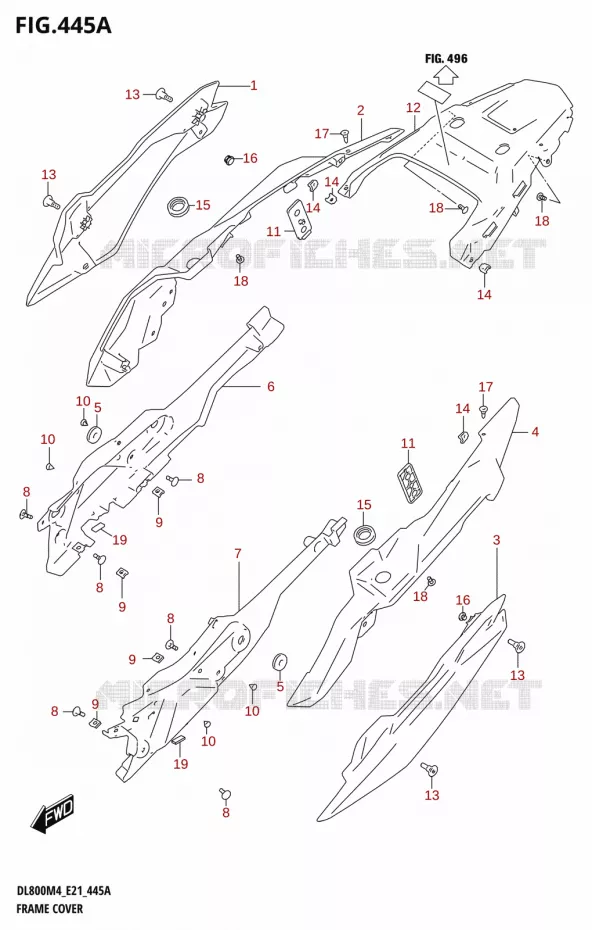

FRONT FAIRING BRACKET

FAIRING FOR SUZUKI V-STROM 800 2024

FAIRING

FAIRING Suzuki MOTO 800 V-STROM 2024 DL800RQ M4 (E21)
1
COVER COMP, FRAME SIDE, R
COVER, FRAME SIDE, R(BLACK)

47410-25L10-019   4741025L10019

4741025L10019

Unit Price

2
COVER, FRAME REAR, R
COVER, FRAME REAR, R(BLACK)

47411-25LA0-YVB   4741125LA0YVB

4741125LA0YVB

Unit Price

3
COVER COMP, FRAME SIDE, L
COVER, FRAME SIDE, L(BLACK)

47510-25L10-019   4751025L10019

4751025L10019

Unit Price

4
COVER, FRAME REAR, L
COVER, FRAME REAR, L(BLACK)

47511-25LA0-YVB   4751125LA0YVB

4751125LA0YVB

Unit Price

5
CUSHION(8X26X7)
CUSHION(8X26X7)

09320-08018-000  

09320-08513-000
 0932008018000

Unit Price

6
COVER, FRAME INNER, R

47311-25LA0-000   4731125LA0000

4731125LA0000

Unit Price

7
COVER, FRAME INNER, L

47321-25LA0-000   4732125LA0000

4732125LA0000

Unit Price

8
CLIP

94479-35F00-000   9447935F00000

9447935F00000

Unit Price

9
NUT, STEERING<br />NUT(M5)
NUT, STEERING
NUT(M5)

09148-05038-000   0914805038000

0914805038000

Unit Price

10
PLUG(OD:10)

09250-06017-000   0925006017000

0925006017000

Unit Price

11
SPACER COMP, FRAME COVER
SPACER, FRAME COVER

47510-28K00-000   4751028K00000

4751028K00000

Unit Price

12
COVER, FRAME REAR CTR
COVER, FRAME REAR CTR(BLACK)

47711-25LA0-019   4771125LA0019

4771125LA0019

Unit Price

13
SCREW(6X24)

47913-06L00-000   4791306L00000

4791306L00000

Unit Price

14
NUT
NUT(M5)

09148-05045-000   0914805045000

0914805045000

Unit Price

15
CUSHION
CUSHION(20X32X9)

09320-20011-000   0932020011000

0932020011000

Unit Price

16
CUSHION

09321-05023-000   0932105023000

0932105023000

Unit Price

17
CLIP<br />CLIP(5.9X20.5)
CLIP
CLIP(5.9X20.5)

09409-06314-000   0940906314000

0940906314000

Unit Price

18
SCREW

03541-0512A-000   035410512A000

035410512A000

Unit Price

19
CUSHION, CENYER PANEL
CUSHION, CTR PANEL UPR

94413-08F00-000   9441308F00000

9441308F00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FAIRING of your Suzuki V-STROM 800SE of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 800 V-STROM 2024

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 800 V-STROM 2024

Select your Suzuki 2024 model

800 V-STROM 2024 DL800RQ M4 (E21)

V-STROM 800SE

Suzuki V-STROM

Displacement: 800 cc
Year: 2024
Model code DL800RQ M4 (E21)
Color: Pearl Vigor Blue (YKV) / Mettalic Mat Steel Green (YVP) / Glass Sparkle Black (YVB)
