LEVERS - HANDGRIPS

FRONT FORK FOR SUZUKI V-STROM 800 2024

STEERING COLUMN

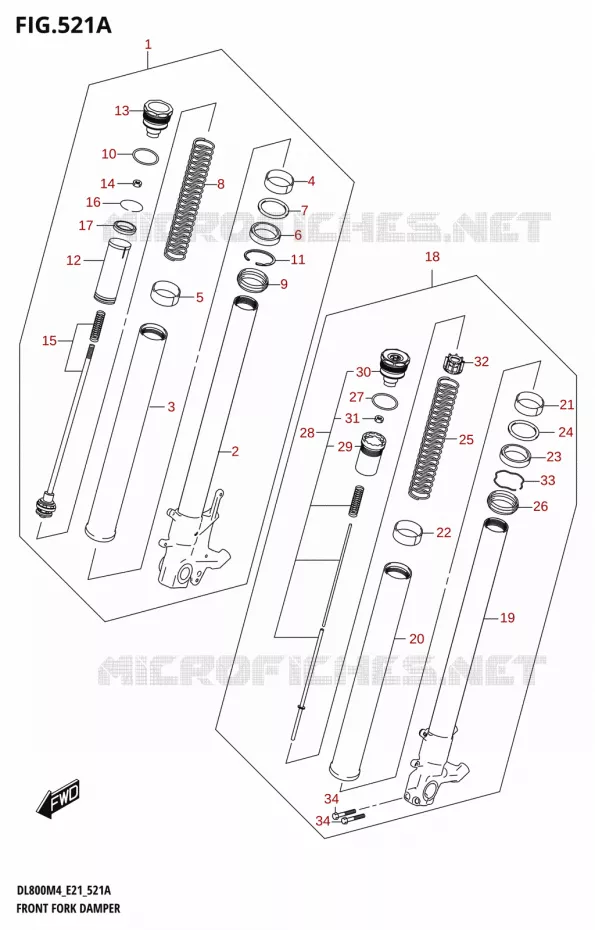

FRONT FORK Suzuki MOTO 800 V-STROM 2024 DL800RQ M4 (E21)
1
DAMPER ASSY, R
DAMPER ASSY, R(BLACK)

51103-25L20-291   5110325L20291

5110325L20291

Unit Price

1
DAMPER ASSY, R

51103-25L40-000   5110325L40000

5110325L40000

Unit Price

2
TUBE, INNER, R
.TUBE, INNER, R(BLACK)

51110-25L20-291   5111025L20291

5111025L20291

Unit Price

2
.TUBE, INNER, R

51110-25L40-000   5111025L40000

5111025L40000

Unit Price

3
.TUBE, OUTER

51131-25L20-000   5113125L20000

5113125L20000

Unit Price

4
.BUSH, GUIDE

51152-01H10-000   5115201H10000

5115201H10000

Unit Price

5
.BUSH, SLIDE

51152-14J00-000   5115214J00000

5115214J00000

Unit Price

6
.SEAL, OIL

51153-01H10-000   5115301H10000

5115301H10000

Unit Price

7
.SPACER,SEAL
.SPACER, SEAL

51168-38B00-000   5116838B00000

5116838B00000

Unit Price

8
.SPRING, FR

51171-25L20-000   5117125L20000

5117125L20000

Unit Price

9
.DUST SEAL
.DUST SEAL

51173-15D00-000   5117315D00000

5117315D00000

Unit Price

10
O RING, JACK
.O-RING

51187-15D50-000   5118715D50000

5118715D50000

Unit Price

11
.INTERNAL CIRCLIP

51156-25L20-000   5115625L20000

5115625L20000

Unit Price

12
.ROD GUIDE CASE

51174-25L20-000   5117425L20000

5117425L20000

Unit Price

13
.BOLT, FORK

51189-25L20-000   5118925L20000

5118925L20000

Unit Price

14
.NUT

51827-25L20-000   5182725L20000

5182725L20000

Unit Price

15
.PISTON ROD

52110-25L20-000   5211025L20000

5211025L20000

Unit Price

16
.RING STOPPER

51118-25L10-000   5111825L10000

5111825L10000

Unit Price

17
.STOPPER

51136-25L10-000   5113625L10000

5113625L10000

Unit Price

18
DAMPER ASSY, L
DAMPER ASSY, L(BLACK)

51104-25L20-291   5110425L20291

5110425L20291

Unit Price

18
DAMPER ASSY, L

51104-25L40-000   5110425L40000

5110425L40000

Unit Price

19
TUBE, INNER, L
.TUBE, INNER, L(BLACK)

51210-25L20-291   5121025L20291

5121025L20291

Unit Price

19
.TUBE, INNER, L

51210-25L40-000   5121025L40000

5121025L40000

Unit Price

20
.TUBE, OUTER

51131-25L20-000   5113125L20000

5113125L20000

Unit Price

21
.BUSH, GUIDE

51152-01H10-000   5115201H10000

5115201H10000

Unit Price

22
.BUSH, SLIDE

51152-14J00-000   5115214J00000

5115214J00000

Unit Price

23
.SEAL, OIL

51153-01H10-000   5115301H10000

5115301H10000

Unit Price

24
.SPACER,SEAL
.SPACER, SEAL

51168-38B00-000   5116838B00000

5116838B00000

Unit Price

25
.SPRING, FR

51171-25L20-000   5117125L20000

5117125L20000

Unit Price

26
.DUST SEAL
.DUST SEAL

51173-15D00-000   5117315D00000

5117315D00000

Unit Price

27
O RING, JACK
.O-RING

51187-15D50-000   5118715D50000

5118715D50000

Unit Price

28
.JOINT ROD

51128-25L20-000   5112825L20000

5112825L20000

Unit Price

29
..INNER FORK BOLT

51188-25L20-000   5118825L20000

5118825L20000

Unit Price

30
..BOLT, FORK

51199-25L20-000   5119925L20000

5119925L20000

Unit Price

31
..NUT

51827-29G00-000   5182729G00000

5182729G00000

Unit Price

32
.SPRING SEAT

51175-25L20-000   5117525L20000

5117525L20000

Unit Price

33
CIRCLIP,FORK OIL SEAL<br />.RING,STOPPER
CIRCLIP, FORK OIL SEAL
.RING, STOPPER

51556-38B00-000   5155638B00000

5155638B00000

Unit Price

34
BOLT, BRACKET UPPER
.BOLT

51328-44HB0-000   5132844HB0000

5132844HB0000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki V-STROM 800SE of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 800 V-STROM 2024

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 800 V-STROM 2024

Select your Suzuki 2024 model

800 V-STROM 2024 DL800RQ M4 (E21)

V-STROM 800SE

Suzuki V-STROM

Displacement: 800 cc
Year: 2024
Model code DL800RQ M4 (E21)
Color: Pearl Vigor Blue (YKV) / Mettalic Mat Steel Green (YVP) / Glass Sparkle Black (YVB)
