Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FAIRING

FAIRING FOR SUZUKI V-STROM 800 2024

WINDSCREEN

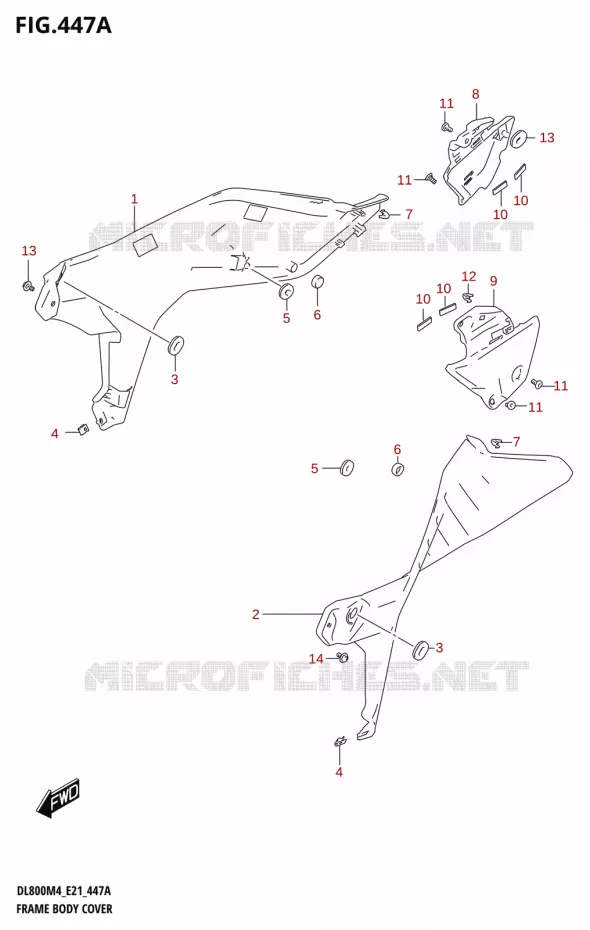

FAIRING Suzuki MOTO 800 V-STROM 2024 DL800RQ M4 (E21)
1
COVER COMP, FRAME, R
COVER, FRAME, R(BLACK)

47110-25LA0-019   4711025LA0019

4711025LA0019

Unit Price

2
COVER COMP, FRAME, L
COVER, FRAME, L(BLACK)

47210-25LA0-019   4721025LA0019

4721025LA0019

Unit Price

3
CUSHION, UNDER COWL, R
CUSHION

94478-14J00-000   9447814J00000

9447814J00000

Unit Price

4
NUT
NUT(M5)

09148-05052-000   0914805052000

0914805052000

Unit Price

5
CUSHION(8X26X7)
CUSHION(8X26X7)

09320-08018-000  

09320-08513-000
 0932008018000

Unit Price

6
CUSHION, SIDE COVER
CUSHION(14X20X9)

09329-14003-000   0932914003000

0932914003000

Unit Price

7
CLIP
CLIP(10.5X14.3)

09409-08326-000   0940908326000

0940908326000

Unit Price

8
COVER, FRAME LOWER, R

47121-25LA0-000   4712125LA0000

4712125LA0000

Unit Price

9
COVER, FRAME LOWER, L

47221-25LA0-000   4722125LA0000

4722125LA0000

Unit Price

10
CUSHION(10X30X2)

94429-21E00-000   9442921E00000

9442921E00000

Unit Price

11
SCREW, FRAME COVER LOWER
SCREW

09139-06245-000   0913906245000

0913906245000

Unit Price

12
CLIP
CLIP(10.5X14.3)

09409-08326-000   0940908326000

0940908326000

Unit Price

13
CUSHION

09320-08029-000   0932008029000

0932008029000

Unit Price

14
BOLT(6X12)

09111-06106-000   0911106106000

0911106106000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FAIRING of your Suzuki V-STROM 800SE of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 800 V-STROM 2024

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 800 V-STROM 2024

Select your Suzuki 2024 model

800 V-STROM 2024 DL800RQ M4 (E21)

V-STROM 800SE

Suzuki V-STROM

Displacement: 800 cc
Year: 2024
Model code DL800RQ M4 (E21)
Color: Pearl Vigor Blue (YKV) / Mettalic Mat Steel Green (YVP) / Glass Sparkle Black (YVB)
