CRANKCASE

CRANKCASE (2) FOR SUZUKI V-STROM 800 2024

MAGNETO COVER

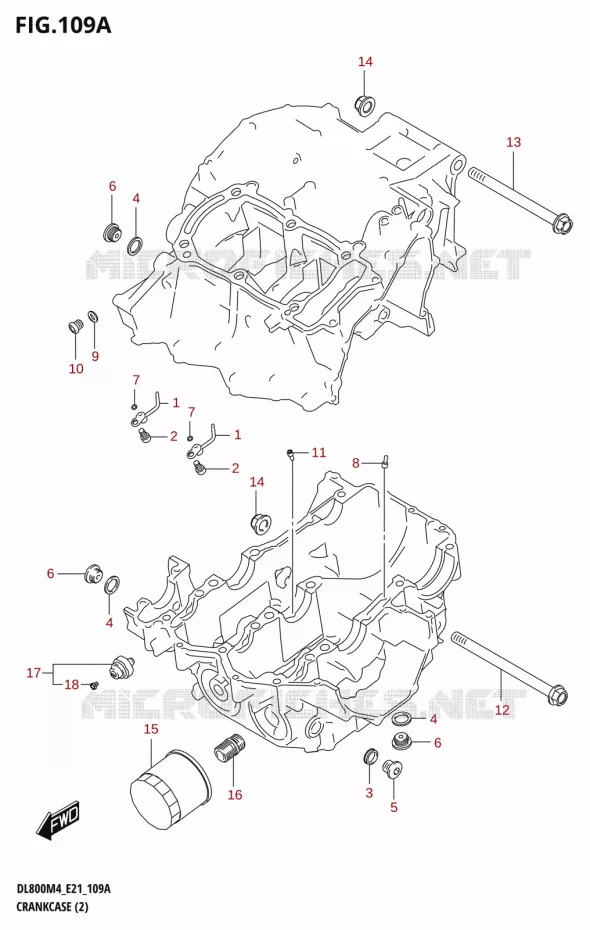

CRANKCASE (2) Suzuki MOTO 800 V-STROM 2024 DL800RQ M4 (E21)
1
JET COMP, PISTON COOLING
JET, PISTON COOLING

11390-25L00-000   1139025L00000

1139025L00000

Unit Price

2
BOLT(6X12)
BOLT(6X12)

09106-06075-000   0910606075000

0910606075000

Unit Price

3
GASKET,13.8X18.8X0.4<br />GASKET(13.8X18.8X4.8)
GASKET, 13.8X18.8X0.4
GASKET(13.8X18.8X4.8)

09168-14002-000   0916814002000

0916814002000

Unit Price

4
GASKET OIL GALLERY<br />GASKET(16X22X2)
GASKET OIL GALLERY
GASKET(16X22X2)

09168-16002-000   0916816002000

0916816002000

Unit Price

5
PLUG, CYL HEAD<br />PLUG(14X12)
PLUG, CYL HEAD
PLUG(14X12)

09248-14011-000  

0924814011000
Not available
6
PLUG,OIL<br />PLUG(16X8)
PLUG, OIL
PLUG(16X8)

09248-16012-000   0924816012000

0924816012000

Unit Price

7
O RING<br />O-RING(D:1.2,ID:4)
O RING
O-RING(D:1.2, ID:4)

09280-04004-000   0928004004000

0928004004000

Unit Price

8
JET(140)<br />JET(#140)
JET(140)
JET(#140)

09493-28012-000   0949328012000

0949328012000

Unit Price

9
CRNK DRAIN PLUG GASK<br />GASKET(10X14X3.6)
CRNK DRAIN PLUG GASK
GASKET(10X14X3.6)

09168-10002-000   0916810002000

0916810002000

Unit Price

10
PLUG,OIL GALL<br />PLUG(10X10)
PLUG, OIL GALL
PLUG(10X10)

09248-10010-000   0924810010000

0924810010000

Unit Price

11
JET, AIR
JET

09493-22010-000   0949322010000

0949322010000

Unit Price

12
BOLT, ENG MTG(L165)
BOLT(L:165)

09103-12143-000   0910312143000

0910312143000

Unit Price

13
BOLT, ENG MTG(L145)
BOLT(L:145)

09103-12144-000   0910312144000

0910312144000

Unit Price

14
NUT

09159-12072-000   0915912072000

0915912072000

Unit Price

15
FILTER ASSY,ENGINE OIL
FILTER ASSY, ENGINE OIL

16510-07J00-000  

16510-07J10-000
 1651007J00000

Unit Price

16
UNION,OIL STAND
UNION, OIL STAND

16591-06B01-000   1659106B01000

1659106B01000

Unit Price

17
SWITCH ASSY, OIL PRESSURE

37820-33D11-000   3782033D11000

3782033D11000

Unit Price

18
.BOLT, OIL PRESSURE SWITCH

37822-33D00-000   3782233D00000

3782233D00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE (2) of your Suzuki V-STROM 800SE of V-STROM. Let us know if you have any questions.
