FRONT MASTER CYLINDER

SWINGARM FOR SUZUKI V-STROM 800 2024

SHOCK ABSORBER LINKAGE

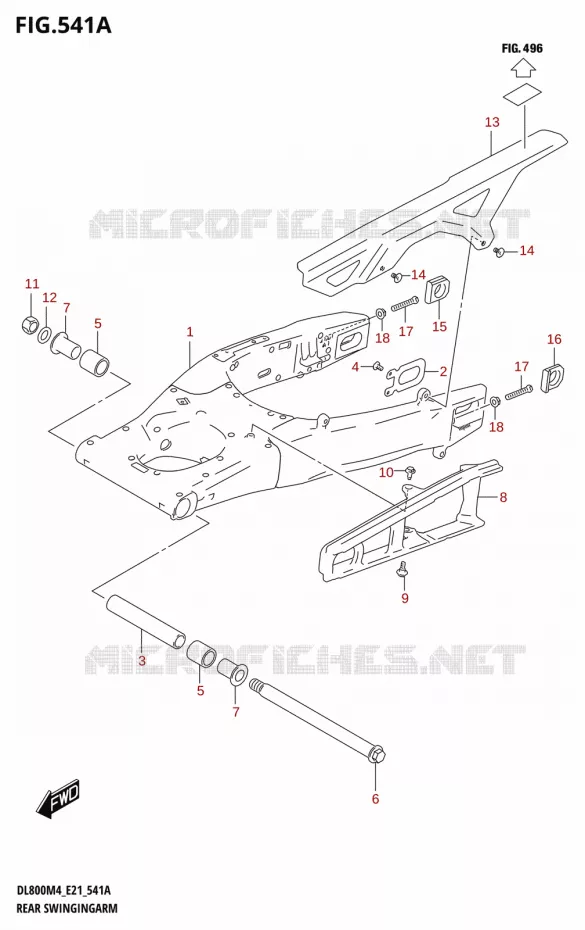

SWINGARM Suzuki MOTO 800 V-STROM 2024 DL800RQ M4 (E21)
1
SWINGINGARM COMP, REAR
SWINGINGARM, REAR

61100-25LA0-000   6110025LA0000

6110025LA0000

Unit Price

2
PLATE, RR SWING ARM BRKT
PLATE, RR SWGARM BRKT

61124-44G00-000   6112444G00000

6112444G00000

Unit Price

3
SPACER, RR SWGARM PIVOT CTR

61282-25L00-000   6128225L00000

6128225L00000

Unit Price

4
SCREW(6X12)

09122-66010-000   0912266010000

0912266010000

Unit Price

5
BEARING
BEARING(25X33X35)

09263-25073-000   0926325073000

0926325073000

Unit Price

6
SHAFT,RR SWINGINGARM PIVOT
SHAFT, RR SWINGINGARM PIVOT

61211-31E00-000   6121131E00000

6121131E00000

Unit Price

7
SPACER,PIVOT BEARING
SPACER, PIVOT BEARING

61251-31E00-000   6125131E00000

6125131E00000

Unit Price

8
BUFFER, CHAIN TOUCH DEFENSE

61273-25LB0-000   6127325LB0000

6127325LB0000

Unit Price

9
BOLT
BOLT(6X17.8)

09111-06072-000   0911106072000

0911106072000

Unit Price

10
BOLT(6X16)

09116-06205-000   0911606205000

0911606205000

Unit Price

11
NUT 18MM<br />NUT
NUT 18MM
NUT

09159-18007-000   0915918007000

0915918007000

Unit Price

12
WASHER(18.5X28X2.6)
WASHER(18.5X28X2.6)

09160-18030-000   0916018030000

0916018030000

Unit Price

13
CASE COMP, CHAIN
CASE, CHAIN

61310-25L00-000   6131025L00000

6131025L00000

Unit Price

14
BOLT, CHAIN CASE
BOLT(6X12)

09139-06225-000   0913906225000

0913906225000

Unit Price

15
WASHER, CHAIN ADJUSTER RH

61445-28H11-000   6144528H11000

6144528H11000

Unit Price

16
WASHER, CHAIN ADJUSTER LH

61446-35G01-000   6144635G01000

6144635G01000

Unit Price

17
BOLT<br />BOLT(8X50)
BOLT
BOLT(8X50)

09100-08287-000   0910008287000

0910008287000

Unit Price

18
NUT

08316-1008A-000   083161008A000

083161008A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki V-STROM 800SE of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 800 V-STROM 2024

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS

Suzuki 800 V-STROM 2024

Select your Suzuki 2024 model

800 V-STROM 2024 DL800RQ M4 (E21)

V-STROM 800SE

Suzuki V-STROM

Displacement: 800 cc
Year: 2024
Model code DL800RQ M4 (E21)
Color: Pearl Vigor Blue (YKV) / Mettalic Mat Steel Green (YVP) / Glass Sparkle Black (YVB)
