Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FAIRING (MODEL K4) COLOR : AAV=YC3(WHITE),YV2(SILVER)

FRONT FENDER (MODEL W / X) FOR SUZUKI INTRUDER 1500 2000

FRONT FENDER (MODEL Y / K1) COLOR : K7E = 14L(WHITE), Y4L(YELLOW)

Item numbers

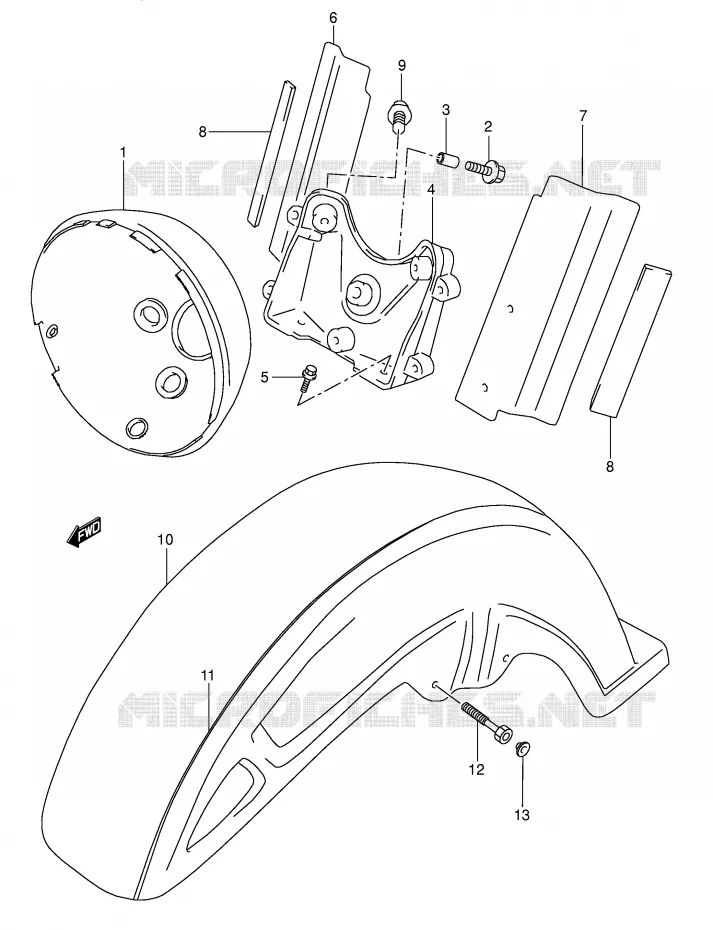

FRONT FENDER (MODEL W/X) Suzuki MOTO 1500 INTRUDER 2000 VL1500Y(E2)
1
2
3
4
5
6
7
8
8
9
10
10
10
10
10
10
11
11
11
11
11
11
12
13
1
DISCONTINUE
HOUSING, HEADLAMP

51810-10F00-000   5181010F00000

5181010F00000
Not available
2
BOLT,6X25<br />BOLT
BOLT, 6X25
BOLT

09116-06147-000   0911606147000

0911606147000

Unit Price

3
SPACER(6.8X12X11)
SPACER

09180-06076-000   0918006076000

0918006076000

Unit Price

4
BRACKET, HEADLAMP HOUSING

51850-10F00-000  

51850-10F01-000
 5185010F00000

Unit Price

5
01550-0616A
BOLT

01550-06163-000  

0155006163000
Not available
6
DISCONTINUE
PLATE, BRACKET RH

51871-10F00-000   5187110F00000

5187110F00000
Not available
7
DISCONTINUE
PLATE, BRACKET LH

51881-10F00-000   5188110F00000

5188110F00000
Not available
8
PROTECTOR(170X95X3.0)<br />CUSHION
PROTECTOR(170X95X3.0)
CUSHION

33651-37000-000   3365137000000

3365137000000

Unit Price

9
SCREW 6X12<br />SCREW
SCREW 6X12
SCREW

09139-06027-000   0913906027000

0913906027000

Unit Price

10
53110-10F01-E6M
FENDER, FRONT

53110-10F00-E6M  

5311010F00E6M
Not available
10
FENDER, FRONT

53110-10F00-K7D   5311010F00K7D

5311010F00K7D
Not available
10
DISCONTINUE

53110-10F00-K7E  

5311010F00K7E
Not available
10
FENDER, FRONT

53110-10F00-K7F   5311010F00K7F

5311010F00K7F
Not available
10
DISCONTINUE

53110-10F00-M4P  

5311010F00M4P
Not available
10
DISCONTINUE

53110-10F00-M4R  

5311010F00M4R
Not available
11
TAPE SET

68150-10F00-K7W   6815010F00K7W

6815010F00K7W
Not available
11
DISCONTINUE
TAPE SET

68150-10F00-K7Y   6815010F00K7Y

6815010F00K7Y
Not available
11
DISCONTINUE
TAPE SET

68150-10F00-K8A   6815010F00K8A

6815010F00K8A
Not available
11
TAPE SET

68150-10F00-K8B   6815010F00K8B

6815010F00K8B
Not available
11
TAPE SET

68150-10F00-M5M   6815010F00M5M

6815010F00M5M
Not available
11
DISCONTINUE
TAPE SET

68150-10F00-M5N   6815010F00M5N

6815010F00M5N
Not available
12
BOLT
BOLT

07130-08457-000   0713008457000

0713008457000

Unit Price

13
CAP
CAP

09250-06011-000   0925006011000

0925006011000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
