Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CRANKCASE

CRANKCASE COVER FOR SUZUKI INTRUDER 1500 2000

CRANKSHAFT

Item numbers

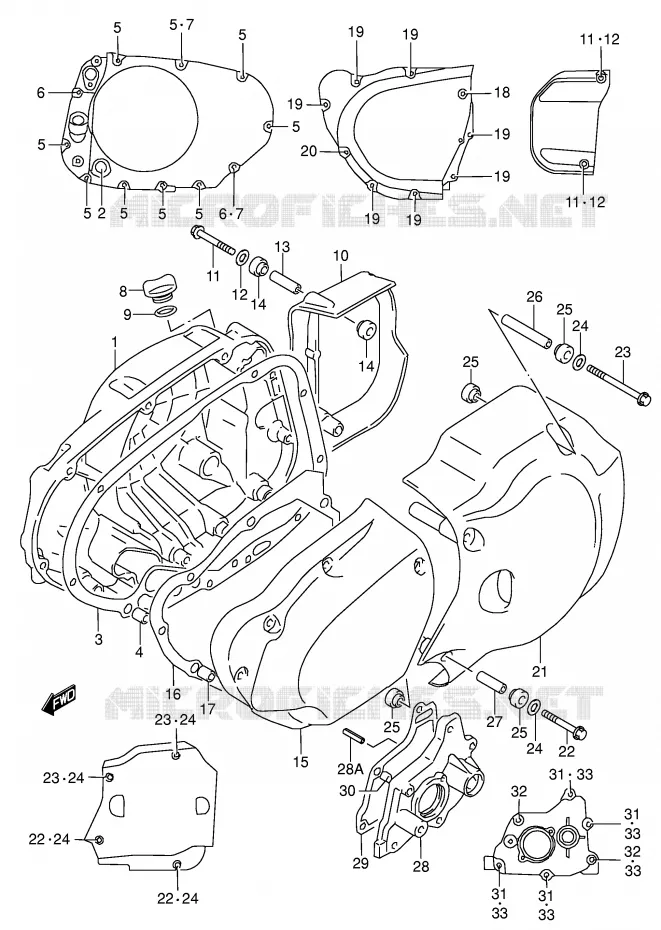

CRANKCASE COVER Suzuki MOTO 1500 INTRUDER 2000 VL1500Y(E2)
1
2
3
4
5
5
5
5
5
5
5
5
5
6
6
7
7
7
7
8
8
9
10
11
11
11
12
12
12
13
14
14
15
16
17
18
19
19
19
19
19
19
19
20
21
22
22
22
23
23
23
24
24
24
24
24
24
25
25
25
25
26
27
28A
28
29
30
31
31
31
31
32
32
33
33
33
33
33
33
33
33
33
33
1
COVER, CLUTCH

11340-10F00-000   1134010F00000

1134010F00000

Unit Price

2
LENS, OIL LEVEL CHECK
LENS, OIL LEVEL CHECK

11971-45010-000   1197145010000

1197145010000

Unit Price

3
GASKET, CLUTCH COVER

11482-38B10-000  

11482-38B20-000
 1148238B10000

Unit Price

4
PIN
PIN

04211-09189-000   0421109189000

0421109189000

Unit Price

5
BOLT,6X30<br />BOLT
BOLT, 6X30
BOLT

01547-06307-000   0154706307000

0154706307000

Unit Price

6
BOLT,6X40<br />BOLT
BOLT, 6X40
BOLT

01547-06407-000   0154706407000

0154706407000

Unit Price

7
GASKET<br />GASKET (5.8X11X1.2)
GASKET
GASKET (5.8X11X1.2)

09168-06024-000   0916806024000

0916806024000

Unit Price

7
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
8
PLUG, ENG OIL FILLER
PLUG, OIL FILLER

09259-20007-000   0925920007000

0925920007000

Unit Price

8
PLUG

09259-20008-000  

09259-20008-XC0
 0925920008000

Unit Price

9
O-RING,OIL FILLER<br />O RING
O-RING, OIL FILLER
O RING

09280-17003-000   0928017003000

0928017003000

Unit Price

10
COVER, CLUTCH RR
COVER, CLUTCH REAR

11381-10F00-000   1138110F00000

1138110F00000

Unit Price

11
BOLT 6X45
BOLT

07130-06457-000   0713006457000

0713006457000

Unit Price

12
WASHER,6.5X14X1.6<br />WASHER
WASHER, 6.5X14X1.6
WASHER

09160-06125-000   0916006125000

0916006125000

Unit Price

13
SPACER

09180-06277-000   0918006277000

0918006277000

Unit Price

14
WASHER
CUSHION

09161-09005-000   0916109005000

0916109005000

Unit Price

15
COVER, GENERATOR

11351-10F00-000   1135110F00000

1135110F00000

Unit Price

16
GASKET, GENERATOR COVER

11483-10F00-000  

11483-10F10-000
 1148310F00000

Unit Price

17
PIN, 11 X20<br />PIN
PIN, 11 X20
PIN

09206-11017-000   0920611017000

0920611017000

Unit Price

18
BOLT

01547-06957-000   0154706957000

0154706957000

Unit Price

19
BOLT,6X35<br />BOLT
BOLT, 6X35
BOLT

01547-06357-000   0154706357000

0154706357000

Unit Price

20
BOLT,6X45<br />BOLT
BOLT, 6X45
BOLT

01547-06457-000   0154706457000

0154706457000

Unit Price

21
COVER, SECONDARY DRIVE UNIT

11361-10F00-000   1136110F00000

1136110F00000

Unit Price

22
BOLT,6X40<br />BOLT
BOLT, 6X40
BOLT

01547-06407-000   0154706407000

0154706407000

Unit Price

23
BOLT,6X70<br />BOLT
BOLT, 6X70
BOLT

01547-06707-000   0154706707000

0154706707000

Unit Price

24
WASHER,6.5X14X1.6<br />WASHER
WASHER, 6.5X14X1.6
WASHER

09160-06125-000   0916006125000

0916006125000

Unit Price

25
WASHER
CUSHION

09161-09005-000   0916109005000

0916109005000

Unit Price

26
SPACER
SPACER (L:55.9)

09180-06233-000   0918006233000

0918006233000

Unit Price

27
SPACER, SEC COVER BOL
SPACER (L:26.0)

09180-06302-000   0918006302000

0918006302000

Unit Price

28
COVER, GEAR SHIFT

11370-10F00-000   1137010F00000

1137010F00000

Unit Price

28A
PIN, GEAR SHIFT COVER

09205-03023-000   0920503023000

0920503023000
Not available
29
GASKET, GEAR SHIFT COVER

11485-10F00-000  

11485-10F10-000
 1148510F00000

Unit Price

30
PIN
PIN

04211-09109-000   0421109109000

0421109109000

Unit Price

31
BOLT

01547-06253-000  

01547-0625B-000
 0154706253000

Unit Price

32
BOLT

01547-06353-000  

01547-0635B-000
 0154706353000

Unit Price

33
GASKET<br />GASKET (5.8X11X1.2)
GASKET
GASKET (5.8X11X1.2)

09168-06024-000   0916806024000

0916806024000

Unit Price

33
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
