MUFFLER (MODEL K1 / K2 / K3 / K4)

OIL PUMP / FUEL PUMP FOR SUZUKI INTRUDER 1500 2000

OIL COOLER

Item numbers

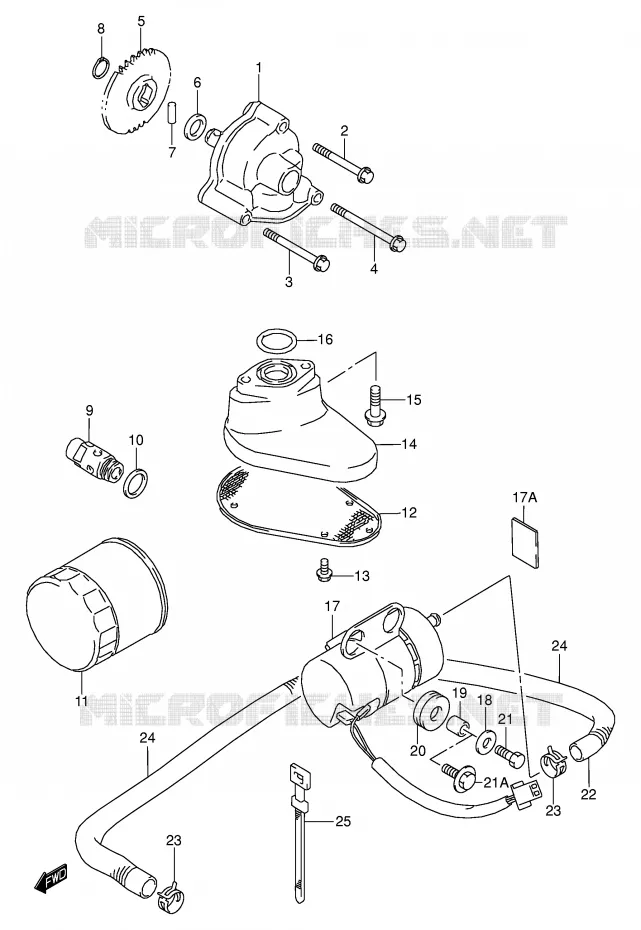

OIL PUMP/FUEL PUMP Suzuki MOTO 1500 INTRUDER 2000 VL1500Y(E2)
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
17A
18
19
20
21
21A
22
23
23
24
24
25
1
PUMP ASSY, ENGINE OIL
PUMP ASSY, OIL

16400-38B10-000   1640038B10000

1640038B10000

Unit Price

2
BOLT

01547-06453-000  

01547-0645B-000
 0154706453000

Unit Price

3
BOLT

01547-06553-000  

01547-0655B-000
 0154706553000

Unit Price

4
BOLT

01547-06653-000  

01547-0665B-000
 0154706653000

Unit Price

5
DISCONTINUE
GEAR, OIL PUMP DRIVEN (NT:31)

16331-38B01-000   1633138B01000

1633138B01000
Not available
6
SHIM,12X20X0.5<br />WASHER
SHIM, 12X20X0.5
WASHER

09181-12158-000   0918112158000

0918112158000

Unit Price

7
PIN
PIN

09261-05006-000   0926105006000

0926105006000

Unit Price

8
CIRCLIP

08331-31126-000  

08331-3112A-000
 0833131126000

Unit Price

9
VALVE ASSY, OIL RELIEF
VALVE ASSY, OIL RELIEF

16440-17C20-000   1644017C20000

1644017C20000

Unit Price

10
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-16002-000   0916816002000

0916816002000

Unit Price

11
FILTER ASSY, ENGINE OIL

16510-03G00-000  

16510-07J10-000
 1651003G00000

Unit Price

12
DISCONTINUE
STRAINER, OIL

16520-38B10-000   1652038B10000

1652038B10000
Not available
13
DISCONTINUE
BOLT

01550-05103-000  

0155005103000
Not available
14
DISCONTINUE
HOLDER, OIL STRAINER

16525-38B10-000   1652538B10000

1652538B10000
Not available
15
BOLT

01550-06253-000  

01550-0625A-000
 0155006253000

Unit Price

16
O-RING,CRK HOLE PLUG<br />O RING (D:3.1,ID:22.7)
O-RING, CRK HOLE PLUG
O RING (D:3.1, ID:22.7)

09280-22008-000   0928022008000

0928022008000

Unit Price

17
PUMP ASSY, FUEL

15100-10F00-000  

15100-10F01-000
 1510010F00000

Unit Price

17A
CUSHION, CHAIN CASE
CUSHION

61374-08010-000   6137408010000

6137408010000

Unit Price

18
WASHER 6.5X10X1.2<br />WASHER (6.5X20X1.2)
WASHER 6.5X10X1.2
WASHER (6.5X20X1.2)

09160-06077-000   0916006077000

0916006077000

Unit Price

19
SPACER,6.5X10X7
SPACER, 6.5X10X7

09180-06263-000  

09180-06283-000
 0918006263000

Unit Price

20
RR COMB LAMP CUSHION<br />CUSHION
RR COMB LAMP CUSHION
CUSHION

09320-09009-000   0932009009000

0932009009000

Unit Price

21
BOLT
BOLT

01500-06207-000   0150006207000

0150006207000

Unit Price

21A
BOLT (6X20)

09116-06011-000   0911606011000

0911606011000
Not available
22
HOSE, FUEL (PUMP & CARB)

15801-10F00-000   1580110F00000

1580110F00000

Unit Price

23
CLAMP,WATER HOSE
CLAMP, WATER HOSE

09401-11407-000  

09401-11415-000
 0940111407000

Unit Price

24
SPRING

09440-14047-000   0944014047000

0944014047000

Unit Price

25
CLAMP,WIRING HARNESS<br />CLAMP
CLAMP, WIRING HARNESS
CLAMP

09407-18402-000   0940718402000

0940718402000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
