STARTER MOTOR (MODEL W / X / Y / K1 / K2) FOR SUZUKI INTRUDER 1500 2000

STARTER MOTOR (MODEL K3 / K4)

Item numbers

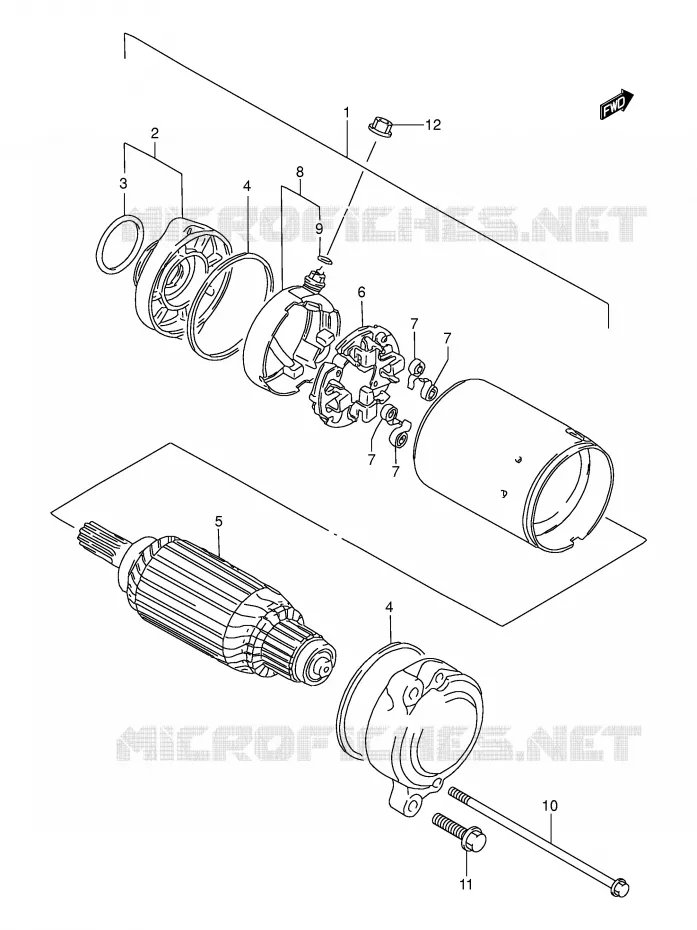

STARTER MOTOR (MODEL W/X/Y/K1/K2) Suzuki MOTO 1500 INTRUDER 2000 VL1500Y(E2)
1
2
3
4
4
5
6
7
7
7
7
8
9
10
11
12
1
MOTOR ASSY, STARTING

31100-38B02-000   3110038B02000

3110038B02000

Unit Price

2
DISCONTINUE
BRACKET SET, FRONT

31150-38B00-000   3115038B00000

3115038B00000
Not available
3
O RING<br />O RING (D:2.1,ID:34.7)
O RING
O RING (D:2.1, ID:34.7)

09280-35005-000   0928035005000

0928035005000

Unit Price

4
O RING

31264-31300-000  

3126431300000
Not available
5
ARMATURE

31310-38B01-000   3131038B01000

3131038B01000

Unit Price

6
HOLDER SET, BRUSH
HOLDER SET, BRUSH

31132-38B00-000   3113238B00000

3113238B00000

Unit Price

7
SPRING, BRUSH
SPRING, BRUSH

31135-38B00-000   3113538B00000

3113538B00000

Unit Price

8
TERMINAL SET, BRUSH
TERMINAL SET, BRUSH

31130-38B00-000   3113038B00000

3113038B00000

Unit Price

9
O RING
O RING

31143-49040-000   3114349040000

3114349040000

Unit Price

10
BOLT

31281-24B10-000  

31281-31D00-000
 3128124B10000

Unit Price

11
BOLT,6X25<br />BOLT
BOLT, 6X25
BOLT

01547-06257-000   0154706257000

0154706257000

Unit Price

12
NUT

08361-35068-000  

08361-3506A-000
 0836135068000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
