Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER (MODEL K1 / K2 / K3 / K4)

CRANKCASE FOR SUZUKI INTRUDER 1500 2000

CRANKCASE COVER

Item numbers

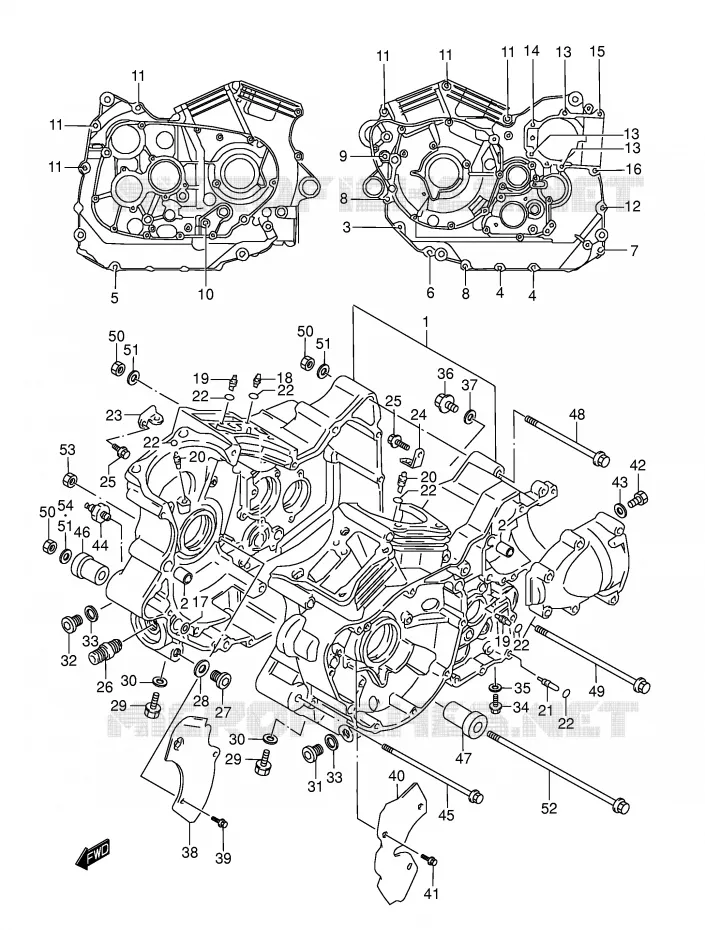

CRANKCASE Suzuki MOTO 1500 INTRUDER 2000 VL1500Y(E2)
1
2
2
3
4
4
5
6
7
8
8
9
10
11
11
11
11
11
11
12
13
13
13
14
15
16
17
18
19
19
20
20
21
22
22
22
22
22
22
23
24
25
25
26
27
28
29
29
30
30
30
30
31
32
33
33
34
35
35
36
37
38
39
40
41
42
43
44
45
46
46
47
48
49
50
50
50
51
51
51
52
53
54
1
DISCONTINUE

11300-10870-000  

1130010870000
Not available
2
PIN, 11 X20<br />PIN
PIN, 11 X20
PIN

09206-11017-000   0920611017000

0920611017000

Unit Price

3
BOLT

01550-06553-000  

01550-0655B-000
 0155006553000

Unit Price

4
BOLT

01550-06653-000  

01550-0665A-000
 0155006653000

Unit Price

5
BOLT
BOLT

01550-06853-000   0155006853000

0155006853000
Not available
6
BOLT

01550-08553-000  

01550-0855A-000
 0155008553000

Unit Price

7
BOLT

01550-08653-000  

01550-0865B-000
 0155008653000

Unit Price

8
BOLT

01550-08703-000  

01550-0870A-000
 0155008703000

Unit Price

9
BOLT

01550-08903-000  

01550-0890B-000
 0155008903000

Unit Price

10
BOLT<br />BOLT (8X115)
BOLT
BOLT (8X115)

09103-08098-000   0910308098000

0910308098000

Unit Price

11
BOLT (8X95)

09103-08164-000   0910308164000

0910308164000

Unit Price

12
BOLT

01550-08803-000  

01550-0880A-000
 0155008803000

Unit Price

13
BOLT

01550-08403-000  

01550-0840B-000
 0155008403000

Unit Price

14
BOLT

01550-08503-000  

01550-0850A-000
 0155008503000

Unit Price

15
BOLT

01550-08553-000  

01550-0855A-000
 0155008553000

Unit Price

16
BOLT

01550-08653-000  

01550-0865B-000
 0155008653000

Unit Price

17
O RING (D:1.9,ID:12.6)
O RING (D:1.9, ID:12.6)

09280-12009-000   0928012009000

0928012009000

Unit Price

18
JET(2.2)
JET, HEAD COOLING

09493-44002-000   0949344002000

0949344002000

Unit Price

19
JET,OIL<br />JET, HEAD/SECONDARY
JET, OIL
JET, HEAD/SECONDARY

09493-28010-000   0949328010000

0949328010000

Unit Price

20
JET, PISTON COOLING

09493-80009-000   0949380009000

0949380009000
Not available
21
JET, MISSION

09493-24011-000   0949324011000

0949324011000
Not available
22
O RING<br />O RING, JET (D:1.2,ID:4.0)
O RING
O RING, JET (D:1.2, ID:4.0)

09280-04004-000   0928004004000

0928004004000

Unit Price

23
DISCONTINUE
PLATE, PISTON JET, FRONT

16438-38B00-000   1643838B00000

1643838B00000
Not available
24
PLATE, PISTON JET RR
PLATE, PISTON JET, REAR

16439-38B00-000   1643938B00000

1643938B00000

Unit Price

25
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

26
UNION, OIL STAND

16591-06B00-000  

16591-06B01-000
 1659106B00000

Unit Price

27
PLUG,OIL<br />PLUG, CONTROL PLUNGER (16X8)
PLUG, OIL
PLUG, CONTROL PLUNGER (16X8)

09248-16012-000   0924816012000

0924816012000

Unit Price

28
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-16002-000   0916816002000

0916816002000

Unit Price

29
BOLT

01550-08123-000  

01550-0812B-000
 0155008123000

Unit Price

30
GASKET(8.2X14X1.6)<br />GASKET
GASKET(8.2X14X1.6)
GASKET

09168-08015-000   0916808015000

0916808015000

Unit Price

30
GASKET,HEAD COVER BO<br />GASKET
GASKET, HEAD COVER BO
GASKET

09168-08029-000   0916808029000

0916808029000

Unit Price

31
09248-14011<br />PLUG, MAIN GALLERY
09248-14011
PLUG, MAIN GALLERY

09248-14005-000  

0924814005000
Not available
32
PLUG

09247-14027-000  

09247-14044-000
 0924714027000

Unit Price

33
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

34
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

35
GASKET<br />GASKET (5.8X11X1.2)
GASKET
GASKET (5.8X11X1.2)

09168-06024-000   0916806024000

0916806024000

Unit Price

35
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
36
PLUG
PLUG, MAIN GALLERY END

09247-12006-000   0924712006000

0924712006000

Unit Price

37
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
38
DISCONTINUE
PLATE, OIL SEPARATOR

11521-38B01-000   1152138B01000

1152138B01000
Not available
39
BOLT, 6X12
BOLT

09125-06110-000   0912506110000

0912506110000

Unit Price

40
DISCONTINUE
PLATE, OIL SEPARATOR FRONT

11522-10F00-000   1152210F00000

1152210F00000
Not available
41
BOLT

01547-06123-000  

01547-0612B-000
 0154706123000

Unit Price

42
PLUG<br />PLUG, OIL DRAIN
PLUG
PLUG, OIL DRAIN

09247-12106-000   0924712106000

0924712106000

Unit Price

43
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
44
SWITCH ASSY,OIL PRESSURE
SWITCH ASSY, OIL PRESSURE

37820-33D10-000  

37820-33D11-000
 3782033D10000

Unit Price

45
BOLT,L:205<br />BOLT (10X205)
BOLT, L:205
BOLT (10X205)

09103-10145-000   0910310145000

0910310145000

Unit Price

46
DISCONTINUE
SPACER

11621-10F00-000   1162110F00000

1162110F00000
Not available
46
DISCONTINUE
SPACER

11621-10F10-000   1162110F10000

1162110F10000
Not available
47
SPACER,ENGINE MOUNT(L27)<br />SPACER (L:27)
SPACER, ENGINE MOUNT(L27)
SPACER (L:27)

11610-20C00-000   1161020C00000

1161020C00000

Unit Price

48
BOLT (10X140)

09103-10119-000   0910310119000

0910310119000

Unit Price

49
BOLT
BOLT (10X160)

09103-10278-000   0910310278000

0910310278000

Unit Price

50
NUT

08319-31103-000  

08319-3110A-000
 0831931103000

Unit Price

51
WASHER

08322-01103-000  

08322-0110B-000
 0832201103000

Unit Price

52
BOLT(10X265)<br />BOLT (10X260)
BOLT(10X265)
BOLT (10X260)

09103-10226-000   0910310226000

0910310226000

Unit Price

53
NUT

09159-10047-000   0915910047000

0915910047000

Unit Price

54
WASHER(10.5X22X3.2)

09160-10502-000  

09160-10125-000
 0916010502000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 1500 INTRUDER 2000

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS
GASKET SET for Suzuki INTRUDER 1500 2000

GASKET SET
for Suzuki INTRUDER 1500 2000

CYLINDER HEAD (FRONT)(MODEL W/X/Y) for Suzuki INTRUDER 1500 2000

CYLINDER HEAD (FRONT)
for Suzuki INTRUDER 1500 2000

CYLINDER HEAD (FRONT)(MODEL K1/K2/K3/K4) for Suzuki INTRUDER 1500 2000

CYLINDER HEAD (FRONT)
for Suzuki INTRUDER 1500 2000

CYLINDER HEAD (REAR)(MODEL W/X/Y) for Suzuki INTRUDER 1500 2000

CYLINDER HEAD (REAR)
for Suzuki INTRUDER 1500 2000

CYLINDER HEAD (REAR)(MODEL K1/K2/K3/K4) for Suzuki INTRUDER 1500 2000

CYLINDER HEAD (REAR)
for Suzuki INTRUDER 1500 2000

CYLINDER (MODEL W/X/Y) for Suzuki INTRUDER 1500 2000

CYLINDER (MODEL W / X / Y)
for Suzuki INTRUDER 1500 2000

CYLINDER (MODEL K1/K2/K3/K4) for Suzuki INTRUDER 1500 2000

CYLINDER (MODEL K1 / K2 / K3 / K4)
for Suzuki INTRUDER 1500 2000

CRANKCASE for Suzuki INTRUDER 1500 2000

CRANKCASE
for Suzuki INTRUDER 1500 2000

CRANKCASE COVER for Suzuki INTRUDER 1500 2000

CRANKCASE COVER
for Suzuki INTRUDER 1500 2000

CRANKSHAFT for Suzuki INTRUDER 1500 2000

CRANKSHAFT
for Suzuki INTRUDER 1500 2000

STARTER MOTOR CLUTCH for Suzuki INTRUDER 1500 2000

STARTER MOTOR CLUTCH
for Suzuki INTRUDER 1500 2000

CAMSHAFT/VALVE for Suzuki INTRUDER 1500 2000

CAMSHAFT / VALVE
for Suzuki INTRUDER 1500 2000

DECOMPRESSOR for Suzuki INTRUDER 1500 2000

DECOMPRESSOR
for Suzuki INTRUDER 1500 2000

TIMING for Suzuki INTRUDER 1500 2000

TIMING
for Suzuki INTRUDER 1500 2000

CARBURETOR (MODEL W/X/Y) for Suzuki INTRUDER 1500 2000

CARBURETOR (MODEL W / X / Y)
for Suzuki INTRUDER 1500 2000

CARBURETOR (MODEL K1/K2/K3/K4) for Suzuki INTRUDER 1500 2000

CARBURETOR (MODEL K1 / K2 / K3 / K4)
for Suzuki INTRUDER 1500 2000

AIR FILTER (MODEL W/X/Y) for Suzuki INTRUDER 1500 2000

AIR FILTER (MODEL W / X / Y)
for Suzuki INTRUDER 1500 2000

AIR FILTER (MODEL K1/K2/K3/K4) for Suzuki INTRUDER 1500 2000

AIR FILTER (MODEL K1 / K2 / K3 / K4)
for Suzuki INTRUDER 1500 2000

MUFFLER (MODEL W/X/Y) for Suzuki INTRUDER 1500 2000

MUFFLER (MODEL W / X / Y)
for Suzuki INTRUDER 1500 2000

MUFFLER (MODEL K1/K2/K3/K4) for Suzuki INTRUDER 1500 2000

MUFFLER (MODEL K1 / K2 / K3 / K4)
for Suzuki INTRUDER 1500 2000

OIL PUMP/FUEL PUMP for Suzuki INTRUDER 1500 2000

OIL PUMP / FUEL PUMP
for Suzuki INTRUDER 1500 2000

OIL COOLER for Suzuki INTRUDER 1500 2000

OIL COOLER
for Suzuki INTRUDER 1500 2000

ANTI POLLUTION SYSTEM (MODEL W/X/Y EXCEPT E18) for Suzuki INTRUDER 1500 2000

ANTI POLLUTION SYSTEM (MODEL W / X / Y EXCEPT E18)
for Suzuki INTRUDER 1500 2000

ANTI POLLUTION SYSTEM (MODEL W/X/Y E18) for Suzuki INTRUDER 1500 2000

ANTI POLLUTION SYSTEM (MODEL W / X / Y E18)
for Suzuki INTRUDER 1500 2000

ANTI POLLUTION SYSTEM (MODEL K1/K2/K3/K4 E2,E19 MODEL K3 P37) for Suzuki INTRUDER 1500 2000

ANTI POLLUTION SYSTEM (MODEL K1 / K2 / K3 / K4 E2,E19 MODEL K3 P37)
for Suzuki INTRUDER 1500 2000

ANTI POLLUTION SYSTEM (MODEL K1/K2/K3/K4 E24,MODEL K1/K2 P37) for Suzuki INTRUDER 1500 2000

ANTI POLLUTION SYSTEM (MODEL K1 / K2 / K3 / K4 E24,MODEL K1 / K2 P37)
for Suzuki INTRUDER 1500 2000

CLUTCH for Suzuki INTRUDER 1500 2000

CLUTCH
for Suzuki INTRUDER 1500 2000

TRANSMISSION for Suzuki INTRUDER 1500 2000

TRANSMISSION
for Suzuki INTRUDER 1500 2000

DRIVESHAFT for Suzuki INTRUDER 1500 2000

DRIVESHAFT
for Suzuki INTRUDER 1500 2000

GEAR SHIFTING ASSY for Suzuki INTRUDER 1500 2000

GEAR SHIFTING ASSY
for Suzuki INTRUDER 1500 2000

DRIVESHAFT for Suzuki INTRUDER 1500 2000

DRIVESHAFT
for Suzuki INTRUDER 1500 2000

AIR SENSOR for Suzuki INTRUDER 1500 2000

AIR SENSOR
for Suzuki INTRUDER 1500 2000

FUEL TANK FILLER HOSE & CAP for Suzuki INTRUDER 1500 2000

FUEL TANK FILLER HOSE & CAP
for Suzuki INTRUDER 1500 2000

FUEL FILTER for Suzuki INTRUDER 1500 2000

FUEL FILTER
for Suzuki INTRUDER 1500 2000

CLUTCH MASTER CYLINDER for Suzuki INTRUDER 1500 2000

CLUTCH MASTER CYLINDER
for Suzuki INTRUDER 1500 2000

STAND for Suzuki INTRUDER 1500 2000

STAND
for Suzuki INTRUDER 1500 2000

HANDLEBAR for Suzuki INTRUDER 1500 2000

HANDLEBAR
for Suzuki INTRUDER 1500 2000

LEVERS HANDGRIPS for Suzuki INTRUDER 1500 2000

LEVERS - HANDGRIPS
for Suzuki INTRUDER 1500 2000

FRONT FORK (MODEL W/X) for Suzuki INTRUDER 1500 2000

FRONT FORK (MODEL W / X)
for Suzuki INTRUDER 1500 2000

FRONT FORK (MODEL Y) for Suzuki INTRUDER 1500 2000

FRONT FORK (MODEL Y)
for Suzuki INTRUDER 1500 2000

FRONT FORK (MODEL Y P37) for Suzuki INTRUDER 1500 2000

FRONT FORK (MODEL Y P37)
for Suzuki INTRUDER 1500 2000

FRONT FORK (MODEL K1) for Suzuki INTRUDER 1500 2000

FRONT FORK (MODEL K1)
for Suzuki INTRUDER 1500 2000

FRONT FORK (MODEL K2/K3/K4) for Suzuki INTRUDER 1500 2000

FRONT FORK (MODEL K2 / K3 / K4)
for Suzuki INTRUDER 1500 2000

STEERING COLUMN (MODEL W/X) for Suzuki INTRUDER 1500 2000

STEERING COLUMN (MODEL W / X)
for Suzuki INTRUDER 1500 2000

STEERING COLUMN (MODEL Y) for Suzuki INTRUDER 1500 2000

STEERING COLUMN (MODEL Y)
for Suzuki INTRUDER 1500 2000

STEERING COLUMN (MODEL K1/K2/K3/K4) for Suzuki INTRUDER 1500 2000

STEERING COLUMN (MODEL K1 / K2 / K3 / K4)
for Suzuki INTRUDER 1500 2000

FRONT WHEEL (MODEL W/X/Y/K1) for Suzuki INTRUDER 1500 2000

FRONT WHEEL (MODEL W / X / Y / K1)
for Suzuki INTRUDER 1500 2000

FRONT WHEEL (MODEL K2/K3/K4) for Suzuki INTRUDER 1500 2000

FRONT WHEEL (MODEL K2 / K3 / K4)
for Suzuki INTRUDER 1500 2000

FRONT CALIPER (MODEL W) for Suzuki INTRUDER 1500 2000

FRONT CALIPER (MODEL W)
for Suzuki INTRUDER 1500 2000

FRONT CALIPER (MODEL X/Y/K1) for Suzuki INTRUDER 1500 2000

FRONT CALIPER (MODEL X / Y / K1)
for Suzuki INTRUDER 1500 2000

FRONT CALIPER (MODEL K2/K3/K4) for Suzuki INTRUDER 1500 2000

FRONT CALIPER (MODEL K2 / K3 / K4)
for Suzuki INTRUDER 1500 2000

FRONT MASTER CYLINDER (MODEL W/X/Y/K1) for Suzuki INTRUDER 1500 2000

FRONT MASTER CYLINDER (MODEL W / X / Y / K1)
for Suzuki INTRUDER 1500 2000

FRONT MASTER CYLINDER (MODEL K2/K3/K4) for Suzuki INTRUDER 1500 2000

FRONT MASTER CYLINDER (MODEL K2 / K3 / K4)
for Suzuki INTRUDER 1500 2000

SWINGARM for Suzuki INTRUDER 1500 2000

SWINGARM
for Suzuki INTRUDER 1500 2000

SHOCK ABSORBER LINKAGE for Suzuki INTRUDER 1500 2000

SHOCK ABSORBER LINKAGE
for Suzuki INTRUDER 1500 2000

REAR WHEEL (MODEL W/X) for Suzuki INTRUDER 1500 2000

REAR WHEEL (MODEL W / X)
for Suzuki INTRUDER 1500 2000

REAR WHEEL (MODEL Y/K1) for Suzuki INTRUDER 1500 2000

REAR WHEEL (MODEL Y / K1)
for Suzuki INTRUDER 1500 2000

REAR WHEEL (MODEL K2/K3/K4) for Suzuki INTRUDER 1500 2000

REAR WHEEL (MODEL K2 / K3 / K4)
for Suzuki INTRUDER 1500 2000

REAR CALIPER (MODEL W) for Suzuki INTRUDER 1500 2000

REAR CALIPER (MODEL W)
for Suzuki INTRUDER 1500 2000

REAR CALIPER (MODEL X/Y/K1) for Suzuki INTRUDER 1500 2000

REAR CALIPER (MODEL X / Y / K1)
for Suzuki INTRUDER 1500 2000

REAR CALIPER (MODEL K2/K3/K4) for Suzuki INTRUDER 1500 2000

REAR CALIPER (MODEL K2 / K3 / K4)
for Suzuki INTRUDER 1500 2000

REAR BRAKE MASTER CYLINDER (MODEL W/X/Y/K1) for Suzuki INTRUDER 1500 2000

REAR BRAKE MASTER CYLINDER (MODEL W / X / Y / K1)
for Suzuki INTRUDER 1500 2000

REAR BRAKE MASTER CYLINDER (MODEL K2/K3/K4) for Suzuki INTRUDER 1500 2000

REAR BRAKE MASTER CYLINDER (MODEL K2 / K3 / K4)
for Suzuki INTRUDER 1500 2000

Suzuki 1500 INTRUDER 2000

Choose your Suzuki 1500 2000 INTRUDER model

1500 INTRUDER 2000 VL1500Y(E2)

Suzuki INTRUDER

Displacement: 1500 cc
Year: 2000
Model code VL1500Y(E2)
Drapeau FRANCE
France
New and original manufacturer parts
Official Suzuki price
International delivery
Secure payment
Expert customer service
Other brands parts catalogues
