Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

REAR FENDER (MODEL W / X) COLOR : E6M = 33J(BLACK), Y98(GREEN)

REAR FENDER (MODEL Y / K1 / K2) FOR SUZUKI INTRUDER 1500 2000

REAR FENDER (MODEL K3 / K4) COLOR : LA1 = YD8(SILVER), YU8(GRAY)

Item numbers

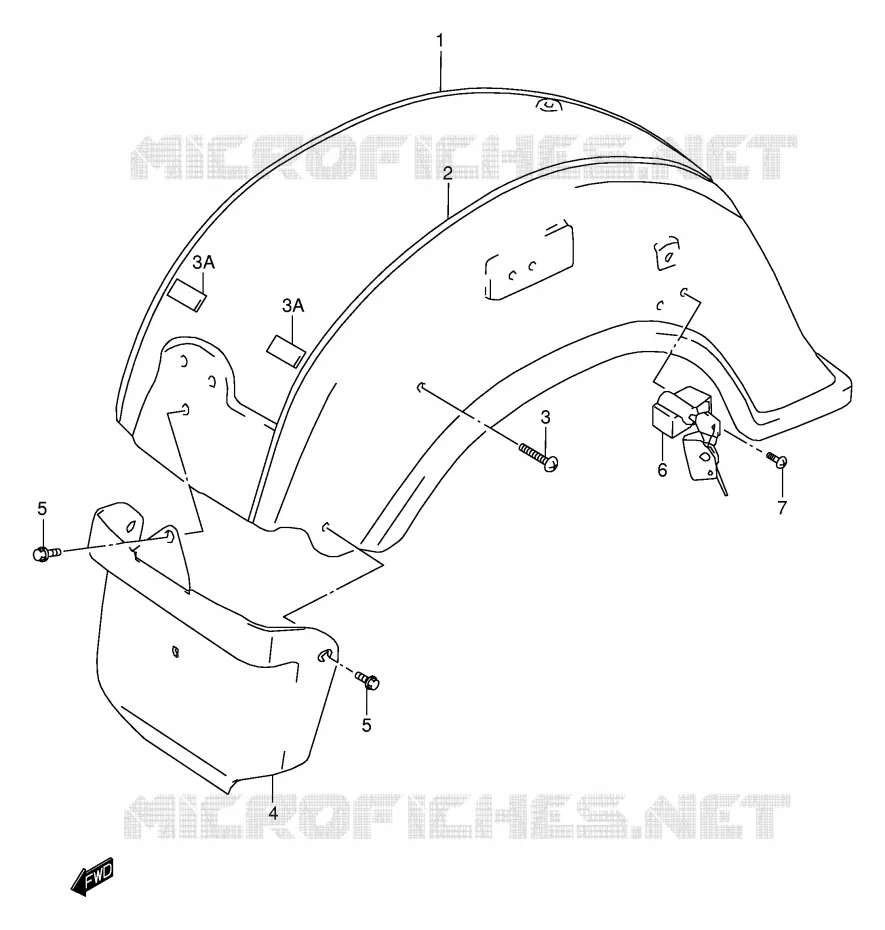

REAR FENDER (MODEL Y/K1/K2) Suzuki MOTO 1500 INTRUDER 2000 VL1500Y(E2)
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
3
3A
3A
3
4
5
5
6
7
1
FENDER, REAR

63110-10F20-2AX   6311010F202AX

6311010F202AX
Not available
1
FENDER, REAR

63110-10F20-33J   6311010F2033J

6311010F2033J
Not available
1
FENDER, REAR

63110-10F20-BU6   6311010F20BU6

6311010F20BU6
Not available
1
FENDER, REAR

63110-10F20-BU7   6311010F20BU7

6311010F20BU7
Not available
1
FENDER, REAR

63110-10F20-FG1   6311010F20FG1

6311010F20FG1
Not available
1
FENDER, REAR

63110-10F20-FG2   6311010F20FG2

6311010F20FG2
Not available
1
FENDER, REAR

63110-10F20-JE2   6311010F20JE2

6311010F20JE2
Not available
1
FENDER, REAR

63110-10F20-JE3   6311010F20JE3

6311010F20JE3
Not available
1
FENDER, REAR

63110-10F20-K7E   6311010F20K7E

6311010F20K7E
Not available
2
DISCONTINUE
TAPE SET

68170-10F00-BU8   6817010F00BU8

6817010F00BU8
Not available
2
DISCONTINUE
TAPE SET

68170-10F00-BU9   6817010F00BU9

6817010F00BU9
Not available
2
TAPE SET

68170-10F00-BV1   6817010F00BV1

6817010F00BV1
Not available
2
DISCONTINUE
TAPE SET

68170-10F00-EZ7   6817010F00EZ7

6817010F00EZ7
Not available
2
DISCONTINUE
TAPE SET

68170-10F00-EZ9   6817010F00EZ9

6817010F00EZ9
Not available
2
DISCONTINUE
TAPE SET

68170-10F00-FH5   6817010F00FH5

6817010F00FH5
Not available
2
DISCONTINUE
TAPE SET

68170-10F00-JE4   6817010F00JE4

6817010F00JE4
Not available
2
DISCONTINUE
TAPE SET

68170-10F00-JE5   6817010F00JE5

6817010F00JE5
Not available
2
DISCONTINUE
TAPE SET

68170-10F00-K8A   6817010F00K8A

6817010F00K8A
Not available
3
BOLT

09106-08156-000   0910608156000

0910608156000

Unit Price

3A
TAPE, RR FENDER
TAPE, REAR FENDER

63131-10F00-000   6313110F00000

6313110F00000

Unit Price

4
MUDGUARD, RR FENDER FR
MUD GUARD, FRONT

63411-10F01-000   6341110F01000

6341110F01000

Unit Price

5
BOLT,6X16<br />BOLT
BOLT, 6X16
BOLT

09113-06001-000   0911306001000

0911306001000

Unit Price

6
DISCONTINUE

95700-10840-000  

9570010840000
Not available
7
SCREW
SCREW

09139-06089-000   0913906089000

0913906089000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
