FRAME FOR SUZUKI DR-Z 400 2015

REAR FAIRING

Item numbers

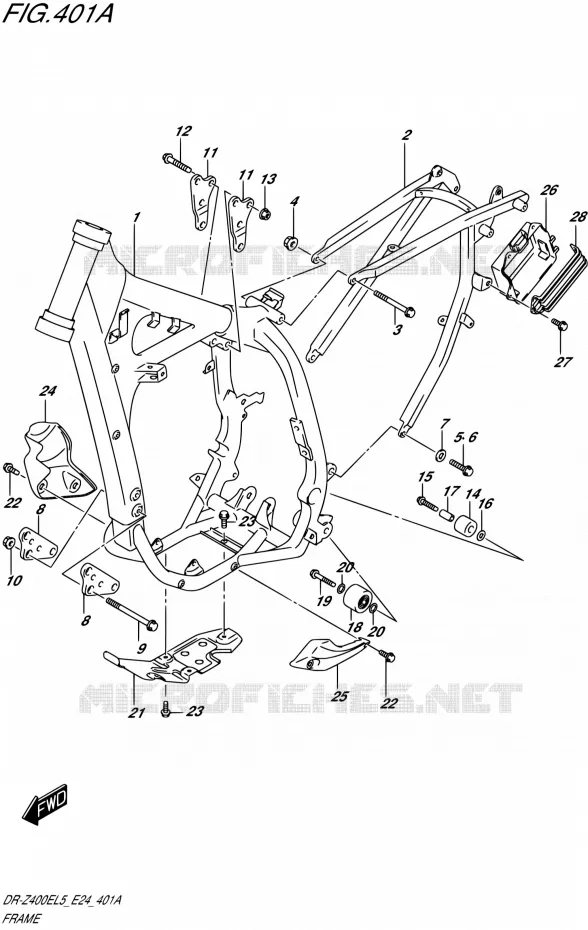

FRAME Suzuki MOTO 400 DR-Z 2015 DR-Z400E L5 (E24)
1
2
3
4
5
6
7
8
8
9
10
11
11
12
13
14
15
16
17
18
19
20
20
21
22
22
23
23
24
25
26
27
28
1
FRAME (GRAY)

41100-29F14-YPT   4110029F14YPT

4110029F14YPT
Not available
2
RAIL, SEAT

41200-29F21-000   4120029F21000

4120029F21000
Not available
3
BOLT<br />BOLT (8X115)
BOLT
BOLT (8X115)

09103-08098-000   0910308098000

0910308098000

Unit Price

4
NUT
NUT

08319-3108A-000   083193108A000

083193108A000

Unit Price

5
BOLT (8X20)

09103-08431-000   0910308431000

0910308431000

Unit Price

6
BOLT<br />BOLT (8X18)
BOLT
BOLT (8X18)

09104-08035-000   0910408035000

0910408035000

Unit Price

7
WASHER,8.5X18X2.0<br />WASHER (8.5X18X2)
WASHER, 8.5X18X2.0
WASHER (8.5X18X2)

09160-08120-000   0916008120000

0916008120000

Unit Price

8
PLATE, ENG MTG FR
PLATE, ENGINE MOUNT FRONT

41911-29F00-000   4191129F00000

4191129F00000

Unit Price

9
BOLT (8X90)

09103-08363-000   0910308363000

0910308363000

Unit Price

10
NUT
NUT

08319-3108A-000   083193108A000

083193108A000

Unit Price

11
PLATE, HEAD MTG RR
PLATE, ENGINE MOUNT REAR

41993-29F10-000   4199329F10000

4199329F10000

Unit Price

12
BOLT

09103-08081-000  

01550-08507-000
 0910308081000

Unit Price

13
NUT
NUT

08319-3108A-000   083193108A000

083193108A000

Unit Price

14
ROLLER, CHAIN CONTROL UPR
ROLLER, CHAIN UPPER

43911-13E10-000   4391113E10000

4391113E10000

Unit Price

15
BOLT, CHAIN ROLL *S1
BOLT (8X41)

09103-08083-000   0910308083000

0910308083000

Unit Price

16
WASHER THRUST<br />WASHER
WASHER THRUST
WASHER

08211-08201-000   0821108201000

0821108201000

Unit Price

17
SPACER
SPACER (8.6X12.2X26.5)

09180-08215-000   0918008215000

0918008215000

Unit Price

18
ROLLER, CHAIN
ROLLER, CHAIN LOWER

43910-27C11-000   4391027C11000

4391027C11000

Unit Price

19
BOLT, CHAIN ROLL *S1
BOLT (8X41)

09103-08083-000   0910308083000

0910308083000

Unit Price

20
WASHER
SHIM (8X12X1)

09181-08111-000   0918108111000

0918108111000

Unit Price

21
PROTECTOR, ENGINE

42510-29F00-000   4251029F00000

4251029F00000

Unit Price

22
BOLT
BOLT (8X16.5)

09111-08087-000   0911108087000

0911108087000

Unit Price

23
BOLT

01550-0612A-000   015500612A000

015500612A000

Unit Price

24
DISCONTINUE

42521-29F00-000  

4252129F00000
Not available
25
DISCONTINUE

42531-29F00-000  

4253129F00000
Not available
26
HOLDER, BATTERY

41541-29F00-000   4154129F00000

4154129F00000

Unit Price

27
BOLT
BOLT (6X17.8)

09111-06072-000   0911106072000

0911106072000

Unit Price

28
BAND, BATTERY HOLDER
BAND

41561-29F00-000   4156129F00000

4156129F00000

Unit Price
