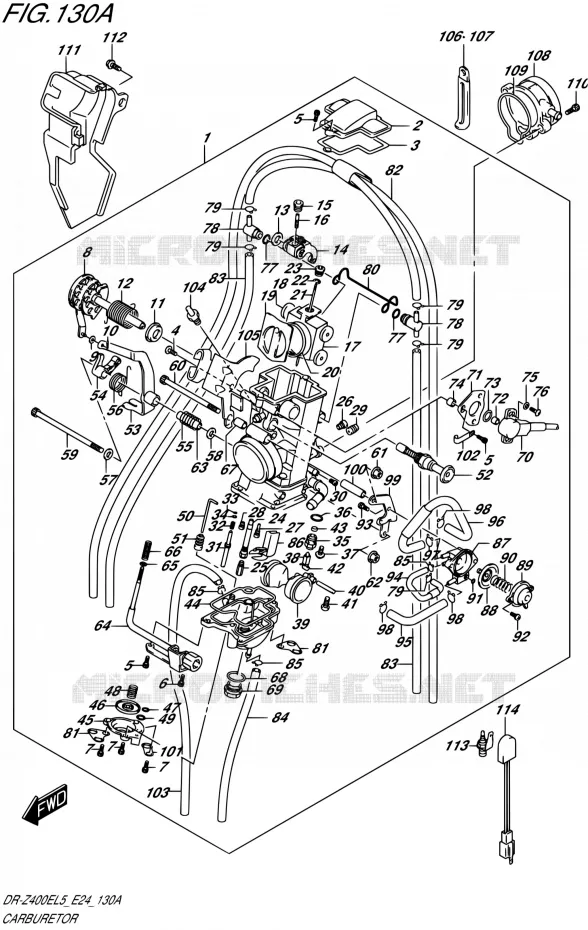

CARBURETOR FOR SUZUKI DR-Z 400 2015

AIR FILTER

Item numbers

CARBURETOR ASSY

13200-29FJ0-000 1320029FJ0000

Not available

.TOP

13261-29F00-000 1326129F00000

$69,97

Unit Price

WASHER
.TOP WASHER

13266-29F00-000 1326629F00000

$23,97

Unit Price

BOLT
.BOLT (4X8)

13612-29F00-000 1361229F00000

$6,97

Unit Price

.BOLT (4X12)

13612-29F10-000 1361229F10000

$8,97

Unit Price

.BOLT (4X12)

13612-29F10-000 1361229F10000

$8,97

Unit Price

.BOLT (4X8)

13612-29F30-000 1361229F30000

$8,97

Unit Price

.SHAFT, THROTTLE

13550-29F00-000 1355029F00000

$156,97

Unit Price

.WASHER

13418-29F00-000 1341829F00000

$3,97

Unit Price

.PIN

13544-29F00-000 1354429F00000

$3,97

Unit Price

.COLLAR

13574-29F00-000 1357429F00000

$9,97

Unit Price

.SPRING

13573-29F00-000 1357329F00000

$12,97

Unit Price

.WASHER

13572-29F00-000 1357229F00000

$3,97

Unit Price

.LINK ARM

13564-29F00-000 1356429F00000

$88,97

Unit Price

.NUT

13607-29F00-000 1360729F00000

$9,97

Unit Price

.SCREW

13605-29F00-000 1360529F00000

$20,97

Unit Price

.VALVE, THROTTLE

13551-29F00-000 1355129F00000

$517,97

Unit Price

.BEARING

13570-29F00-000 1357029F00000

$12,97

Unit Price

.VALVE

13555-29F00-000 1355529F00000

$256,97

Unit Price

.LIP SEAL

13559-29F00-000 1355929F00000

$24,97

Unit Price

.NEEDLE, JET

13383-29F00-000 1338329F00000

$19,97

Unit Price

.BAR CLIP

13394-29F00-000 1339429F00000

$6,97

Unit Price

.SCREW, NEEDLE SET

13605-29F10-000 1360529F10000

$16,97

Unit Price

.MAIN NOZZLE

13342-29F00-000 1334229F00000

$56,97

Unit Price

.JET, MAIN (165)

09491-33009-000 0949133009000

$25,97

Unit Price

.JET, MAIN AIR (200)

09491-40014-000 0949140014000

$22,97

Unit Price

.JET, SLOW (45)

09492-45038-000 0949245038000

$25,97

Unit Price

.JET, STARTER (65)

09492-65009-000 0949265009000

$22,97

Unit Price

.JET, SLOW AIR (60)

09491-60012-000 0949160012000

$25,97

Unit Price

.JET, AIR (90)

09493-90009-000 0949390009000

$23,97

Unit Price

SCREW, ADJUST
.SCREW, ADJUST (1, 1/2)

13279-29F00-000 1327929F00000

$14,97

Unit Price

.SPRING

13271-29F00-000 1327129F00000

$6,97

Unit Price

.O RING

13295-26E00-000 1329526E00000

$6,97

Unit Price

.WASHER

13291-26E00-000 1329126E00000

$4,97

Unit Price

VALVE SEAT
.VALVE SET

13371-29F00-000 1337129F00000

$30,97

Unit Price

.O RING

13374-29F00-000 1337429F00000

$6,97

Unit Price

.SCREW

13601-29F00-000 1360129F00000

$9,97

Unit Price

.VALVE, FLOAT

13370-29F00-000 1337029F00000

$49,97

Unit Price

.FLOAT

13250-29F00-000 1325029F00000

$68,97

Unit Price

PIN, FLOAT
.PIN

13254-26E00-000 1325426E00000

$5,97

Unit Price

.SCREW

13602-43E00-000

Not available

.CLIP

13375-26E00-000 1337526E00000

$8,97

Unit Price

SCREEN, FUEL STRAINER
.STRAINER

15165-24F00-000 1516524F00000

$12,97

Unit Price

.PACKING

13251-29F00-000 1325129F00000

$33,97

Unit Price

.COVER

13488-29F00-000 1348829F00000

$25,97

Unit Price

.DIAPHRAGM

13491-29F00-000 1349129F00000

$35,97

Unit Price

U RING

13497-14F00-000

13497-14F01-000

$5,97

Unit Price

.SPRING

13494-15F00-000 1349415F00000

$5,97

Unit Price

.O RING

13673-26E10-000 1367326E10000

$6,97

Unit Price

.ROD

13487-29F00-000 1348729F00000

$21,97

Unit Price

CAP

13499-29F00-000

13499-29F01-000

$9,97

Unit Price

.VALVE, STARTER

13410-29F00-000 1341029F00000

$91,97

Unit Price

.LINK LEVER

13490-29F00-000 1349029F00000

$30,97

Unit Price

.LINK LEVER

13490-29F10-000 1349029F10000

$17,97

Unit Price

.SPRING

13494-29F00-000 1349429F00000

$10,97

Unit Price

.SPRING

13494-29F10-000 1349429F10000

$12,97

Unit Price

.WASHER

13615-29F00-000 1361529F00000

$3,97

Unit Price

.COLLAR

13582-29F00-000 1358229F00000

$3,97

Unit Price

.BOLT

13612-29F50-000 1361229F50000

Not available

.BOLT

13612-29F50-000 1361229F50000

Not available

.NUT

13607-24F00-000 1360724F00000

$2,97

Unit Price

.NUT

13607-24F00-000 1360724F00000

$2,97

Unit Price

.COLLAR

13582-29F10-000 1358229F10000

$16,97

Unit Price

SCREW, STOP

13270-29F00-000

13270-29F01-000

$87,97

Unit Price

.WASHER

13427-26E00-000 1342726E00000

$4,97

Unit Price

.SPRING

13271-26EA0-000 1327126EA0000

$8,97

Unit Price

.COLLAR

13582-29F20-000 1358229F20000

$14,97

Unit Price

.O RING

13246-29F00-000 1324629F00000

$7,97

Unit Price

.BOLT

13247-29F00-000 1324729F00000

$60,97

Unit Price

13580-29F01
.SENSOR, THROTTLE

13580-29F00-000 1358029F00000

Not available

.PLATE

13627-29F00-000 1362729F00000

$45,97

Unit Price

.COLLAR

13582-24F00-000 1358224F00000

$12,97

Unit Price

.O RING

13575-03F00-000 1357503F00000

$6,97

Unit Price

.COLLAR

13582-29F30-000 1358229F30000

$10,97

Unit Price

.WASHER

13572-14F00-000 1357214F00000

$3,97

Unit Price

SCREW
.BOLT

13613-24F00-000 1361324F00000

$4,97

Unit Price

O RING

13673-26E00-000

13673-26E01-000

$6,97

Unit Price

.JOINT

13687-29F00-000 1368729F00000

$17,97

Unit Price

.CLIP

09401-06101-000 0940106101000

$3,97

Unit Price

.CLIP

13692-29F00-000 1369229F00000

$20,97

Unit Price

PLATE
.BINDER

13693-36E00-000 1369336E00000

$10,97

Unit Price

.PIPE

13680-29F30-000 1368029F30000

$51,97

Unit Price

PIPE

13686-29F00-000

13686-29F01-000

$19,97

Unit Price

PIPE, RUBBER

13684-29F00-000

13684-29F01-000

$16,97

Unit Price

.CLIP

09401-05402-XC0 0940105402XC0

$2,97

Unit Price

.PLATE

13257-29F00-000 1325729F00000

$35,97

Unit Price

.BODY, DIAPHRAGM

13484-29F00-000 1348429F00000

$44,97

Unit Price

.DIAPHRAGM

13480-29F00-000 1348029F00000

$46,97

Unit Price

.COVER

13484-29F10-000 1348429F10000

$24,97

Unit Price

.SPRING

13481-29F00-000 1348129F00000

$5,97

Unit Price

U RING

13486-15F00-000

13486-15F01-000

$4,97

Unit Price

.SCREW

13601-15F20-000 1360115F20000

$4,97

Unit Price

.SCREW

02112-3408A-000 021123408A000

$3,97

Unit Price

DISCONTINUE
.PIPE, RUBBER

13680-29F10-000

Not available

DISCONTINUE
.PIPE, RUBBER

13681-29F00-000

Not available

.PIPE, RUBBER

13680-29F20-000 1368029F20000

$37,97

Unit Price

.CLIP

09401-07101-000 0940107101000

Not available

.CLIP

13671-29F00-000 1367129F00000

$3,97

Unit Price

.PLATE, STAY

13628-29F00-000 1362829F00000

$29,97

Unit Price

100

.COLLAR

13582-29F40-000 1358229F40000

$14,97

Unit Price

101

PLATE
.BINDER

13693-28E00-000 1369328E00000

$9,97

Unit Price

102

.BINDER

13432-29F00-000 1343229F00000

$13,97

Unit Price

103

.PIPE

13683-29F00-000 1368329F00000

$17,97

Unit Price

104

.SCREW, STOP

13296-29F00-000 1329629F00000

$20,97

Unit Price

105

.PLATE, STAY

13621-29F10-000 1362129F10000

$68,97

Unit Price

106

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

107

CLAMP, L:120 T:1.0
CLAMP, L:120

09404-08420-000 0940408420000

$5,97

Unit Price

108

JOINT, AIR CLEANER

13670-29F00-000 1367029F00000

$59,97

Unit Price

109

O RING, AIR CLNR JOINT
O RING, AIR CLEANER JOINT

13278-29F00-000 1327829F00000

$12,97

Unit Price

110

BOLT

07130-0512A-000

07130-0512B-000

$4,97

Unit Price

111

COVER, CARBURETOR

13311-29F10-000 1331129F10000

$30,97

Unit Price

112

BOLT (6X12)

09111-06107-000 0911106107000

$3,97

Unit Price

113

HEATER ASSY, CARBURETOR(15W)
HEATER ASSY, CARBURETOR

13650-25E01-000 1365025E01000

$34,97

Unit Price

114

THERMO SWITCH, CARB HEATER
SWITCH, CARB HEATER THERMO

13655-16F00-000 1365516F00000

$59,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
