Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

REAR SHOCK ABSORBER

REAR WHEEL FOR SUZUKI DR-Z 400 2015

REAR CALIPER

Item numbers

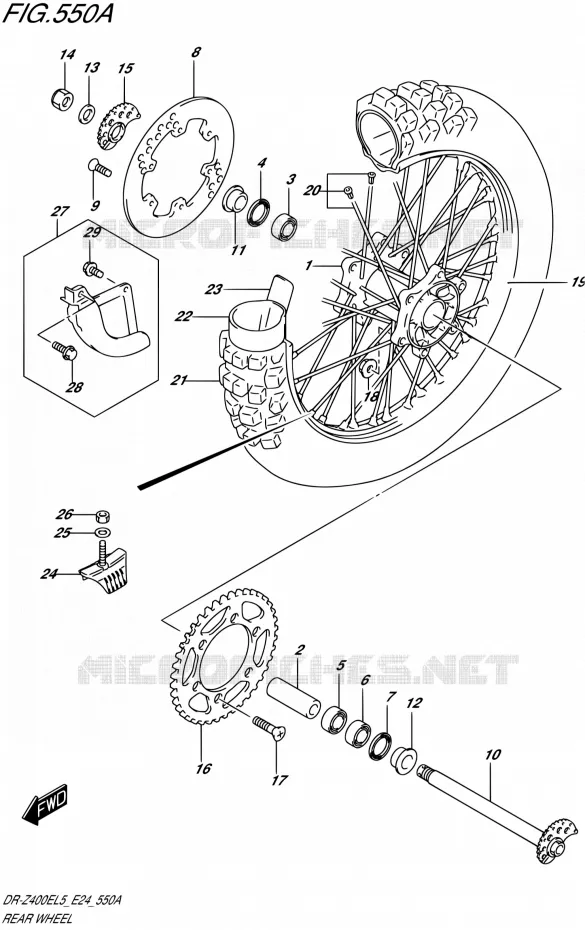

REAR WHEEL Suzuki MOTO 400 DR-Z 2015 DR-Z400E L5 (E24)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
HUB, RR WHEEL
HUB, REAR WHEEL

64111-29F00-000   6411129F00000

6411129F00000

Unit Price

2
SPACER, RR HUB BEARING
SPACER, BEARING

64731-29F00-000   6473129F00000

6473129F00000

Unit Price

3
BEARING

08133-60047-000   0813360047000

0813360047000

Unit Price

4
SEAL(29X42X6)

64841-28E00-000  

64841-28E01-000
 6484128E00000

Unit Price

5
BEARING

08133-60047-000   0813360047000

0813360047000

Unit Price

6
BALL BEARING
BALL BEARING

08123-62047-000  

08123-6204B-000
 0812362047000

Unit Price

7
SEAL
OIL SEAL (29X47X6)

09283-29006-000   0928329006000

0928329006000

Unit Price

8
DISC, REAR BRAKE

69211-43D00-000   6921143D00000

6921143D00000

Unit Price

9
SCREW
SCREW (6X18)

09120-06014-000   0912006014000

0912006014000

Unit Price

10
AXLE, RR
AXLE, REAR

64710-29F00-000   6471029F00000

6471029F00000

Unit Price

11
SPACER, RR AXLE
SPACER, RH

64751-28E20-000   6475128E20000

6475128E20000

Unit Price

12
SPACER, RR AXLE
SPACER, LH

64751-28E20-000   6475128E20000

6475128E20000

Unit Price

13
WASHER
WASHER (19X32X3.2)

09160-19022-000   0916019022000

0916019022000

Unit Price

14
NUT

08319-2118A-000   083192118A000

083192118A000

Unit Price

15
ADJUSTER, CHAIN, R
ADJUSTER, CHAIN RH

61410-29F00-000   6141029F00000

6141029F00000

Unit Price

16
SPROCKET, RR(NT:47-520)
SPROCKET, REAR (NT:47-520)

64511-29F00-000   6451129F00000

6451129F00000

Unit Price

17
SCREW<br />BOLT (8X30.5)
SCREW
BOLT (8X30.5)

09120-08010-000   0912008010000

0912008010000

Unit Price

18
NUT
NUT

08319-3108A-000   083193108A000

083193108A000

Unit Price

19
RIM, RR WHEEL(18X2.15 AL)
RIM, REAR WHEEL (2.15X18)

65311-29F10-000   6531129F10000

6531129F10000

Unit Price

20
SPOKE SET, RR WHEEL
SPOKE ASSY, REAR WHEEL

65320-29F10-000   6532029F10000

6532029F10000

Unit Price

21
TIRE, REAR (120/90-18 65P) (BRIDGESTONE)

65110-29F20-000   6511029F20000

6511029F20000
Not available
22
TUBE ASSY, WHEEL INNER

65200-29E01-000   6520029E01000

6520029E01000

Unit Price

23
PROTECTOR, WHL INR TUBE
PROTECTOR, INNER TUBE

65261-14E01-000   6526114E01000

6526114E01000

Unit Price

24
STOPPER, BEAD(2.15)
STOPPER, BEAD

65270-29F00-000   6527029F00000

6527029F00000

Unit Price

25
WASHER
WASHER

08322-0108A-000  

083220108A000
Not available
26
NUT

08310-0008A-000   083100008A000

083100008A000

Unit Price

27
COVER SET, REAR DISC
COVER, REAR DISC

69200-28C00-000   6920028C00000

6920028C00000

Unit Price

28
BOLT
BOLT

01550-0620B-000   015500620B000

015500620B000

Unit Price

29
BOLT
BOLT

01550-0612B-000   015500612B000

015500612B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 400 DR-Z 2015

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 DR-Z 2015

Choose your Suzuki 400 2015 DR-Z model

400 DR-Z 2015 DR-Z400E L5 (E24)

Suzuki DR-Z

Displacement: 400 cc
Year: 2015
Model code DR-Z400E L5 (E24)
