MUFFLER

OIL PUMP FOR SUZUKI DR-Z 400 2015

OIL HOSE

Item numbers

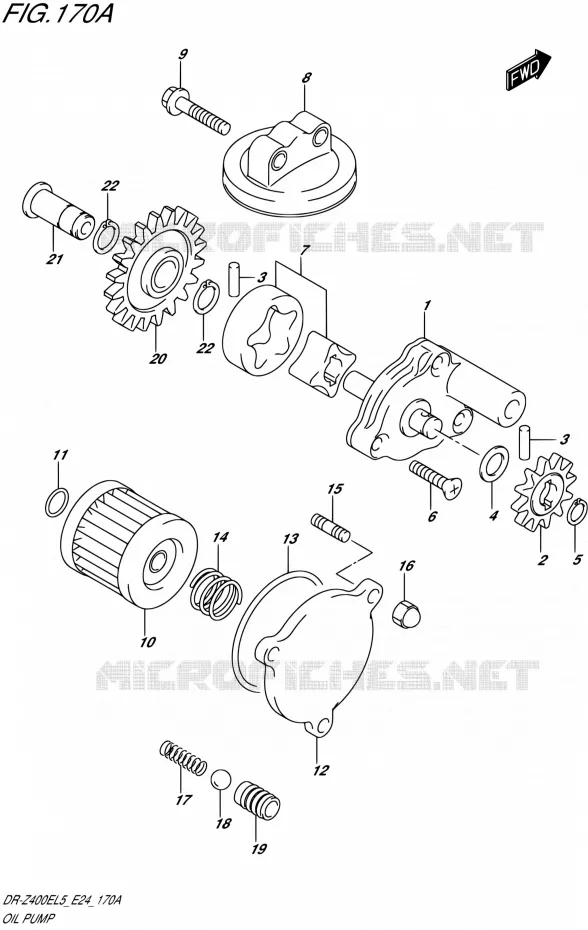

OIL PUMP Suzuki MOTO 400 DR-Z 2015 DR-Z400E L5 (E24)
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
1
PUMP ASSY, ENGINE OIL NO.1

16400-29F00-000   1640029F00000

1640029F00000

Unit Price

2
GEAR, OIL PUMP DRIVEN
GEAR, OIL PUMP DRIVEN (NT:12)

16331-29F01-000   1633129F01000

1633129F01000

Unit Price

3
GR SHIFT CAM DR PIN<br />PIN (4X15.8)
GR SHIFT CAM DR PIN
PIN (4X15.8)

09261-04009-000   0926104009000

0926104009000

Unit Price

4
SHIM (10X18X0.5)
SHIM (10X18X0.5)

09181-10158-000   0918110158000

0918110158000

Unit Price

5
CIRCLIP
CIRCLIP

08331-31109-000   0833131109000

0833131109000

Unit Price

6
SCREW

02122-0625A-000  

02122-0625B-000
 021220625A000

Unit Price

7
ROTOR SET, OIL PUMP NO.2

16410-29F00-000   1641029F00000

1641029F00000

Unit Price

8
STRAINER, OIL PUMP NO.2

16520-29F01-000   1652029F01000

1652029F01000

Unit Price

9
BOLT
BOLT

01550-0625A-000   015500625A000

015500625A000

Unit Price

10
FILTER ASSY, ENGINE OIL
FILTER, ENGINE OIL

16510-29F00-000   1651029F00000

1651029F00000

Unit Price

11
ENG OIL PUMP O RING<br />O RING (D:1.9,ID:13)
ENG OIL PUMP O RING
O RING (D:1.9, ID:13)

09280-13004-000   0928013004000

0928013004000

Unit Price

12
CAP, OIL FILTER

16512-47E00-000   1651247E00000

1651247E00000

Unit Price

13
O-RING, OIL FLT CAP
O RING (D:2.4, ID:52.6)

09280-54001-000   0928054001000

0928054001000

Unit Price

14
SPRING
SPRING

09440-18002-000   0944018002000

0944018002000

Unit Price

15
BOLT, OIL FILTER CAP
STUD BOLT

09108-06123-000   0910806123000

0910806123000

Unit Price

16
NUT

08313-1006A-000   083131006A000

083131006A000

Unit Price

17
SPRING

09440-07073-000   0944007073000

0944007073000

Unit Price

18
BALL

06111-12004-000   0611112004000

0611112004000

Unit Price

19
SEAT, OIL CHECK VALVE

16442-29F00-000   1644229F00000

1644229F00000

Unit Price

20
GEAR, OIL PUMP IDLE
GEAR, OIL PUMP IDLE (NT:20)

16321-29F00-000   1632129F00000

1632129F00000

Unit Price

21
SHAFT, OIL PUMP IDLE GEAR

16322-29F00-000   1632229F00000

1632229F00000

Unit Price

22
CIRCLIP
CIRCLIP

08331-3112A-000   083313112A000

083313112A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 400 DR-Z 2015
