CYLINDER HEAD

CYLINDER FOR SUZUKI DR-Z 400 2015

CASING

Item numbers

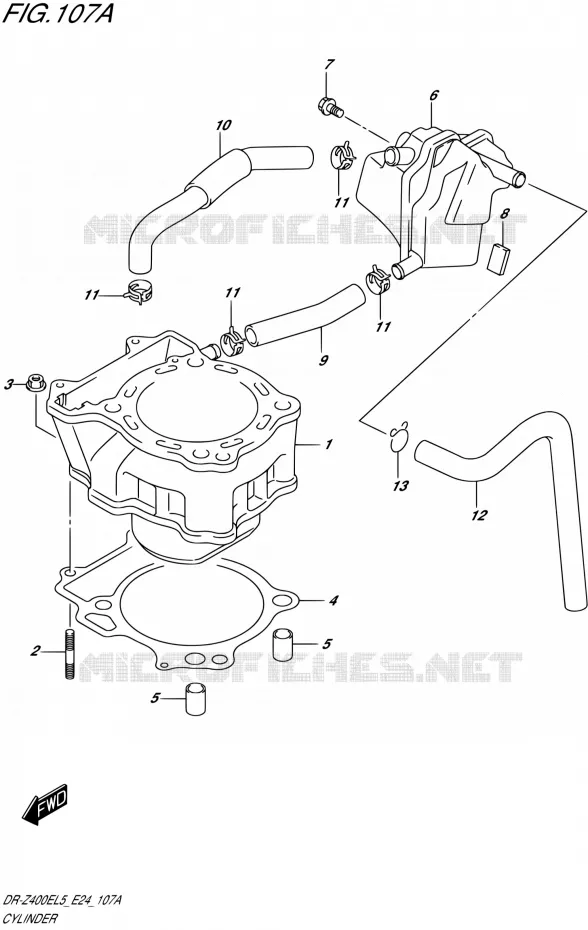

CYLINDER Suzuki MOTO 400 DR-Z 2015 DR-Z400E L5 (E24)
1
2
3
4
5
5
6
7
8
9
10
11
11
11
11
12
13
1
CYLINDER

11210-29F20-0F0   1121029F200F0

1121029F200F0

Unit Price

2
BOLT, STUD

01421-0625A-000  

01421-06257-000
 014210625A000

Unit Price

3
NUT

08316-1006A-000   083161006A000

083161006A000

Unit Price

4
GASKET, CYLINDER

11241-29F00-000   1124129F00000

1124129F00000

Unit Price

5
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

6
TANK, OIL RETURN

11330-29F00-000   1133029F00000

1133029F00000

Unit Price

7
BOLT
BOLT

01550-0610A-000  

01550-0610B-000
 015500610A000

Unit Price

8
PROTECTOR(170X95X3.0)<br />CUSHION
PROTECTOR(170X95X3.0)
CUSHION

33651-37000-000   3365137000000

3365137000000

Unit Price

9
HOSE, BREATHER

11332-29F00-000   1133229F00000

1133229F00000

Unit Price

10
HOSE, BREATHER

11333-29F00-000   1133329F00000

1133329F00000

Unit Price

11
CLIP
CLIP

09401-15404-000   0940115404000

0940115404000

Unit Price

12
HOSE, BREATHER

11334-29F00-000   1133429F00000

1133429F00000

Unit Price

13
CLIP,BREATHER TUBE<br />CLIP
CLIP, BREATHER TUBE
CLIP

09401-15101-000   0940115101000

0940115101000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 400 DR-Z 2015

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 DR-Z 2015

Choose your Suzuki 400 2015 DR-Z model

400 DR-Z 2015 DR-Z400E L5 (E24)

Suzuki DR-Z

Displacement: 400 cc
Year: 2015
Model code DR-Z400E L5 (E24)
