CENTRAL FAIRINGTRAL (SV650AL9 E19)

CENTRAL FAIRINGTRAL (SV650AUL9 E02) FOR SUZUKI SV 650 2019

CENTRAL FAIRINGTRAL (SV650AUL9 E19)

Item numbers

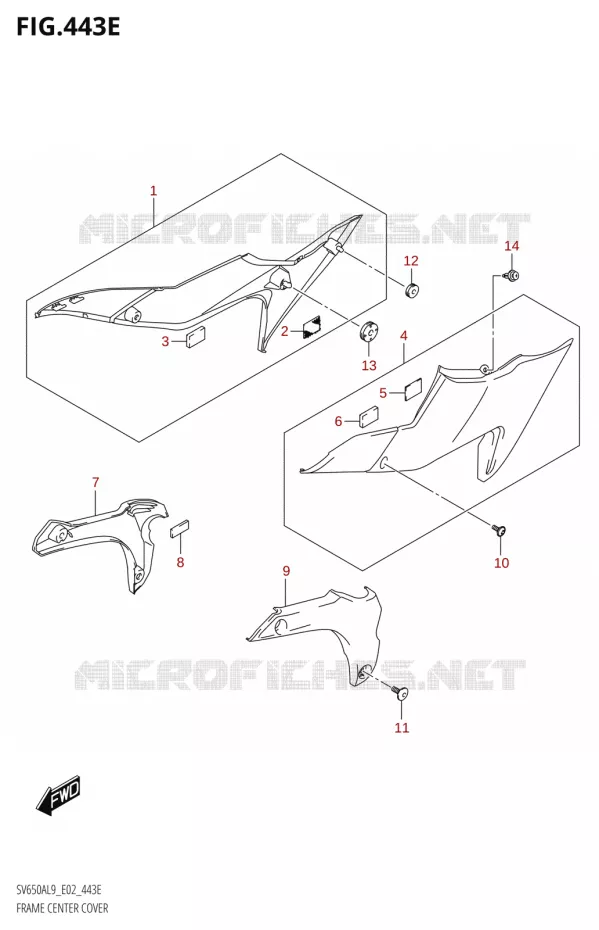

CENTRAL FAIRINGTRAL (SV650AUL9 E02) Suzuki MOTO 650 SV 2019 SV650A L9 (E02)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
COVER COMP, FRAME FRONT, R
COVER, FRAME FRONT RH

47110-18K00-000   4711018K00000

4711018K00000

Unit Price

2
FASTENER(33X25X2.6)
.FASTENER

44572-13G00-000   4457213G00000

4457213G00000

Unit Price

3
CUSHION, HEAD LAMP HOUSING

63411-35B00-000  

51827-01A00-000
 6341135B00000

Unit Price

4
COVER COMP, FRAME, L
COVER, FRAME LH

47210-18K00-000   4721018K00000

4721018K00000

Unit Price

5
FASTENER(33X25X2.6)
.FASTENER

44572-13G00-000   4457213G00000

4457213G00000

Unit Price

6
CUSHION, HEAD LAMP HOUSING

63411-35B00-000  

51827-01A00-000
 6341135B00000

Unit Price

7
COVER, FRAME LOWER, R
COVER, FRAME LOWER RH (BLACK)

47611-18K00-YKV   4761118K00YKV

4761118K00YKV

Unit Price

8
CUSHION(18X43X5)
CUSHION, FRAME COVER LWR NO.2

47613-44H00-000   4761344H00000

4761344H00000

Unit Price

9
COVER, FRAME LOWER, L
COVER, FRAME LOWER LH (BLACK)

47711-18K00-YKV   4771118K00YKV

4771118K00YKV

Unit Price

10
BOLT
BOLT (5X13)

09139-05074-000   0913905074000

0913905074000

Unit Price

11
SCREW (6X16)

47915-31J00-000   4791531J00000

4791531J00000

Unit Price

12
CUSHION
CUSHION

09320-06504-000   0932006504000

0932006504000

Unit Price

13
CUSHION(8X26X7)
CUSHION(8X26X7)

09320-08028-000  

09320-08514-000
 0932008028000

Unit Price

14
CLIP

09409-06322-000  

09409-06322-5PK
 0940906322000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
