Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT WHEELSV650AUL9 E19) NOTE : COLOR : AGT=YWW(WHITE),YVB(BLACK)

ABS SYSTEM FOR SUZUKI SV 650 2019

FRONT CALIPER

Item numbers

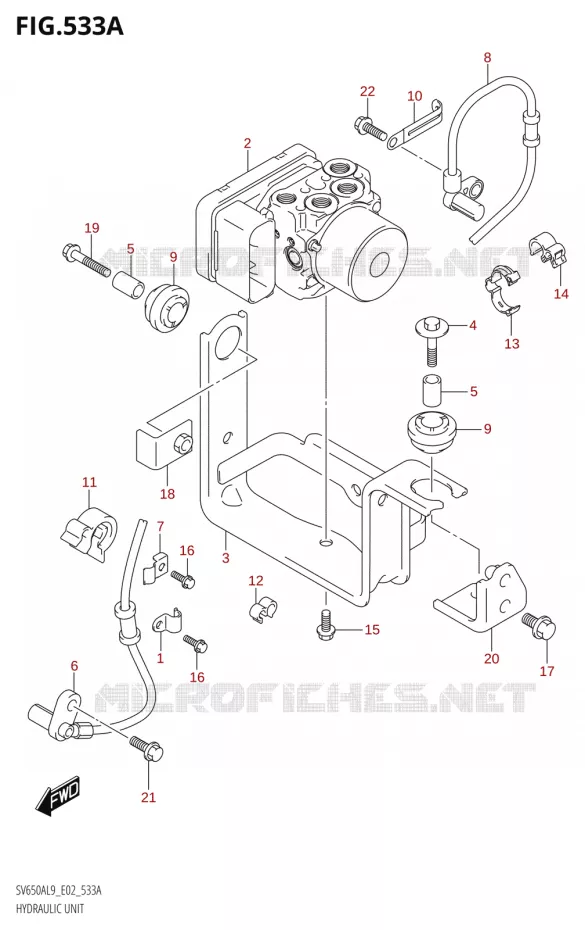

ABS SYSTEM Suzuki MOTO 650 SV 2019 SV650A L9 (E02)
1
2
3
4
5
5
6
7
8
9
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
1
CLAMP, ABS SENSOR FR
CLAMP, ABS SENSOR FRONT

55731-15H00-000   5573115H00000

5573115H00000

Unit Price

2
UNIT ASSY, HYDRAULIC ABS

55600-18K10-000   5560018K10000

5560018K10000
Not available
3
HOLDER COMP, HYDR UNIT ABS
HOLDER, HYDR UNIT

55660-18K10-000   5566018K10000

5566018K10000

Unit Price

4
BOLT, HYDR UNIT MTG
BOLT

09116-06510-000   0911606510000

0911606510000

Unit Price

5
SPACER, HYDR UNIT MTG
SPACER, HYDR (#05)UNIT MTG

55662-10G00-000   5566210G00000

5566210G00000

Unit Price

6
SENSOR COMP, FR WHEEL SPEED
SENSOR, FR WHEEL SPEED

55710-18K20-000   5571018K20000

5571018K20000

Unit Price

7
CLAMP, SENSOR LEAD FR NO.3

55733-44H00-000   5573344H00000

5573344H00000

Unit Price

8
SENSOR COMP, RR WHEEL SPEED
SENSOR, RR WHEEL ABS

65710-18K10-000   6571018K10000

6571018K10000

Unit Price

9
RUBBER

09320-10066-000   0932010066000

0932010066000

Unit Price

10
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

11
CLAMP

09408-00307-000   0940800307000

0940800307000

Unit Price

12
CLAMP
CLIP

09408-00101-000   0940800101000

0940800101000

Unit Price

13
CLAMP

09408-00259-000   0940800259000

0940800259000

Unit Price

14
CLAMP

09408-00266-000   0940800266000

0940800266000

Unit Price

15
BOLT

01550-0612A-000   015500612A000

015500612A000

Unit Price

16
BOLT(6X12)
BOLT

09103-06525-000   0910306525000

0910306525000

Unit Price

17
BOLT
BOLT

01550-0612B-000   015500612B000

015500612B000

Unit Price

18
NUT COMP, RUBBER UNIT MTG
NUT, RUBBER UNIT MTG

55680-18K00-000   5568018K00000

5568018K00000

Unit Price

19
BOLT, CLUTCH COV, L30
BOLT (L:30)

09103-06529-000   0910306529000

0910306529000

Unit Price

20
BRACKET COMP, ABS UNIT HOLDER
BRACKET, ABS UNIT HOLDER

55670-18K00-000   5567018K00000

5567018K00000

Unit Price

21
BOLT, CONNECTOR
BOLT

09103-06526-000   0910306526000

0910306526000

Unit Price

22
BOLT, CONNECTOR
BOLT

09103-06526-000   0910306526000

0910306526000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
