Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TAIL LIGHT ASSY

WIRING HARNESSU (SV650AL9 E02) FOR SUZUKI SV 650 2019

WIRING HARNESSU (SV650AL9 E19)

Item numbers

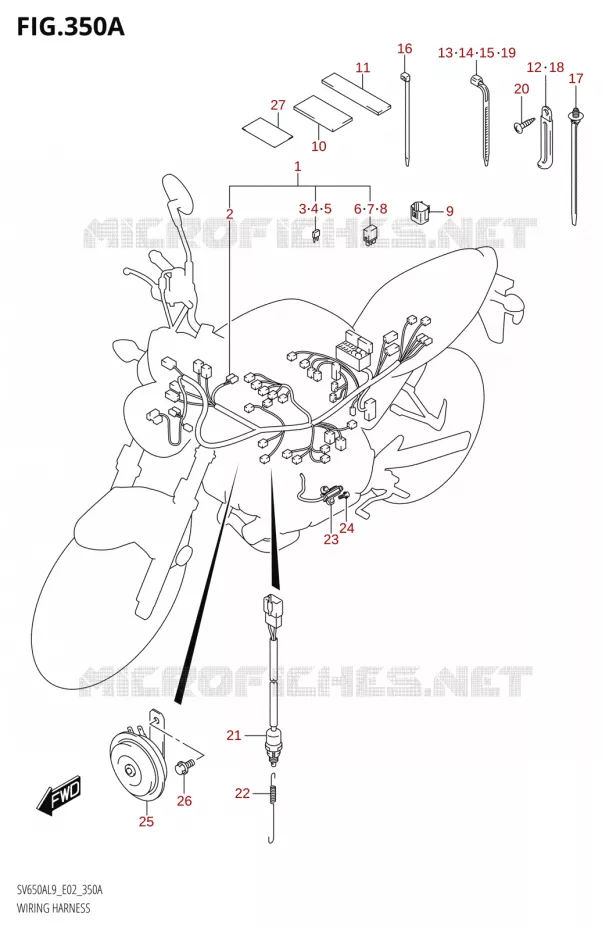

WIRING HARNESSU (SV650AL9 E02) Suzuki MOTO 650 SV 2019 SV650A L9 (E02)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
HARNESS, WIRING

36610-18KM0-000   3661018KM0000

3661018KM0000
Not available
2
.COVER, SPEEDOMETER COUPLER

36618-35F00-000   3661835F00000

3661835F00000

Unit Price

3
FUSE, LOW PROFILE
.FUSE (10A)

09481-10504-000   0948110504000

0948110504000

Unit Price

4
FUSE, LOW
.FUSE (15A)

09481-15504-000   0948115504000

0948115504000

Unit Price

5
FUSE, LOW PROFILE
.FUSE (20A)

09481-20504-000   0948120504000

0948120504000

Unit Price

6
.RELAY ASSY

38860-76F01-000   3886076F01000

3886076F01000

Unit Price

7
.RELAY ASSY

38860-76F01-000   3886076F01000

3886076F01000

Unit Price

8
.RELAY ASSY

38860-76F01-000   3886076F01000

3886076F01000

Unit Price

9
CAP, TS

36654-06J00-000  

36654-06J01-000
 3665406J00000

Unit Price

10
PROTECTOR (30X60X3)

36920-08D00-000   3692008D00000

3692008D00000

Unit Price

11
PROTECTOR
PROTECTOR (30X70)

94474-22D00-000   9447422D00000

9447422D00000

Unit Price

12
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

13
BAND,WIRING HARNESS<br />CLAMP (L:125)
BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

14
CLAMP,WIRING HARNESS<br />CLAMP (L:165)
CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000   0940718402000

0940718402000

Unit Price

15
CLAMP

09407-19401-000  

09407-22403-000
 0940719401000

Unit Price

16
CLAMP<br />CLAMP (L:145)
CLAMP
CLAMP (L:145)

09407-14407-000   0940714407000

0940714407000

Unit Price

17
CLAMP
CLAMP (L:154)

09407-17403-000   0940717403000

0940717403000

Unit Price

18
CLAMP(L:80)

09404-06433-000  

09404-06036-000
 0940406433000

Unit Price

19
CLAMP<br />CLAMP (L:235)
CLAMP
CLAMP (L:235)

09407-25401-000   0940725401000

0940725401000

Unit Price

20
SCREW
SCREW

03541-0412A-000   035410412A000

035410412A000

Unit Price

21
SWITCH ASSY, STOP LAMP

37740-44H01-000   3774044H01000

3774044H01000

Unit Price

22
BRAKE SWITCH SPRING
SPRING

09443-06016-000   0944306016000

0944306016000

Unit Price

23
37840-25D02

37840-25D00-000  

37840-25D01-000
 3784025D00000
24
BOLT

01550-0620A-000   015500620A000

015500620A000

Unit Price

25
HORN ASSY

38500-18K00-000   3850018K00000

3850018K00000

Unit Price

26
BOLT
BOLT

01550-0812A-000  

01550-0812B-000
 015500812A000

Unit Price

27
TAPE, HARNESS(28X50X0.13)
PROTECTOR, WIRING HARNESS

36611-16G00-000   3661116G00000

3661116G00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
