INDICATORS FOR SUZUKI SV 650 2019

TAIL LIGHT ASSY

Item numbers

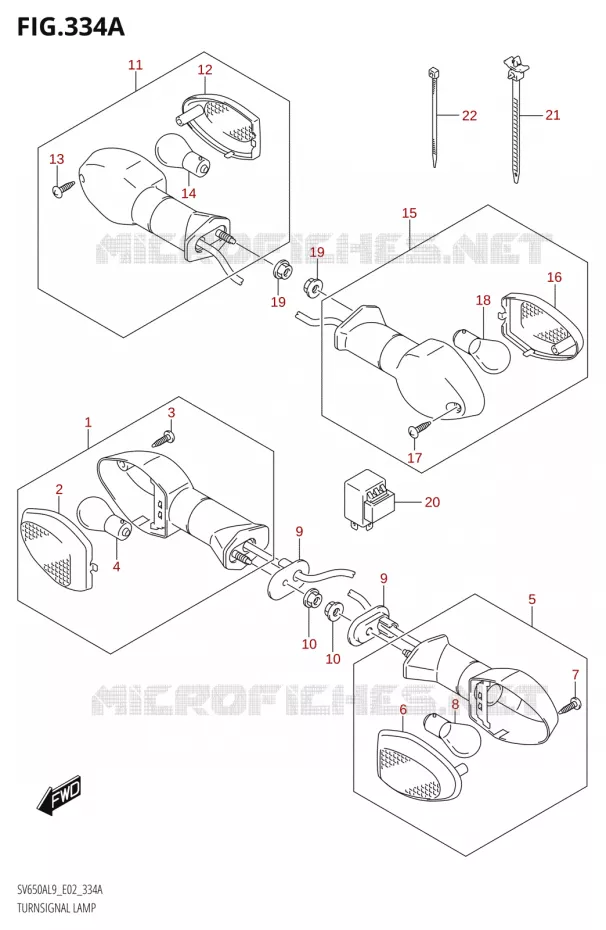

INDICATORS Suzuki MOTO 650 SV 2019 SV650A L9 (E02)
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
17
18
19
19
20
21
22
1
LAMP ASSY, FRONT TURNSIGNAL, R
LAMP ASSY, FRONT TURNSIGNAL RH

35601-08JB0-000   3560108JB0000

3560108JB0000

Unit Price

2
LENS
.LENS, RH

35612-08JA0-000   3561208JA0000

3561208JA0000

Unit Price

3
.SCREW

03211-0414B-000   032110414B000

032110414B000

Unit Price

4
BULB(12V55W/H7/PX26D/PHILIPS)
.BULB (12V, 21W)

09471-12186-000   0947112186000

0947112186000

Unit Price

5
LAMP ASSY, FRONT TURNSIGNAL, L
LAMP ASSY, FRONT TURNSIGNAL LH

35602-08JB0-000   3560208JB0000

3560208JB0000

Unit Price

6
LENS
.LENS, LH

35632-08JA0-000   3563208JA0000

3563208JA0000

Unit Price

7
.SCREW

03211-0414B-000   032110414B000

032110414B000

Unit Price

8
BULB(12V55W/H7/PX26D/PHILIPS)
.BULB (12V, 21W)

09471-12186-000   0947112186000

0947112186000

Unit Price

9
PLATE,TURNSIGNAL LAMP<br />PLATE, FRONT TURNSIGNAL
PLATE, TURNSIGNAL LAMP
PLATE, FRONT TURNSIGNAL

35629-31F40-000   3562931F40000

3562931F40000

Unit Price

10
NUT
NUT

08316-1005A-000   083161005A000

083161005A000

Unit Price

11
LAMP ASSY, RR TURNSIGNAL, R
LAMP ASSY, REAR TURNSIGNAL RH

35603-08JB0-000   3560308JB0000

3560308JB0000

Unit Price

12
LENS
.LENS, RH

35632-08JA0-000   3563208JA0000

3563208JA0000

Unit Price

13
.SCREW

03211-0414B-000   032110414B000

032110414B000

Unit Price

14
BULB(12V55W/H7/PX26D/PHILIPS)
.BULB (12V, 21W)

09471-12186-000   0947112186000

0947112186000

Unit Price

15
LAMP ASSY, RR TURNSIGNAL, L
LAMP ASSY, REAR TURNSIGNAL LH

35604-08JB0-000   3560408JB0000

3560408JB0000

Unit Price

16
LENS
.LENS, LH

35612-08JA0-000   3561208JA0000

3561208JA0000

Unit Price

17
.SCREW

03211-0414B-000   032110414B000

032110414B000

Unit Price

18
BULB(12V55W/H7/PX26D/PHILIPS)
.BULB (12V, 21W)

09471-12186-000   0947112186000

0947112186000

Unit Price

19
NUT
NUT

08316-1005A-000   083161005A000

083161005A000

Unit Price

20
RELAYASSY, TURN
RELAY ASSY, TURNSIGNAL LAMP

38610-06F01-000   3861006F01000

3861006F01000

Unit Price

21
BAND,WIRING HARNESS<br />CLAMP (L:125)
BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

22
CLAMP,WIRING HARNESS<br />CLAMP (L:165)
CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000   0940718402000

0940718402000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
