Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FUEL TANK ESS (SV650AL9 E19) (FOR AGT)

FUEL TANK ESS (SV650AUL9 E02) FOR SUZUKI SV 650 2019

FUEL TANK ESS (SV650AUL9 E02) (FOR AGT)

Item numbers

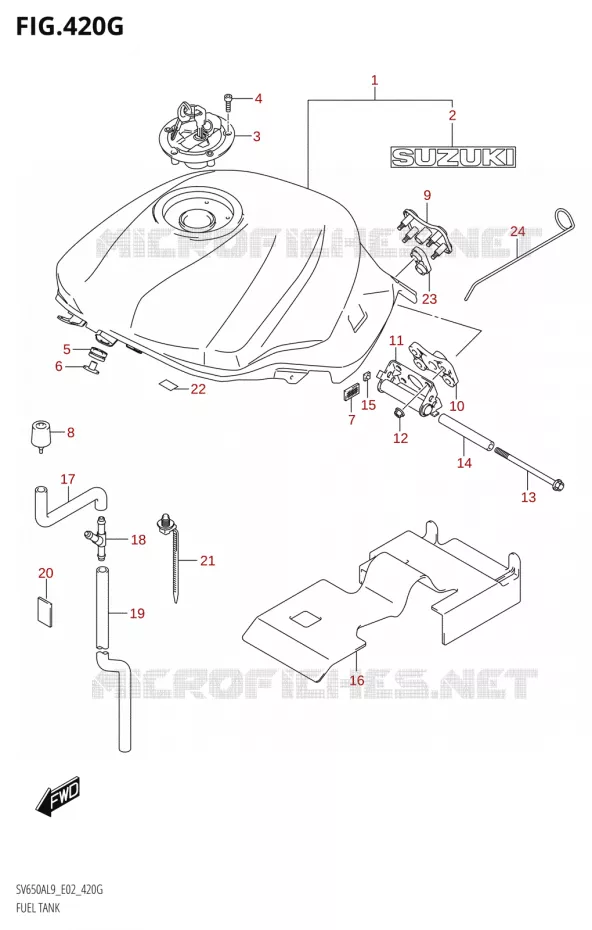

FUEL TANK ESS (SV650AUL9 E02) (FOR YVB,QEB) Suzuki MOTO 650 SV 2019 SV650A L9 (E02)
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
44100-18K61-QEB
TANK ASSY, FUEL (GRAY)

44100-18K60-QEB   4410018K60QEB

4410018K60QEB
Not available
1
44100-18K61-YVB
TANK ASSY, FUEL (BLACK)

44100-18K60-YVB   4410018K60YVB

4410018K60YVB
Not available
2
EMBLEM, 'SUZUKI'
.EMBLEM, "SUZUKI" (GRAY)

68111-47C10-YLF   6811147C10YLF

6811147C10YLF

Unit Price

2
EMBLEM, 'SUZUKI'
.EMBLEM, "SUZUKI" (BLACK)

68111-47C10-YVB   6811147C10YVB

6811147C10YVB

Unit Price

3
CAP SET, FUEL TANK FILLER
CAP SET, FUEL TANK

44200-17820-000   4420017820000

4420017820000

Unit Price

4
BOLT, FUEL TANK FILLER CAP

44244-11J00-000   4424411J00000

4424411J00000

Unit Price

5
CUSHION, FUEL TANK FRONT

44511-18K00-000   4451118K00000

4451118K00000

Unit Price

6
SPACER, FUEL TANK FRONT

44512-04K00-000   4451204K00000

4451204K00000

Unit Price

7
FASTENER(33X25X2.6)
FASTENER, SIDE

44572-13G00-000   4457213G00000

4457213G00000

Unit Price

8
CUSHION, FUEL TANK RR

44542-29G00-000  

44542-29G01-000
 4454229G00000

Unit Price

9
BRACKET, FUEL TANK RR UP
BRACKET, REAR UPPER

44570-16G00-000   4457016G00000

4457016G00000

Unit Price

10
CUSHION, FUEL TANK RR LWR
CUSHION, FUEL TANK REAR LOWER

44542-18K00-000   4454218K00000

4454218K00000

Unit Price

11
BRACKET, FUEL TANK RR
BRACKET, FUEL TANK REAR

44530-44H00-000   4453044H00000

4453044H00000

Unit Price

12
NUT
NUT

08319-3106A-000   083193106A000

083193106A000

Unit Price

13
BOLT (6X100)

09103-06060-000   0910306060000

0910306060000

Unit Price

14
SPACER, FUEL TANK
SPACER, FUEL TANK REAR

44561-35F00-000   4456135F00000

4456135F00000

Unit Price

15
NUT

08318-1106A-000   083181106A000

083181106A000

Unit Price

16
SHEET, HEAT SHIELD RUBBER

44191-18K00-000   4419118K00000

4419118K00000

Unit Price

17
HOSE, FUEL TANK DRAIN NO.1

44423-18K01-000   4442318K01000

4442318K01000

Unit Price

18
JOINT, DRAIN HOSE
3 WAY

09367-08010-000   0936708010000

0936708010000

Unit Price

19
HOSE, FUEL TANK DRAIN NO.2

44423-18K11-000   4442318K11000

4442318K11000

Unit Price

20
SHIELD, DRAIN HOSE HEAT

44427-18K10-000   4442718K10000

4442718K10000

Unit Price

21
CLAMP
CLAMP (L:154)

09407-17403-000   0940717403000

0940717403000

Unit Price

22
TAPE, HARNESS(28X50X0.13)
PROTECTOR, WIRING HARNESS

36611-16G00-000   3661116G00000

3661116G00000

Unit Price

23
CUSHION, FUEL TANK RR UPR
CUSHION, FUEL TANK REAR UPPER

44541-18K00-000   4454118K00000

4454118K00000

Unit Price

24
STAY, FUEL TANK

44560-23H00-000   4456023H00000

4456023H00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
