Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

REAR FAIRINGS (SV650AL9 E02) (FOR YVB,QEB)

REAR FAIRINGS (SV650AL9 E02) FOR SUZUKI SV 650 2019

REAR FAIRINGS (SV650AL9 E19) (FOR YVB,QEB)

Item numbers

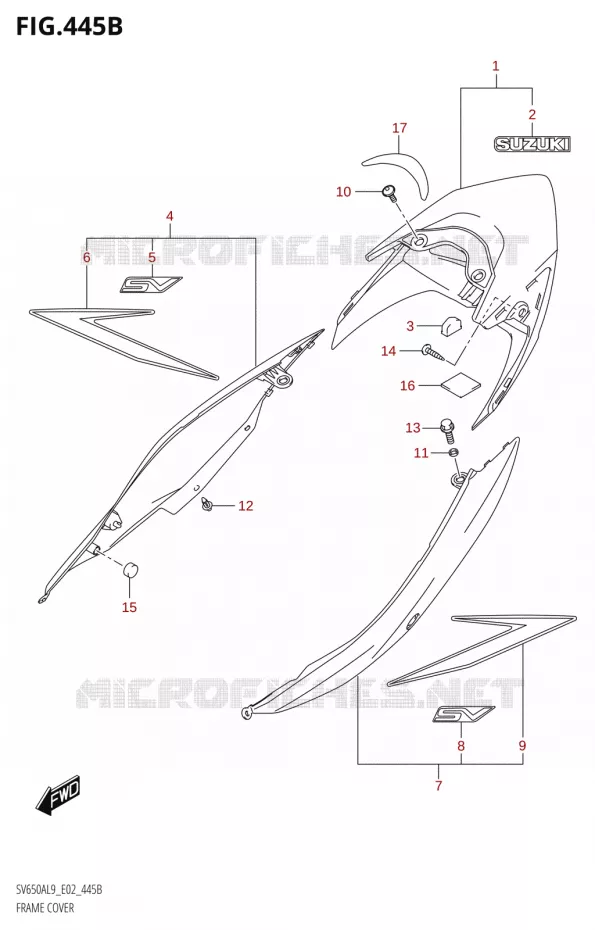

REAR FAIRINGS (SV650AL9 E02) (FOR AGT) Suzuki MOTO 650 SV 2019 SV650A L9 (E02)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
COVER, FRAME RR CTR

47310-18K00-4TX  

47310-18K01-4TX
 4731018K004TX

Unit Price

2
.EMBLEM, "SUZUKI" (BLACK)

68171-28H10-KGL   6817128H10KGL

6817128H10KGL
Not available
3
CUSHION, FRAME COVER CTR

47315-18K00-000   4731518K00000

4731518K00000

Unit Price

4
COVER, FRAME REAR RH (BLACK)

47410-18K30-YVB   4741018K30YVB

4741018K30YVB
Not available
5
.EMBLEM, "SV" (WHITE)

68111-18K00-YWW   6811118K00YWW

6811118K00YWW
Not available
6
.TAPE, FRAME COVER RH (BLUE/BLACK)

68135-18K20-BBD   6813518K20BBD

6813518K20BBD
Not available
7
COVER, FRAME REAR LH (BLACK)

47510-18K30-YVB   4751018K30YVB

4751018K30YVB
Not available
8
.EMBLEM, "SV" (WHITE)

68111-18K00-YWW   6811118K00YWW

6811118K00YWW
Not available
9
.TAPE, FRAME COVER LH (BLUE/BLACK)

68145-18K20-BBD   6814518K20BBD

6814518K20BBD
Not available
10
BOLT
BOLT (5X13)

09139-05074-000   0913905074000

0913905074000

Unit Price

11
SPACER (8.5X12X2.5)

09180-08052-000   0918008052000

0918008052000

Unit Price

12
CLIP
CLIP

09409-06314-000   0940906314000

0940906314000

Unit Price

13
BOLT
BOLT

01550-0812A-000  

01550-0812B-000
 015500812A000

Unit Price

14
SCREW
SCREW

03541-0510A-000   035410510A000

035410510A000

Unit Price

15
CUSHION, SIDE COVER

09329-14002-000  

09329-14003-000
 0932914002000

Unit Price

16
PROTECTOR(50X50X5)<br />CUSHION
PROTECTOR(50X50X5)
CUSHION

33652-20C00-000   3365220C00000

3365220C00000

Unit Price

17
TAPE, FRAME COVER RR CTR
TAPE, FRAME COVER REAR CENTER

47312-18K00-000   4731218K00000

4731218K00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
